Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines
Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines
Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines
Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines
Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines
Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines
Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines
Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines
Specifications
Brand Name :
KE FEI TE
Model Number :
UGEFP
Certification :
ISO9001
Place of Origin :
CHONGQING,China
MOQ :
100 meters
Price :
$20.87-32.35/meters
Payment Terms :
L/C,D/P,D/A,T/T,Western Union,MoneyGram
Delivery Time :
4-12DAYS
Packaging Details :
wooden drum，wooden pallet,plastic pallet,woven bag
Product Name :
High Voltage Flexible Rubber Shield Machine Electric Cable
place of origin :
China,Chongqing
brand name :
KE FEI TE
model number :
UGEFP
Cable type :
Flexible Rubber Shield Tunneling Machine cable
feature :
Explosion-proof,oil resistant,wear resistant, waterproof, Flexible,Mobile ,Corrosion resistant
application :
Power transmission for shield machine and mining equipment
MOQ :
100 meters
Voltage :
8.7/15KV,12/20KV
Conductor :
Tinned Copper
Sheath :
CPE(Chlorinated polyethylene)
Insulation :
EPDM
IInsulation Shield :
Rubber-type Semiconductive Outer Shielding
Filler :
Thermoplastic elastomer
Packing :
Wooden drum,wooden pallet,plastic pallet,woven bag or as customer's requiments
Description

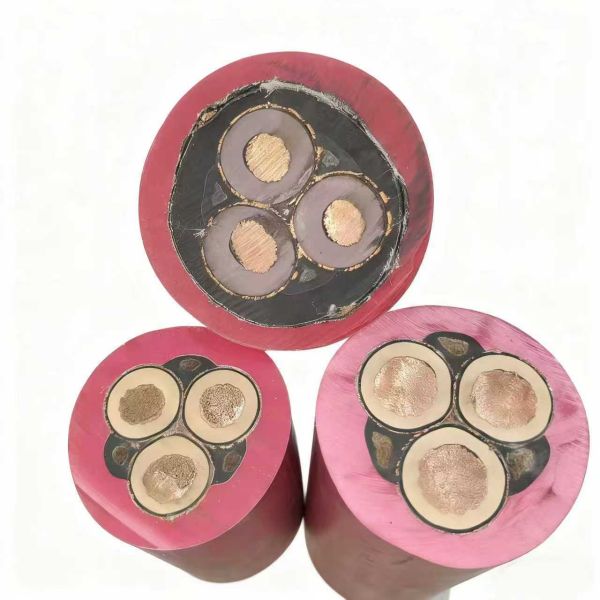

Waterproof 8.7/15KV 12/20KV EPDM Insulation Tinned Copper Conductor Mobile Rubber Flexible Power Cable Wire for Shield Tunneling Machine in Open-pit Mines
UGEFP cables are high voltage rubber sheathed flexible cables designed for shield machines in open-pit mines,which feature wear resistance, oil resistance, cold resistance, water resistance, corrosion resistance and so on. They are suitable for harsh construction environments. They are mainly applied to heavy equipment in open-pit mines and underground tunneling operations rated at 8.7/15kV or below, such as shield tunneling machines. Also applicable for tunnel projects in subways, railways, highways, hydropower facilities and so on.

Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines

Product Quick Details

  • Rated power frequency voltage U0/U: 8.7/15KV,12/20KV
  • Conductor: Stranded Tinned fine copper wire conductor with excellent electrical conductivity and flexibility
  • Insulation: The power conductor insulation utilizes EPDM rubber, offering excellent electrical insulation properties, heat resistance, and aging resistance; the ground conductor core is made of semiconductive rubber to ensure grounding safety.
  • Insulation Shield: Rubber-type semiconductive outer shielding effectively evens out the electric field and prevents partial discharge.
  • Outer Sheath: CPE(Chlorinated polyethylene),features high abrasion resistance, oil resistance, cold resistance, high-temperature resistance, water resistance, and corrosion resistance
  • Operating temperature range: -35°C to 65°C
  • Maximum operating temperature of conductor: +75°C
  • Minimum bending radius exceeds 6 times cable diameter
  • Tinned copper conductor prevents oxidation and improves conductivity
  • Features: Flexible, waterproof, tensile resistant, explosion-proof, oil-resistant, corrosion-resistant, high abrasion resistance
Technical Specifications
No Item Data
1 Product Name High Voltage Flexible Rubber Shield Tunneling Machine Cable in Open-pit Mines
2 Power Core Insulation EPDM Rubber
3 Ground wire core Insulation Semiconductive rubber
4 Sheath CPE
5 Voltage 8.7/15KV,12/20kv
6 Conductor Operation Temperature -35℃~+65℃
7 Insulation Shield Rubber-type Semiconductive Outer Shielding
8 Conductor Tinned Copper
9 Filler Thermoplastic elastomer
10 Feature Wear resistant, oil resistant, tensile resistant, waterproof, Corrosion resistant,Flexible
11 Application Power connections in distribution networks for systems such as shield machines and mining equipment
12 Product Model UGEFP
Application Scenarios
  • Shield Machine Operations: Provides stable power supply to the cutterhead and propulsion system of shield machines, while also transmitting control signals.
  • Mining Operations: Power supply for heavy equipment like excavators and loaders, plus underground power transmission in mines.
  • Subway Construction: Power supply for tunnel boring machines, plus electricity for lighting, ventilation, and other equipment in subway stations and tunnels.
  • Distribution Networks for Similar Equipment Systems: Power distribution and signal transmission for equipment like port machinery and cranes.
Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines
Product Advantage
  • High Abrasion Resistance: The outer sheath withstands prolonged friction from minerals and other materials without damage.
  • Torsion Resistance: Strong resistance to twisting prevents deformation and sheath cracking.
  • Water resistance, corrosion resistance: Maintains stable performance in environments containing water or corrosive liquids.
Company Profile
Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines
Chongqing Kefei Cable Group Co., Ltd
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cable for 40 years. As a large cable manufacturing enterprise, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements. Our products are globally distributed and widely used in coal mines, power stations, and transportation sectors, recognized for excellent quality and after-sales service.
Our Advantages
  • Advanced Technology
  • High Quality Design
  • Perfect Testing Equipment
  • Strict Quality Control
  • Mature Process Flow
Production Equipment

Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines

Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines


Exhibition

Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines


Certification

Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines

Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines


Packing & Delivery
Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines

Explosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit MinesExplosion Proof Oil Resistant High Voltage Power Cable For Shield Machine In Open Pit Mines

FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
