0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
Specifications
Brand Name :
Ke Fei Te
Model Number :
MYP
Certification :
MA/ISO9001
Place of Origin :
Chongqing, China
MOQ :
500 meters
Price :
$1.99-108.30/meters
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,MoneyGram
Delivery Time :
5-15days
Packaging Details :
wooden drum，wooden pallet，plastic pallet，woven bag
Working Temperature :
70°C
Rated Voltage :
0.66/1.14KV
Rated Current :
Depends on the thickness of the conductor
Insulation Material :
Rubber
Type :
LOW VOLTAGE
Application :
Mining, Undergroud Coal Mine
Conductor Material :
Copper
Jacket :
Rubber
Size :
Customized
Product Name :
Rubber Mining Cable
Shape :
round wire
Feature :
flame retardant, fire-resistance,wear-resistant,explosion-proof
Conductor :
Tinned Copper
Insulation :
Rubber Insulation
Sheath :
Rubber Sheath
Rated voltage :
0.38/0.66kv
Core :
3+1
Package :
Wooden Drum Package
Certificate :
ISO9001/CCC/CE
Description

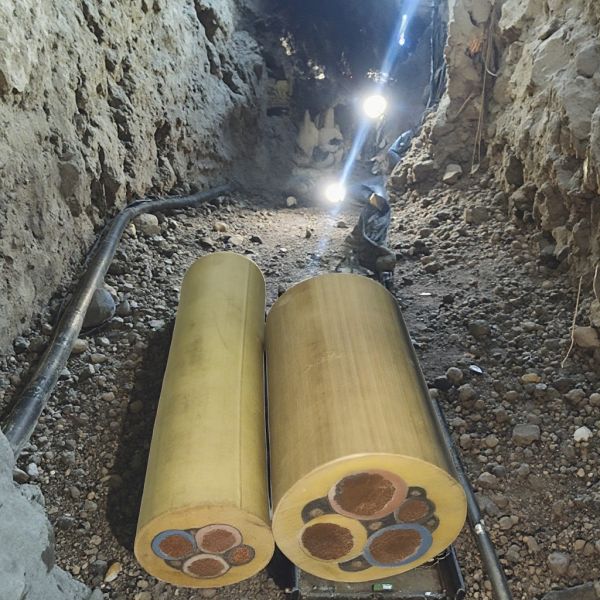

0.66/1.14KV Stranded Copper Conductor EPR Insulation Rubber Sheathed Waterproof Underground Coal Mining Power Cable

MYP cable is a type of mobile shielded rubber flexible cable specifically designed for use in the harsh underground environment of coal mines. It composed of a stranded copper core conductor, EPR insulation, a semiconductive tape insulation shielding layer and a rubber sheath.It features flexibility, water resistance, oil resistance, and explosion-proof properties, and is suitable for applications where frequent movement is required.

Product Quick Details
  • Conductor: Stranded Copper Core/Tinned Copper Core, features flexibility and bending resistance
  • Insulation: EPR (Ethylene Propylene Rubber) for durability
  • Sheath: High-quality Rubber for protection
  • Configuration: 3+1 Cores (3 power cores+1 earth cores)
  • Voltage Rating: 0.66/1.14KV
  • Temperature Range: -30°C to +70°C (90℃ max)
  • Special Features: Waterproof, Flexible, Explosion-proof, Oil-resistant, Corrosion-resistant
  • Excellent electrical performance and superior mechanical properties

0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof


Flexible Non-metallic shield Coal Mining Rubber Cable

The MYP model cable is used for the power connection of various underground mobile mining equipment. This cable is made of stranded fine copper wire, rubber sheath and rubber insulation, so it's flexible and soft cable. It is for rated voltage Uo/U 0.38/0.66 used in coal mining machines installation equipment to connect power supply. It can be shifted as you like.


Operating characteristics:


1.The rated power frequency voltage U0/U: 0.38/0.66KV, 0.66/1.14KV
2.Permissible operating temperature:-35°C to 65°C.
3.The mininm bending radius is over 6times of cable diameter
4.The yellow sheath cable should not be exposed in the sun for long

0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
Specification
Product Name Rubber Mining Cable
Brand Ke Fei Te
Model MYP
Conductor Material Copper
Insulation Material Rubber
Jacket Rubber
Color Yellow/Black
Shape Round wire
Feature Flame retardant, fire-resistance, wear-resistant, explosion-proof, waterproof, oil resistance to acid and alkali resistant
Company Profile
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof

Chongqing Kefei Cable Group Co., Ltd.

Chongqing Kefei Cable Group Co., Ltd., focus on R & D and production of rubber cable for 40 years, it is a large enterprise specializing in the production of cables. Our company is committed to the production of various specifications of electrical cables, products covering mining cables, rubber sheath cable series, shield machine special high voltage cable and other series. Especially the flexible cable series, has more than 20 years of exquisite skills, can be customized according to customer requirements of all kinds of special cables.

Our products are sold all over the world, widely used in various fields, such as coal mine, power station, transportation and so on, with excellent quality and excellent after-sales service favored by domestic and foreign customers.

Our Advantages
  • Advanced Technology
  • High Quality Design
  • Perfect Testing Equipment
  • Strict Quality Control
  • Mature Process Flow
Production Equipment
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
Exhibition
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
Certifications
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
Packing & Delivery
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof
0.66/1.14KV EPR Insulation Mining Electrical Cable Explosion Proof

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer, We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
