Wear-resistant Composite Pipe for Mining
Wear-resistant Composite Pipe for Mining
Wear-resistant Composite Pipe for Mining
Wear-resistant Composite Pipe for Mining
Wear-resistant Composite Pipe for Mining
Wear-resistant Composite Pipe for Mining
Specifications
Brand Name :
TLHT
Certification :
API 15S
Place of Origin :
China
MOQ :
1000m
Price :
Customized
Payment Terms :
T/T
Nominal pressure :
1.6MPa-32MPa
Continuous coil wear-resistant pipe specification and model :
DN50mm-DN250mm;
Wear-resistant layer :
POE
Description

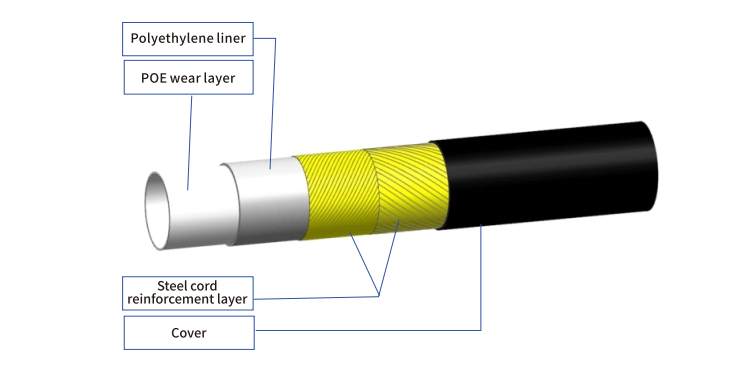

Wear-resistant composite pipes have a multi-layer structure. From the inside out, they are mainly composed of a wear-resistant inner layer, a steel cord reinforcing layer, and an outer protective layer. The reinforcing layer of the pipe body forms an integral pipe wall structure that cannot move relatively with adjacent layers through fusion or bonding. A typical structure is shown in the figure.
When used for trenchless pipeline repair or in large-slope laying conditions, pre-impregnated tape materials can be wound at a certain Angle or axially accompanied on the surface of the reinforcing layer to increase the tensile strength of the wear-resistant composite pipe.
Continuous coil wear-resistant pipe specification and model :DN50mm-DN225mm;
Nominal pressure :1.6MPa-32MPa
Specification and model of fixed-length wear-resistant pipe :DN250mm-DN900mm;
Nominal pressure :1.6MPa-12MPa
