Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Specifications
VSWR :
≤2
Size :
108 x 30 x 7.5
Gain :
3.0
Place of Origin :
CN
Certification :
CE ROHS
Polarization :
Vertical
Supply Ability :
500000pcs/month
Brand Name :
Hing
Packaging Details :
1set/box
Connector :
SMA
Frequency Range :
858-878
Payment Terms :
T/T,L/C,D/P,D/A,Western Union
Delivery Time :
30-40 days
MOQ :
50
Product Name :
Lora And Communication Antenna
Description

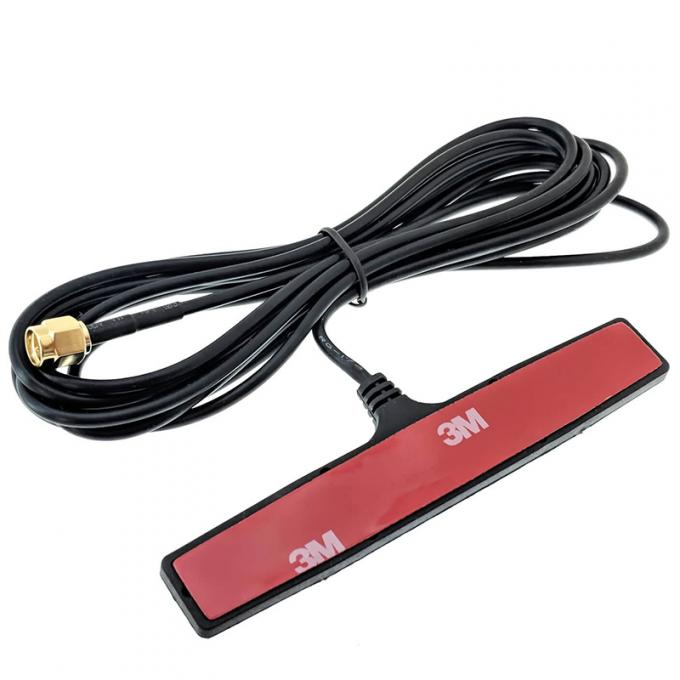

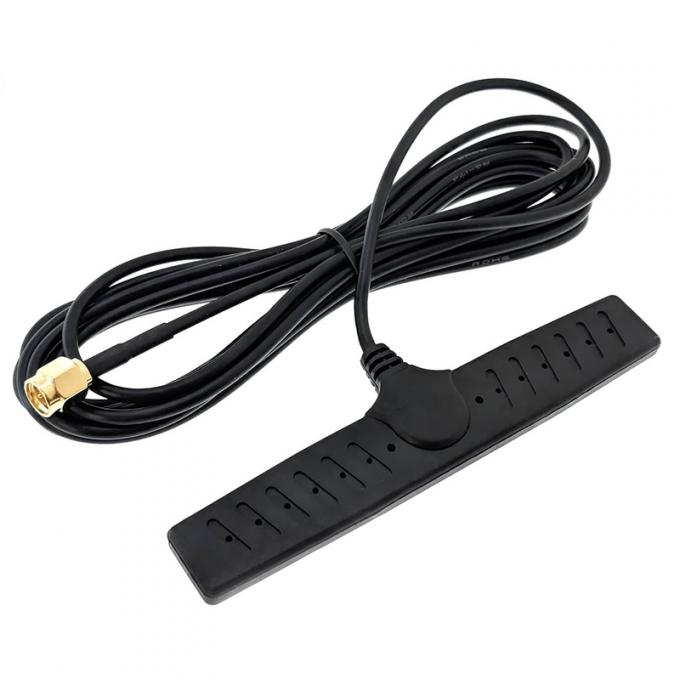

Outdoor Waterproof LoRa 868MHz antenna Omni-Directional SMA Male 600-6000Mhz 3g 4g 5g Long Range Sticker antennas HT-F032
Company Introduction

Shenzhen Hing Technology Co., Ltd was established in 2016. The company is an original manufacturer of Beidou positioning GPS modules and GPS antennas, Communication Antenna etc. integrating research and development, production, and sales.

The company is located in Shenzhen, Guangdong, covering an area of approximately 6000 square meters.

Products include: GPS antenna, GNSS antenna, RTK antenna, Beisan RDSS antenna, GPS module, GNSS module, board, GNSS receiver, Beidou module. OEM/ODM high-end customized service to meet the requirements of different customers

Outdoor Waterproof LoRa 868MHz antenna Omni-Directional SMA Male 600-6000Mhz 3g 4g 5g Long Range Sticker antennas

Peculiarity

● external 868MHz Omni-Directional SMA antenna,To be used in wide range of LoRa / Sigfox / ISM applications, like smart energy meters, home security, waste management, etc.

● comes with 3m length cable and SMA Male type connector. 3M Industrial Adhesive at the back of antenna makes it convenient to stick it at some suitable place.
Specification:
● Frequency(MHz):858-878
● VSWR : ≤2
● Gain(dBi): 3.0
● Max Input power(W):50
● Input Impedance(Ω):50
● Polarization: Vertical

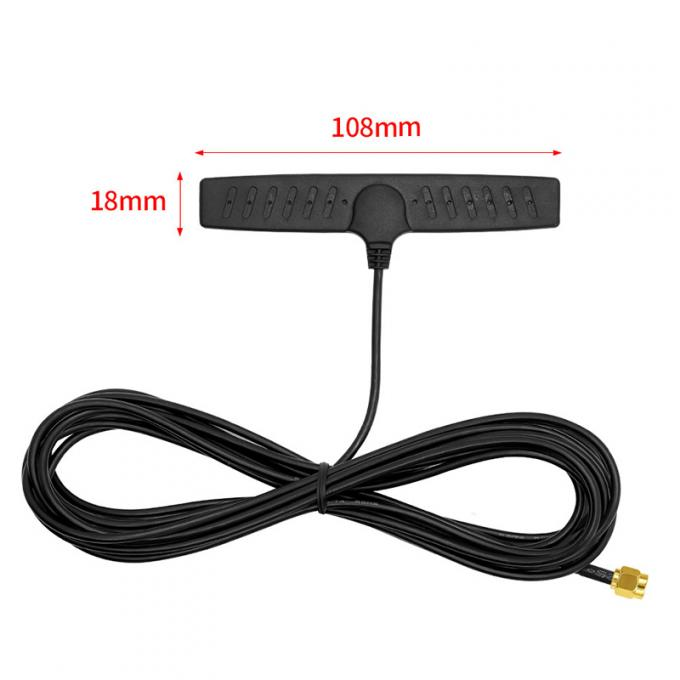

● Antenna Length(mm): 108 x 30 x 7.5
● Cable Length(m/ft): 3/9.8
● Cable Type: RG174
● Connector: SMA
● Mounting: Adhesive
● Working Temp:-40℃~+85℃
● Storage Temp:-45℃~+100℃
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Outdoor Waterproof LoRa 868MHz Antenna Omni Directional 600-6000Mhz 3g 4g 5g Long Range
Frequently Asked Questions
Do you offer samples?
Yes, we offer samples for testing.
What's your MOQ?
Our MOQ is 500pcs, the first order is negotiable.
How do you test your products?
We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas' VSWR, Impedance, Smith Chart and Frequency in the simulation environment. And conducting instrument to test the cable.
Do you make OEM products?
Yes, we can do.
Do you have RoHS certification?
We can do RoHS certification according to customers' requirements. The customers need to charge the handing fee. Or we can provide customers the SGS report of the material for free.
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained & experienced sales can reply your inquiries in English
  • During working time, E-mail will be replied to you within 2 hours
  • OEM & ODM projects are highly welcomed, we have strong R&D team
  • The order will be produced exactly according to order details and proofed samples, our QC will submit inspection report before shipment
  • Your business relationship with us will be confidential to any third party
  • Good after-sale service
