Customized High Gain GNSS Antenna Magnetic Mount For GPS And GLONASS Systems
Customized High Gain GNSS Antenna Magnetic Mount For GPS And GLONASS Systems
Specifications
Model Number :
BN-143AJ
Supply Ability :
50000pcs/month
Brand Name :
Hing
Polarization :
RHCP
Impedance :
50 Ohm
MOQ :
50
Weight :
Lightweight
Payment Terms :
T/T
Delivery Time :
30-40 days
Certification :
CE
Place of Origin :
CN
Working Band :
L1/L2/L5
Phase Center Error :
≤3mm
Packaging Details :
1set/box
Frequency :
GPS/BeiDou/GLONASS/Galileo
Description

Hing can customize GNSS dual-mode high-gain FAKRA vehicle SMA universal external GPS antenna BN-143AJ

Shenzhen Hing Technology Co., Ltd was established in 2016. The company is an original manufacturer of Beidou positioning GPS modules and GPS antennas, integrating research and development, production, and sales. The company is located in Shenzhen, Guangdong, covering an area of approximately 6000 square meters. Products include: GPS antenna, GNSS antenna, RTK antenna, Beisan RDSS antenna, GPS module, GNSS module, board, GNSS receiver, Beidou module.

Table of parameters:

1．Characteristics of Ceramic Antenna

Item

Specification

Range Of Receiving Frequency

GPS L1:1575.42MHz

GLONASS L1:1602MHZ

Gain

2dBi

Output VSWR

<1.5

Impendance

50Ω

Polarization

RHCP

Axis ratio

<3dB

Horizontal coverage angle

360°

Frequency Temperature Coefficient

0±10

2．LNA Specification

Item

Specification

LNA Gain

28±2dB

Noise figure

<2dB(Only LNA)

Output VSWR

<1.5

Output impedence

50Ω

Passband Ripple

±2.0dB(Only LNA)

Supply Voltage

2.8V-5.0V

Supply Current

≤20mA

3．Work environment

Item

Specification

Operational Temperature

-40℃ - +85℃

Storage Temperature

-40℃ - +85℃

Wet degree

40% - 95%

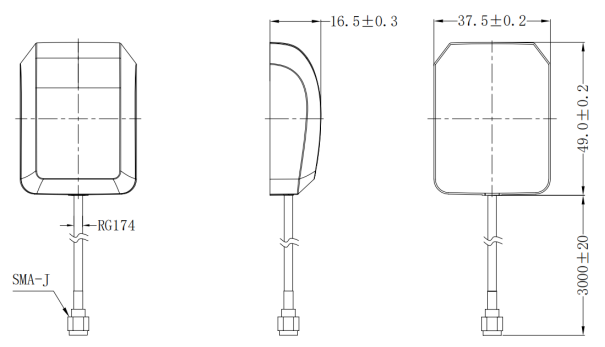

4．Structural characteristics

Item

Specification

Size

49*37.5*16.5mm

Weight

＜105g

Mounting

Magnetic Bottom

Connector

SMA-J

Cable

RG174

Length

3m
