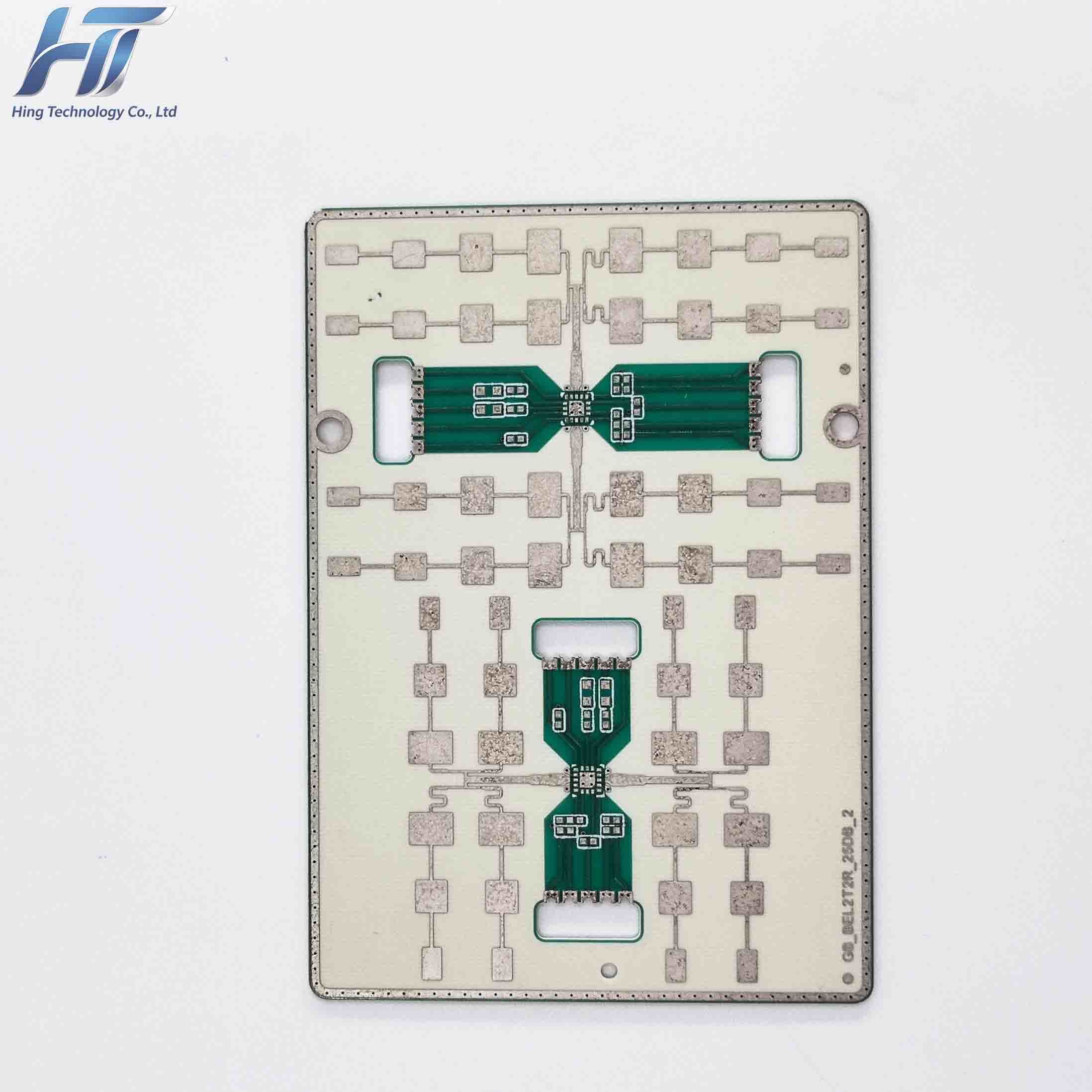

High Frequency Antenna PCB Board 0.762mm Thickness With Hydrocarbon Resin Substrate
High Frequency Antenna PCB Board 0.762mm Thickness With Hydrocarbon Resin Substrate
High Frequency Antenna PCB Board 0.762mm Thickness With Hydrocarbon Resin Substrate
High Frequency Antenna PCB Board 0.762mm Thickness With Hydrocarbon Resin Substrate
High Frequency Antenna PCB Board 0.762mm Thickness With Hydrocarbon Resin Substrate
High Frequency Antenna PCB Board 0.762mm Thickness With Hydrocarbon Resin Substrate
Specifications
Payment Terms :
T/T,L/C,D/P,D/A
Dielectric constant :
3.48
Supply Ability :
500000pcs/month
Certification :
CE ROHS
Item No :
HT-014
Packaging Details :
1set/box
Delivery Time :
30-40 days
Place of Origin :
CN
working Temp. :
-40~+85
MOQ :
50
Thickness :
0.762 MM
Brand Name :
Hing
Product Name :
High-frequency PCB antenna board with hydrocarbon resin substrate
Description
High-frequency PCB antenna board with hydrocarbon resin substrate High-frequency connectors for vehicle-mounted radar, V2X communication modules, and smart cockpits PCB

Shenzhen Hing Technology Co., Ltd was established in 2016. The company is an original manufacturer of Beidou positioning GPS modules and GPS antennas, Communication Antenna etc. integrating research and development, production, and sales.

The company is located in Shenzhen, Guangdong, covering an area of approximately 6000 square meters.

Products include: GPS antenna, GNSS antenna, RTK antenna, Beisan RDSS antenna, GPS module, GNSS module, board, GNSS receiver, Beidou module and pcb OEM/ODM high-end customized service to meet the requirements of different customers

High Frequency Antenna PCB Board 0.762mm Thickness With Hydrocarbon Resin Substrate

Material:Hydrocarbon resin substrate

Thickness:0.762 mm

Layer:2

Dielectric constant:3.48

PAD Processing:osp

DF:0.0009

Min hole:0.2mm

application: 5G communication base station: used for manufacturing base station antenna arrays, filters, and power amplifier modules, supporting high-frequency band and stable signal transmission and reception.
Satellite Communication and GPS System: Automotive Electronics: High frequency connectors used in onboard radar, V2X communication modules, and intelligent cockpits to meet the low latency and high reliability requirements of autonomous driving.

High Frequency Antenna PCB Board 0.762mm Thickness With Hydrocarbon Resin Substrate
High Frequency Antenna PCB Board 0.762mm Thickness With Hydrocarbon Resin Substrate
Frequently Asked Questions
Do you offer samples?
Yes, we offer samples for testing.
What's your MOQ?
Our MOQ is 500pcs, the first order is negotiable.
How do you test your products?
We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas' VSWR, Impedance, Smith Chart and Frequency in the simulation environment. And conducting instrument to test the cable.
Do you make OEM products?
Yes, we can do.
Do you have RoHS certification?
We can do RoHS certification according to customers' requirements. The customers need to charge the handing fee. Or we can provide customers the SGS report of the material for free.
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained & experienced sales can reply your inquiries in English
  • During working time, E-mail will be replied to you within 2 hours
  • OEM & ODM projects are highly welcomed, we have strong R&D team
  • The order will be produced exactly according to order details and proofed samples, our QC will submit inspection report before shipment
  • Your business relationship with us will be confidential to any third party
  • Good after-sale service
