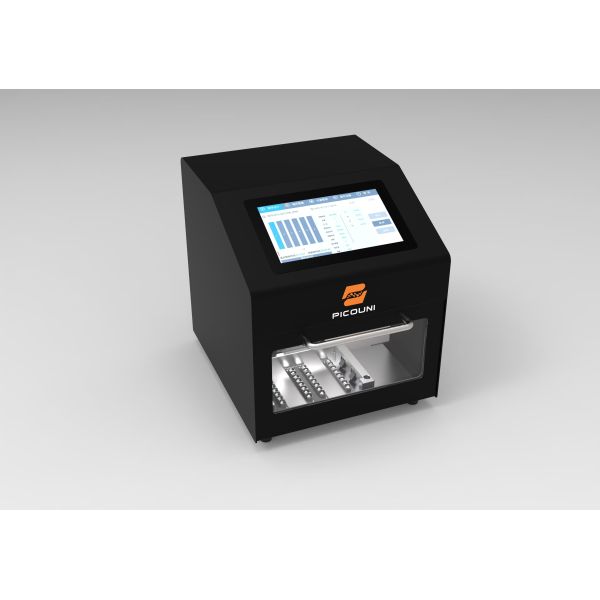

Nucleic Acid Extractor，Magnetic Bead，based Open Platform with UV Decontamination
Nucleic Acid Extractor，Magnetic Bead，based Open Platform with UV Decontamination
Specifications
Brand Name :
PICOUNI (Chengdu) Biological Products Co., Ltd. Nucleic Acid Extractor
Model Number :
P16
MOQ :
10 sets
Price :
$1000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
8-10 work days
Model :
P16
Processing Volume :
30–1000 μL
Sample Throughput :
1–16 samples
Magnetic Bead Recovery Efficiency :
≥98%
Number of Magnetic Rods :
16
Processing Time :
10–40 min (depending on reagents used)
Description
No. Parameter Specification
1 Product Name Nucleic Acid Extraction System
2 Model P16
3 Processing Volume 30–1000 μL
4 Sample Throughput 1–16 samples
5 Magnetic Bead Recovery Efficiency ≥98%
6 Number of Magnetic Rods 16
7 Processing Time 10–40 min (depending on reagents used)
8 Display 7-inch color LCD touchscreen
9 Noise Level ≤65 dB
10 Well-to-Well Variation (CV) CV < 5%
11 Consumables 96-well deep-well plates
12 Heating Temperature Range Ambient to 120 °C
13 Mixing Mode Multi-level adjustable shaking
14 Reagent Compatibility Magnetic bead–based open platform
15 User Interface Android-based touchscreen interface (Chinese / English)
16 Program Management Program creation, editing, and deletion supported
17 Program Storage Capacity >500 internal programs
18 Expansion Interfaces 1 × USB port, 1 × Ethernet port
19 LED Illumination Yes
20 Contamination Control Integrated UV decontamination
21 Power Supply AC 198–242 V, 50/60 Hz, 150 W
22 Operating Environment Temperature: 5–40 °C; Humidity: ≤80%
23 Weight 12 kg
24 Dimensions (W × D × H) 250 × 320 × 275 mm (fits inside a biosafety cabinet)
25 Exhaust Method Fan-assisted air exhaust
