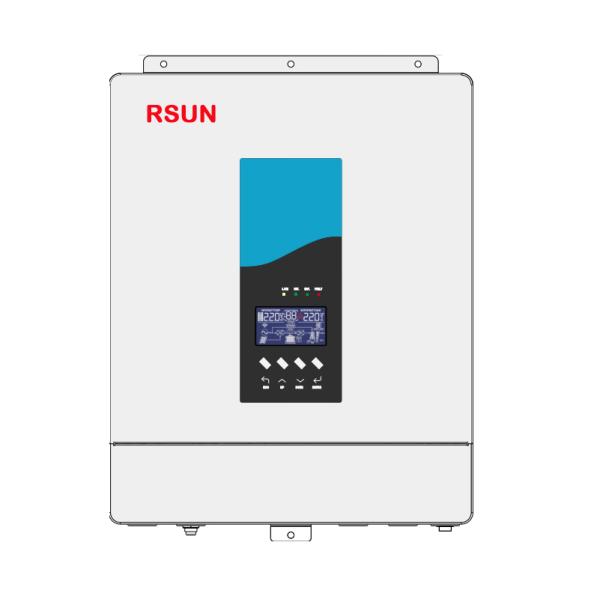

Pure Sine Wave Hybrid Mppt Solar Inverter 3.6KW 6.2KW 11KW 10KW LCD Display WIFI
Pure Sine Wave Hybrid Mppt Solar Inverter 3.6KW 6.2KW 11KW 10KW LCD Display WIFI
Pure Sine Wave Hybrid Mppt Solar Inverter 3.6KW 6.2KW 11KW 10KW LCD Display WIFI
Pure Sine Wave Hybrid Mppt Solar Inverter 3.6KW 6.2KW 11KW 10KW LCD Display WIFI
Pure Sine Wave Hybrid Mppt Solar Inverter 3.6KW 6.2KW 11KW 10KW LCD Display WIFI
Pure Sine Wave Hybrid Mppt Solar Inverter 3.6KW 6.2KW 11KW 10KW LCD Display WIFI
Specifications
Brand Name :
RSUN or OEM
Model Number :
PY3 series
Place of Origin :
China
MOQ :
50PCS
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
30 days
Packaging Details :
Cartons
Type :
hybrid off grid solar inverter
Capacity :
1.2KW 3.6KW 6.2KW 11KW
Output voltage :
208/220/230/240VAC
Battery type :
Li-ion battery / Lead-acid battery
Max AC Charging :
60A - 120A
Wave form :
Pure Sine Wave
Solar Charger Type :
MPPT
Display :
LCD
Color :
Black, white
Protection :
Overload,Overvoltage,Short Circuit,discharge,over temperature
Description

Hybrid Mppt Solar Inverter 3.6KW 6.2KW 11KW 10kw Hybrid Solar Inverter Off Grid Hybrid Solar Inverter, Wall Mounted, WIFI, Bluetooth

Engineered for efficient off-grid energy use, the Smart PY3 Series combines a pure sine wave inverter and a high-efficiency MPPT charge controller into a compact, wall-mounted unit. It supports wide PV input voltage, enabling direct solar-to-load operation without batteries in optimal sunlight conditions. The built-in intelligent MPPT algorithm and battery management system enhance energy capture and storage reliability. Ideal for hybrid setups, the PY3 inverter intelligently balances power from solar panels, batteries, and utility sources, ensuring stable output for critical household and commercial equipment, including computers, appliances, and tools.

FEATURES:

• Smart dual-output design
• 500V wide PV input, supports battery-free use
• Pure sine wave output for sensitive devices
• Integrated MPPT controller
• Adjustable AC/solar priority
• Multiple safety protections
• Seamless auto-restart
• Optional remote monitoring via app

SPECIFICATIONS:

MODEL PY3-1.2K PY3-3.6K PY3-6.2K PY3-11K
Rated Capacity 1200VA/1200W 3600VA/3600W 6200VA/6200W 11000VA/11000W
Peak Efficiency (Battery Mode)
≥90.5%
 ≥92.7% ≥94% ≥93%
AC INPUT
Input Format L+N+PE
Rated Input Voltage 208/220/230/240VAC
Max AC Charging 60A 100A 120A 120A
Voltage Range 170~264VAC(UPS MODE); 90~280VAC(For Home Appliances)
Frequency Range 50Hz/60Hz(Auto Sensing)
OUTPUT
Output Format L+N+PE
Rated Output Voltage 208/220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Waveform Pure Sine Wave
Transfer Time 10ms(For Personal Computers),10ms(For Home Appliances)
Overload Capacity Battery Mode: 1min@102%~110% Load 10s@110%~130%Load
3s@130%~150% Load 200ms@>150% Load
BATTERY
Type Li-ion/Lead-acid Li-ion/Lead-acid Li-ion/Lead-acid Li-ion/Lead-acid
Rated Voltage 12 VDC 24 VDC 48 VDC 48 VDC
Constant Charging Voltage (Can Be Set) 14.1 VDC 28.2 VDC 56.4 VDC 56.4 VDC
Float Charging Voltage (Can Be Set) 13.5 VDC 27 VDC 54 VDC 54 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT MPPT MPPT MPPT
PV Maximum Input Power 1000W 5000W 9000W 10000W
MPPT Tracking Range 20~100 VDC 40~450 VDC 60~450 VDC 60~500 VDC
Maximum PV Input Voltage 125 VDC 500 VDC 500 VDC 500 VDC
Maximum PV Input Current 14 A 18 A 27 A 18A*2
Maximum PV Charging Current 60 A 100 A 120 A 160 A
Maximum Charging Current 120 A 100 A 120 A 160 A
COMMUNICATION INTERFACE RS485 STANDARD RS485/232/USB/Dry Contact RS485/232/USB/Dry Contact RS485/232/USB/Dry Contact
Expansion Slot Communication Interface WIFI Optional
Environmental Parameters
Operating Ambient Temperature 0~40℃
Operating Environment Humidity 20%~95%(Non-Condensing)
Storage Temperature -15~60℃
Altitude Altitude Should Not Exceed 1000m, Derating Above 1000m, Maximum 4000m, Refer to IEC62040
Noise ≤50db
PHYSICAL PARAMETERS
D×W×H(mm) 330 x 228 x 90
280 x 350 x136
 310 x 420 x 136 540 x 415 x 122
Weight (for Reference) 3.2 6.6kg 8kg 15.5kg

APPLICATIONS:

Suitable for a wide range of residential, commercial, and light industrial equipment:
• Home Appliances: air conditioners, refrigerators, washing machines, LED/fluorescent/incandescent lighting, LCD TVs, electric fans, rice cookers, kettles, microwaves, ovens, induction cookers, etc.
• Power Tools: drills, jigsaws, grinders, sanders, buffers, and other handheld tools
• Office Equipment: desktop computers, monitors, inkjet/laser printers, fax machines, and other peripherals

The image below illustrates the usage example:

Pure Sine Wave Hybrid Mppt Solar Inverter 3.6KW 6.2KW 11KW 10KW LCD Display WIFI

Professional Service Overview:

1. Sample Availability
We offer product samples for quality verification and market evaluation purposes, allowing clients to test performance before placing bulk orders.

2. Product Warranty
RSUN provides a comprehensive warranty for its product range, including Uninterruptible Power Supplies (UPS), solar inverters (12V/24V/48V), and solar charge controllers. Our warranty covers manufacturing defects and material faults under normal operating conditions.

3. OEM/ODM Capability
RSUN delivers OEM/ODM services under strict compliance with ISO9001 & ISO14001 quality management standards. Our cross-functional collaboration across Sales, R&D, Procurement, Production, and QA ensures high product consistency, flexible customization, and reliable delivery. Trusted by global partners for over 12 years.
