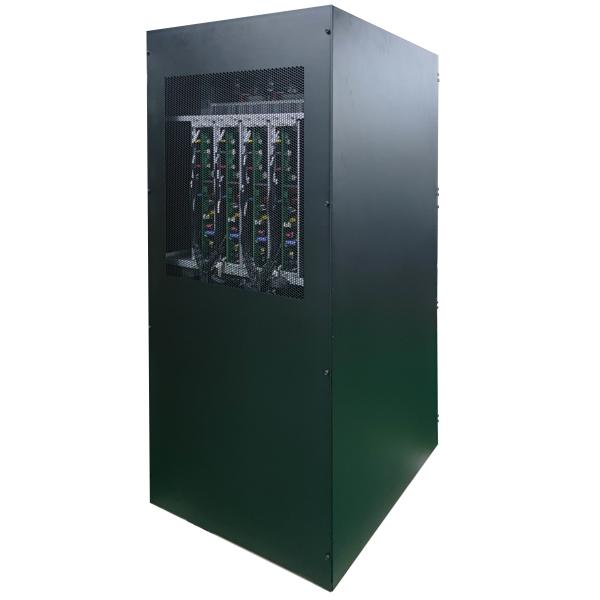

100KW 208V 3 Phase UPS 100 Kva Online UPS DSP For Telecom Self Load Test Function
100KW 208V 3 Phase UPS 100 Kva Online UPS DSP For Telecom Self Load Test Function
100KW 208V 3 Phase UPS 100 Kva Online UPS DSP For Telecom Self Load Test Function
100KW 208V 3 Phase UPS 100 Kva Online UPS DSP For Telecom Self Load Test Function
Specifications
Brand Name :
RSUN or OEM service
Model Number :
DT33-100K
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10,000PCS per month
Delivery Time :
25 working days
Packaging Details :
Wooden box
UPS Type :
3 Phase UPS
Capacity :
100KVA 100KW
Rated Voltage :
304Vac ～ 478Vac, 304Vac ～ 228Vac
Output Voltage :
380/400/415Vac (3phase+N)
Voltage Accuracy :
±1％@balanced load；±5％@unbalanced
THD :
≤2％ (100% linear load)；≤4％ (nonlinear load)
Efficiency :
Inverter mode ≥95%, ECO Mode ≥99%
Battery :
32; 30 ~ 44(±15~±22)(settable)
UPS color :
Black
Description

UPS 100kva UPS DSP For Telecom 208v 3 Phase Ups 100kva Online UPS 100KW self-load test function

KEY FEATURES:
• Online double-conversion ensures zero-interruption protection
• DSP-based control for precise and reliable performance
• High input PF (≤ 0.99) with active PFC
• User-configurable battery quantity (±16 - 20 units)
• Supports 1- 4 units in parallel with shared battery bank
• Smart 3-stage charging: constant current, voltage, and float
• Dual LED/LCD interface for real-time system monitoring
• Integrated maintenance bypass for non-stop servicing
• Tolerates 3-phase unbalanced loads
• RS-232 standard; SNMP optional
• EPO for immediate emergency shutdown

DESCRIPTIONS:

The RSUN DT33 Series is an advanced three-phase UPS with true online double-conversion, engineered for demanding power environments. With built-in power factor correction, it achieves up to 0.99 input PF, maximizing efficiency and minimizing upstream impact.

Its compact high-density design saves space, while digital DSP control enhances system accuracy, reliability, and self-protection.

The DT33 safeguards critical loads from power disturbances such as surges, sags, transients, harmonics, and frequency variation, delivering stable, clean power without interruption.

SPECIFICATIONS:

Model DT33-10K DT33-20K DT33-30K DT33-40K DT33-50K DT33-60K DT33-80K DT33-100K DT33-120K DT33-160K DT33-200K
Capacity 10kVA 20kVA 30kVA 40kVA 50kVA 60kVA 80kVA 100kVA 120kVA 160kVA 200kVA
Input
Rated Voltage 380Vac (3 phase+N)
Voltage Range 304Vac ～ 478Vac (line voltage) full load； 304Vac ～ 228Vac (line voltage) load derated linearly from100% to 80%
Frequency Range 40Hz ~ 70 Hz
Power Factor ≥ 0.99@100% load；≥ 0.98@50% load
THDi ＜3％ (100% linear load) ; ＜5％ (100%nonlinear load)
Output
Output Voltage 380/400/415Vac (3phase+N)；
Voltage Accuracy ±1％@balanced load；±5％@unbalanced
THDu ≤2％ (100% linear load)；≤4％ (nonlinear load)
Power Factor 0.9 (1 optional)
Frequency Range ±2Hz(settable)；±0.5Hz,±1Hz,±3Hz(settable) (Synchronizing Range)
Frequency Range 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz (Battery Mode)
Overload ＜ 105％, long run; ＜ 110％, 60 min; 110～125％ rated load, load 10 min; ＞125～150％ rated load, load1 min; ＞150％, 200ms
Crest Factor 3:1 (maximum)
Switching Time 0 ms (Main power Battery)
1 ms (phase lock failure, <2ms interrupt occurs) (Inverter Bypass)
< 2 ms (Inverter ECO)
Efficiency
Inverter Mode ≥95%
ECO Mode ≥99%
Battery
Number Long backup 32; 30 ~ 44(±15~±22)(settable)
Standard backup (30~60)x7AH/9AH (60~80)x7AH/9AH NA
Charging Current Capacity* 15%/N/12(N=±15-22)
Charging Voltage ± 13.65Vdc * N ± 1%(N=±15-22)
Physical
Long backup Size (mm) 280 x 685 x 725 425 x 780 x 1200 600 x 800 x 1600 600 x 960
x 1600		 600 x 1010
x 2000
Net Weight(kg) 45 108 230 310 360 460
Standard backup Size WxDxH(mm) 400 x 685 x 1000 425 x 780 x 1580 NA
Net Weight(kg) 62 (w/o battery) 135 (w/o battery) NA
Environment
Working Temperature 0 ~ 40°C battery life will be shorten when temperature > 25°C
Relative Humidity 0~95% no condensation
Altitude 1000 meters no derate, ＞ 1000 meters derating 1% for every 100 meters rise
Noise ≤ 60dB (A)@ 1 meter
Management
Intelligent RS232/RS485 Support Windows® 2000/2003/XP/Vista/2008,Windows® 7/8/10,Linux and MAC
Optional SNMP / Dry contact

Application Fields:
• IT & Cloud: Data centers, enterprise servers, edge computing, NOC facilities
• Telecommunications: Mobile networks, core switching nodes, transmission stations
• Finance & Banking: Trading floors, data archiving systems, ATM infrastructure
• Transport Systems: Aviation control, railway signaling, traffic automation
• Public Sector: Emergency response platforms, defense IT, municipal networks
• Industrial Automation: PLC control systems, robotics, industrial data gateways
• Energy & Utilities: Grid management, solar/wind inverters, substation control

FAQ - Frequently Asked Questions:

Q1: Is it possible to place a sample order for the UPS?
A: Yes, we encourage sample orders to evaluate product quality. Mixed models within the sample order are acceptable.

Q2: What is the typical lead time for orders?
A: Sample preparation usually takes 5 to 7 days, while mass production requires approximately 25 working days.

Q3: Do you enforce a minimum order quantity (MOQ) for UPS purchases?
A: We offer a low MOQ policy, allowing orders starting from a single unit for sample evaluation.

Q4: What shipping methods do you offer, and how long is the delivery time?
A: We ship via sea freight, DHL, FedEx, or other preferred carriers. Delivery duration depends on the shipping method and destination.

Q5: What is the order process for the UPS?
A: First, share your specific requirements or application details. We will provide a customized quote based on your needs. After sample approval and deposit payment, we will initiate production.

Q6: Can my company logo be printed on the UPS units?
A: Yes, OEM branding is available. Please notify us before production begins to arrange logo customization.

Q7: What warranty do you provide for the UPS products?
A: Our products come with a 3-year warranty covering manufacturing defects and system performance.
