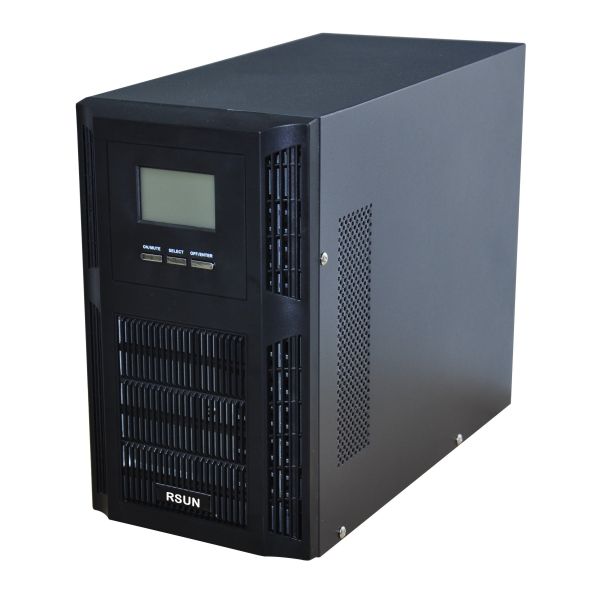

3KVA Lithium Ion UPS Battery Backup DSP Control 3kva Digital LFP UPS For Home
3KVA Lithium Ion UPS Battery Backup DSP Control 3kva Digital LFP UPS For Home
3KVA Lithium Ion UPS Battery Backup DSP Control 3kva Digital LFP UPS For Home
3KVA Lithium Ion UPS Battery Backup DSP Control 3kva Digital LFP UPS For Home
Specifications
Brand Name :
RSUN or OEM
Model Number :
D3K-Li
Place of Origin :
China
MOQ :
50
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
100000PCS per month
Delivery Time :
30 working days
Packaging Details :
Cartons
Type :
Lithium Ion UPS
Input voltage :
90~300VAC
Output voltage :
208/220/230/240VAC
Capacity :
1K-10KVA
Frequency :
50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform :
Pure sine wave
Battery type :
LiFePO4 battery
Charging Current :
4A / 8A
Efficiency :
90%
Weight :
18KG
Description

3KVA 2.7KW Lithium Ion UPS Battery Backup DSP control digital UPS LFP UPS 3kva ups for home, built-in BMS, UPS power system pure sine wave ups, High frequency Online UPS

DESCRIPTIONS:

The DK-Li Series is an online uninterruptible power supply (UPS) equipped with a lithium-ion battery. Engineered with a true double-conversion topology, it delivers a pure sine wave output, ensuring seamless power protection for mission-critical applications and sensitive equipment. With zero transfer time, the DK-Li UPS provides uninterrupted, clean AC power during outages or voltage fluctuations. In addition, it supports parallel connection of multiple battery packs, offering enhanced scalability while optimizing space efficiency.

MAIN FEATURES:

LiFePO4 UPS - Reliable & Efficient Power
• 2000+ cycle LiFePO4 battery for long life
• True double-conversion design
• DSP Digital Control Based
• Dry Contact control Interface for BMS
• ModBUS interface with BMS
• Wide input range: 90~300VAC
• 4A / 8A adjustable charging current
• Zero Transfer time
• Genset Compatible
• Compact design, easy maintenance

SPECIFICATIONS:

Model D1K-Li D1KS-Li D2K-Li D2KS-Li D3K-Li D3KS-Li
Capacity 1kVA/900W 2kVA/1.8kW 3kVA/2.7kW
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output
Mains Input
Wiring L/N+PE
Rated Voltage 208/220/230/240VAC
Voltage Range 90~300VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output
Wiring L/N+PE
Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform Sine Wave
Distortion <2%(Linear Load), <8%(None-Linear Load)
(THDV%)
Over load capability 100%~105% continuous.
60Sec.@105%~130% Rated Load
10Sec.@130%~150% Rated Load
0.3Sec.@>150%Rated Load
Efficiency
Line Mode 88% 90%
Battery Mode 86% 88%
Battery
Rated Battery Voltage 48VDC (default for 15cell of LiFePO4 )
Battery Capacity 600WH, >40mins @ Full Load External Battery Depends 1000WH, >30mins @ Full Load External Battery Depends 1000WH, >20mins @ Full Load External Battery Depends
Backup Time
Charging Current 4A/8A
Charging Voltage 52.8V(default for 15cell of LiFePO4 ) / Customerized according to battery request
Charger Behavior & CC. CV. Floating. Turn-Off 4 states
Protection 3 over voltage protection loop, preserve interface for over temperature/over pressure switch off interface
Physical
Tower Dimension 1KS/2KS: 145×220×390mm 3KS: 190×318×365mm
1K: 190×318×365mm 2K/3K:190×318×415mm
Weight(KG) 10.8 5.0 16.5 5.5 18.0 7.9
HMI
LED DISPLAY Mains / battery status, Load level, battery level, Operation Mode
LCD DISPLAY with LED indicator Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication 1. RS232 PORT
2. Network Card: Support SNMP, TCP/IP Protocol, for remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software, Support Server / NAS shutdown
3. Dry Contact Interface for BMS control
4. ModBUS For BMS interface
Operating Environment
Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <55dB @ 1 meters

3KVA Lithium Ion UPS Battery Backup DSP Control 3kva Digital LFP UPS For Home

Why Opt for a Lithium Battery UPS?
1. Extended Service Life
Lithium UPS systems offer a significantly longer operational lifespan, lasting 3 to 5 times longer than traditional lead-acid units, minimizing replacement frequency and total cost of ownership.
2. Space-Saving & Lightweight Design
Their compact size and reduced weight simplify installation and make them ideal for environments where space and mobility matter.
3. Rapid Charging & Superior Efficiency
Lithium batteries support fast recharge cycles and deliver higher overall energy efficiency, ensuring faster recovery and reduced downtime during power disruptions.
4. Advanced Safety Mechanisms
Integrated Battery Management Systems (BMS) provide intelligent protection from overvoltage, overheating, and short-circuit conditions, enhancing both safety and reliability.
5. Environmentally Responsible
Free of toxic materials and fully recyclable, lithium battery technology supports sustainable energy practices and reduces environmental impact compared to lead-acid alternatives.

APPLICATIONS:

Home Use:
• Backup for Wi-Fi, lighting, TVs, and essential appliances
• Power for home office devices and medical equipment (e.g. CPAP)
Office Use:
• Backup for computers, monitors, and network equipment
• Support for VoIP phones, printers, and small servers
Commercial Use:
• Power for POS systems, security cameras, and access control
• Backup for digital signage and small IT or telecom equipment
