2L Series Pilot Operated Piston Type Steam Solenoid Valve
2L Series Pilot Operated Piston Type Steam Solenoid Valve
Specifications
Brand Name :
ROYOL/OEM
Model Number :
RYSV52
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000pcs/day
Delivery Time :
5-10days
Packaging Details :
carton
Description
2L Series Pilot Operated Piston Type Steam Solenoid Valve
Product Characteristics
  • Pilot piston type structure, requires horizontal installation and cannot be inverted
  • Long seal life in steam environment
  • Suitable for long working pipe systems

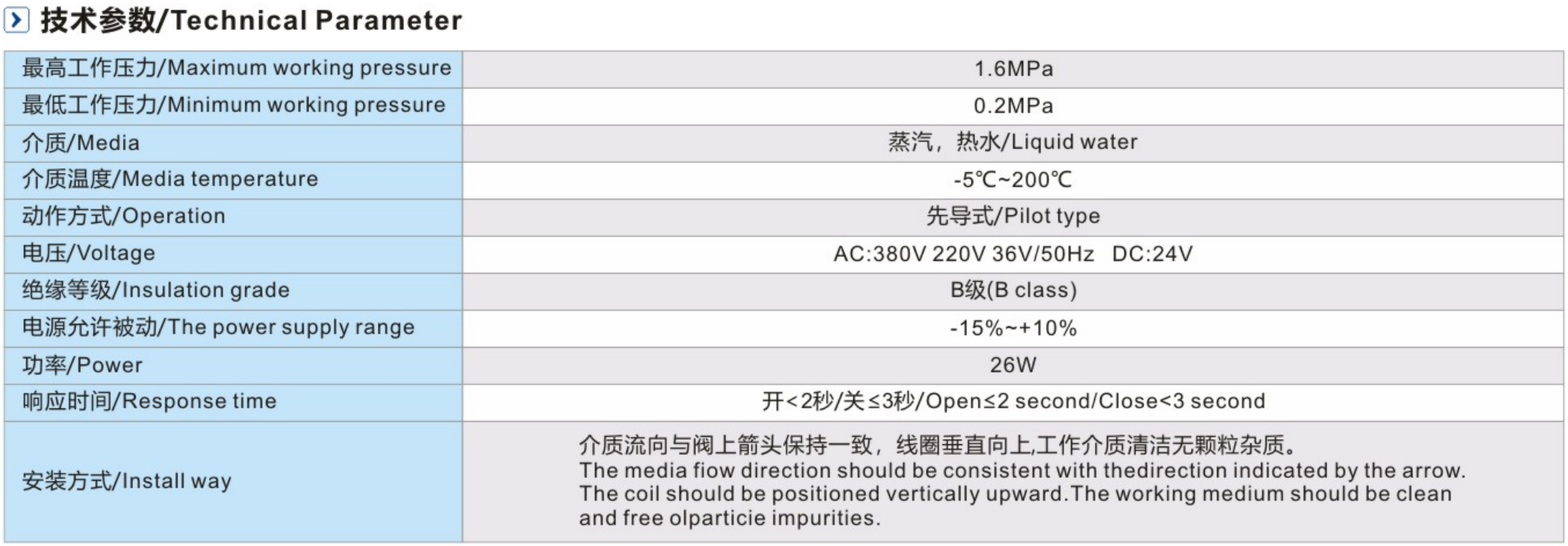

Technical Specifications
Maximum Working Pressure 1.6 MPa
Minimum Working Pressure 0.2 MPa
Media Liquid Water
Media Temperature -5℃ to 200℃
Operation Pilot Type
Voltage AC: 380V, 220V, 36V / 50Hz | DC: 24V
Insulation Grade B Class
Power Supply Range -15% to +10%
Power 26W
Response Time Open ≤ 2 seconds / Close < 3 seconds
Installation Method Media flow direction must match arrow indicator. Coil must be positioned vertically upward. Working medium must be clean and free of particulate impurities.
2L Series Pilot Operated Piston Type Steam Solenoid Valve 2L Series Pilot Operated Piston Type Steam Solenoid Valve
