Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-500LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
RO Water Treatment System
Production Capacity :
500 litters per hour
Electrical Power :
220/380V 50/60Hz
Tank Material :
FRP
Pipe fitting :
SUS304/ U-PVC
Function :
Remove Dissolved Solids From Water
Feed Water TDS :
<2000mg/L
Desalination Rate :
>=97%
Description

Petite Capacite 500LPH Planta De Tratamiento Industrial Ozmosis Invers Machine Eau Machines Pour Rendre Leau Potable

RO Water Treatment System Description

Output water application: Human consumption drinking/washing water, agriculture irrigating/drinking water.

indusrtial drinking water, foodstuff(alkaline/mineral bottle water for selling...),

pharmaceutical(need to add 2 stage ro and EDI), chemical industry, electronic industry for terminal process.

We can design different kinds of water system for customers' different requirements of water.

Raw/feed/source water: Can be well/ground water, city/tap water, river/lake water,rains water...

1. The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures.
2. The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense.
3. More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis.
4. It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.

RO Water Treatment System Details
Pre-treatment:
Item Name Brand Function
Raw water pump CNP Provide prssure for filters
Quartz sand filter Kai Yuan Remove suspended particle and large impurity. In this system, we willl provide one set quartz sand to our customer for using 1.5/2 years.
Activated carbon filter KaiYuan

Adsorb smell,ordor,iron ions,color...

In this system, we willl provide one set quartz sand to our customer for using 1.5/2 years.

Anti-scalant system SEKO To add chemicals to remove some impurities and prolong thememebranes using/washing time(prevent membrane blocking)
Manual/Auto control valves Kai Yuan Flushing sand/carbon filter after some time
Security filter Kai Yuan Remove larger than 5 micro colloids in the water. In this system, we willl provide one set PP filter cartridges to our customer for using 1 month.
Ro main part
High pressure pump CNP Provide pressure for ro membrane
Ro membranes DOW,USA More than 97% desalination rate, can remove ions except H2O. In this system, we willl provide one set quartz sand to our customer for using 1.5 years.
CIP washing system Kai Yuan To washing the membranes when it is blocked after using for long time
Electronic system Kai Yuan PC controller or PLC controller
RO Water Treatment System Performance
⇒ Main part (membrane) of reverse osmosis system is imported from USA.
⇒ Auto stop when no water and full water.
⇒ Auto controller, RO membrane auto flush to protect membrane.
⇒ Auto start when pure water tank have no water.
⇒ Low pressure protection switch to protect high pressure pump when there is no raw water.
⇒ High efficient and low noise high pressure pump.
⇒ Product water conductivity meter to monitor product water quality all the time.
⇒ Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
⇒ Inlet water solenoid valve to stop water when machine is stop.
RO Water Treatment System Processing

(Water softener,dosing system,CIP washing system,ozone generator or UV can be added if you need it. It depends on the quality of raw water/ouput water using.

raw water→raw water tank→raw water pump→sand filter+ carbon filter→water softenersecurity filter→high pressure pump→reverse osmosis system→ water supply points

Portable 500LPH Industrial Ro Desalination plant for purifying sea water

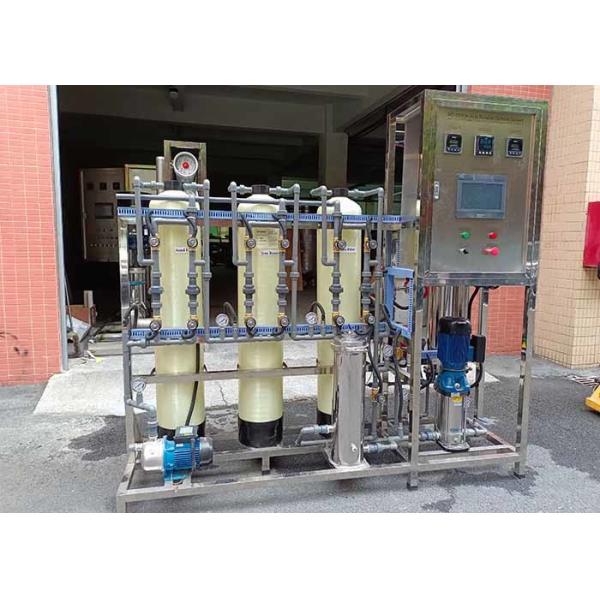

RO Water Treatment System Show
Portable 500LPH Industrial Ro Desalination plant for purifying sea water
Portable 500LPH Industrial Ro Desalination plant for purifying sea water

Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
