Industrial RO Water Treatment Plant / Commercial RO Water Systems
Industrial RO Water Treatment Plant / Commercial RO Water Systems
Industrial RO Water Treatment Plant / Commercial RO Water Systems
Industrial RO Water Treatment Plant / Commercial RO Water Systems
Industrial RO Water Treatment Plant / Commercial RO Water Systems
Industrial RO Water Treatment Plant / Commercial RO Water Systems
Industrial RO Water Treatment Plant / Commercial RO Water Systems
Industrial RO Water Treatment Plant / Commercial RO Water Systems
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-250LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>100sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Item Name :
RO Water Treatment Plant
Application :
Industrial
Recovery Rate :
50% - 75%
Electrical Power :
110V - 415V 50Hz or 60Hz
Type :
Commercial RO Water Systems
RO Rack Size :
1910*620*1850MM
Pre-treatment Tank Size :
Φ250 × 1450MM
Warranty :
1 year
Description

Industrial RO Water Treatment Plant / Commercial RO Water Systems

How Do RO Water Treatment PlantWork & What Do They Do?

If you're looking for a water filter that will provide outstanding drinking water for your home or factory, Reverse Osmosis (RO) filtration is one of the most popular and best water filtration methods available. In simple terms, reverse osmosis works as water is forced across a semi-permeable membrane, leaving contaminants behind that are flushed down the drain. The clean drinking water collects in a holding tank.

RO Water Treatment Plant Parameters
1. Capacity: 250 Liters per hour
2. Rated power: 1.75KW/H
3. RO System Rack Size: 1910*620*1850MM
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
8. Voltage: 110V - 415V , 50Hz or 60Hz , 3phase
RO Water Treatment Plant Advantage
  • Automatic flush
  • LIGHTS—Power on; system running; low pressure with auto cut-off
  • Stainless Steel RO Booster Pump
  • Dual level R.O. controls
  • Auto-backwash—On pre and post treatment—stainless steel jackets
  • Pre and post filter gauges
  • Waste and recycle valves
  • Product and waste flow meters
  • Pressure pump—20 G.P.M.
  • Ultraviolet sterilization light—25 G.P.M.
  • All components and materials are either NSF/FDA/UL/ETL approved
  • Stainless steel membrane housings with TFC membranes
RO Water Treatment Plant Processing

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point
Some parts function
1.Raw water pump: provide needed pressure for every pre-treatment filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;
3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

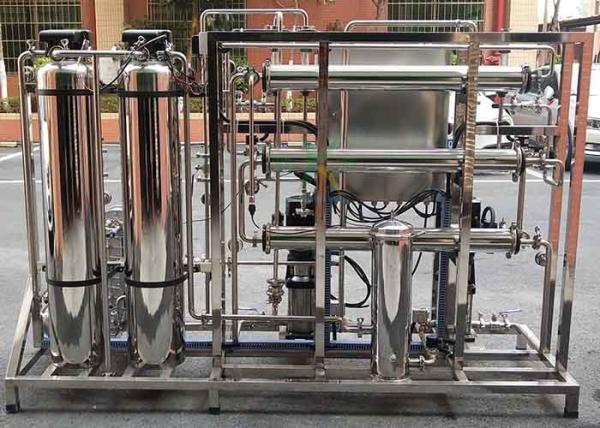

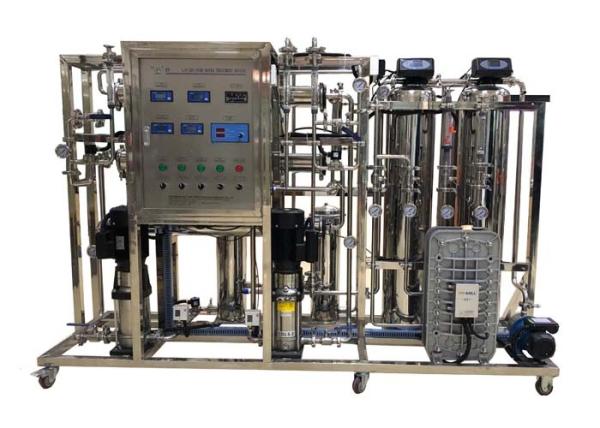

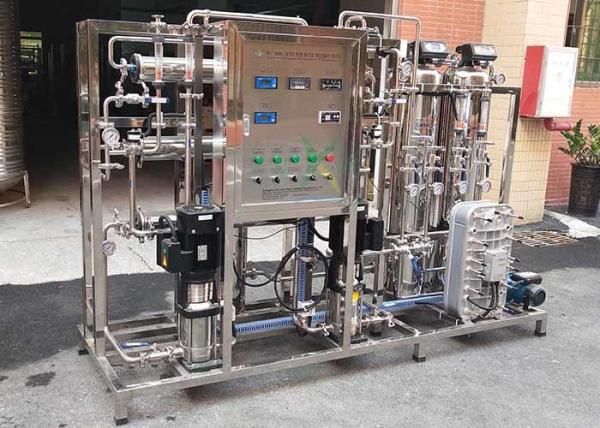

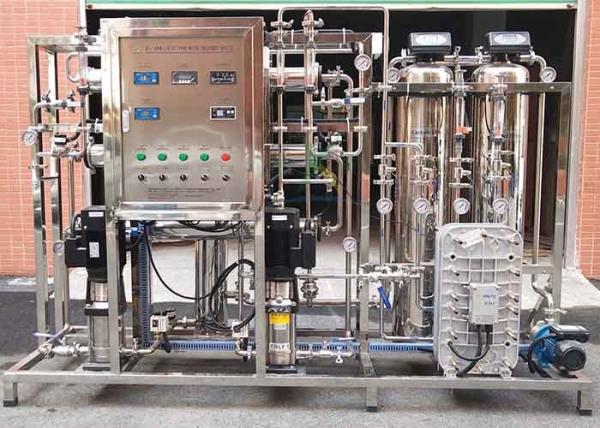

RO Water Treatment Plant Pictures Show

Industrial RO Water Treatment Plant / Commercial RO Water Systems

Industrial RO Water Treatment Plant / Commercial RO Water Systems
