High Efficiency 250LPH RO Water Treatment Plant Commercial / Industrial
High Efficiency 250LPH RO Water Treatment Plant Commercial / Industrial
High Efficiency 250LPH RO Water Treatment Plant Commercial / Industrial
High Efficiency 250LPH RO Water Treatment Plant Commercial / Industrial
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-250LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>100sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Item Name :
RO Water System 500LPH
Production Capacity :
250liters per hour
Recovery Rate :
50% - 75%
Electrical Power :
110V - 415V 50Hz or 60Hz
Tank Material :
FRP/ Stainless Steel/ Carbon Steel
RO Rack Size :
1910*620*1850MM
Pre-treatment Tank Size :
Φ250 × 1450MM
Warranty :
1 year
Description

High Efficiency 250LPH RO Water Treatment Plant Commercial / Industrial

1. Product Description

Reverse osmosis system is using city water as feed water.

Pre-treatment filters always contain quartz sand filter, activated carbon filter, water softener and security filter. Main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. And pre-filters can also reduce water residual chlorine and pesticide and other harmful pollutions. If raw water in high hardness, we will need to add water softener to protect reverse osmosis membrane.
2. Product Parameter
KYRO-250LPH RO Water Treatment System:
1. Capacity: 250 Liters per hour
2. Rated power: 1.75KW/H
3. RO System Rack Size: 1910*620*1850MM
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
8. Voltage: 110V - 415V , 50Hz or 60Hz , 3phase
3. System Advantages
  • Powder coated steel frame—Aluminum diamond plate base
  • Pre-wired electrical panel—Circuit breaker
  • Automatic flush
  • LIGHTS—Power on; system running; low pressure with auto cut-off
  • Stainless Steel RO Booster Pump
  • Dual level R.O. controls
  • Auto-backwash—On pre and post treatment—stainless steel jackets
  • Pre and post filter gauges
  • Waste and recycle valves
  • Product and waste flow meters
  • Pressure pump—20 G.P.M.
  • Ultraviolet sterilization light—25 G.P.M.
  • All components and materials are either NSF/FDA/UL/ETL approved
  • Stainless steel membrane housings with TFC membranes
4. Optional Components
A. Regulating wheels B. PC Touch Screen
C. Two-stage RO system D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
5. Product Processing

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point

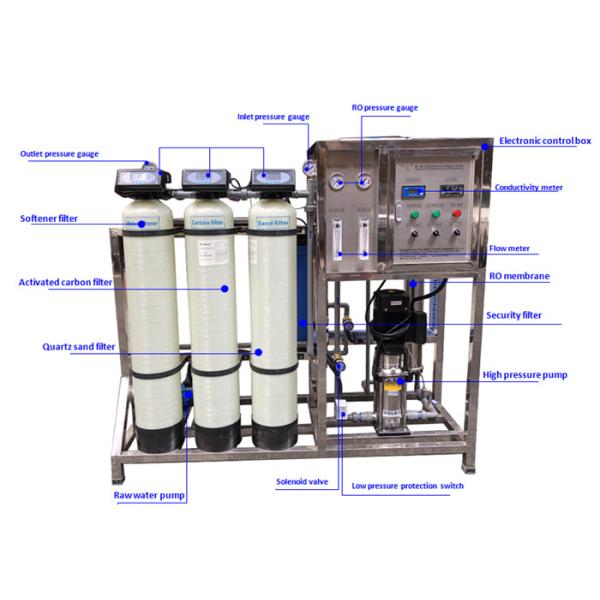

Some parts function
1.Raw water pump: provide needed pressure for every pre-treatment filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;
3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

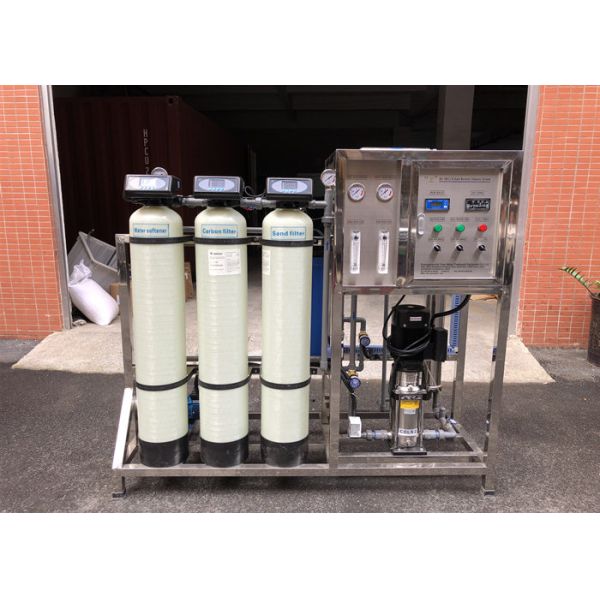

6. Pictures Show

High Efficiency 250LPH RO Water Treatment Plant Commercial / Industrial

High Efficiency 250LPH RO Water Treatment Plant Commercial / Industrial


Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
