1500mm Industrial RO Pure Water Equipment With Stainless Steel FRP Vessel
1500mm Industrial RO Pure Water Equipment With Stainless Steel FRP Vessel
Specifications
Brand Name :
HYJB
Model Number :
1T
Place of Origin :
Zhengzhou,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
7 days
Packaging Details :
Wooden Case
Weight :
300kg
Size :
1500*650*1700mm
Capacity :
1000L/H
Warranty :
1 Year
UF Module :
0.0001~0.001um
Material :
Stainless Steel 304
Description

1500*600*1700mm Industrial RO Water Purification Plant With Stainless Steel FRP Vessel

Production Description

Pretreatment two-tank process flow:

Raw water tank-raw water pump-quartz sand filter-activated carbon filter-scale inhibitor dosing device-security filter-high pressure pump-RO reverse osmosis system-pure water tank

Parameter Table

Model
Water Making Ability
Inlet Caliber
Effluent Caliber
Blowdown alCer
Size(mm)
Power
YSRO-0.5T
0.5m3/h
DN20
DN20
DN15
1500×600×1500
1.3kw
YSRO-1T
1m3/h
DN25
DN25
DN20
1700×600×1500
2.1kw
YSRO-2T
2m3/h
DN32
DN25
DN20
2500×1000×1950

4.4kw
YSRO-3T
3m3/h
DN40
DN32
DN25
2500×1200×2150
4.5kw
YSRO-5T
5m3/h
DN50
DN40
DN32
2500×1350×2150
7.0kw
YSRO-8T
8m3/h
DN50
DN50
DN40
3500×1500×2150
11kw
YSRO-10T
10m3/h
DN50
DN50
DN40
3500×1600×2300
15kw

Key Advantages

Reverse osmosis is a physical desalination method, which has different advantages in many aspects.The salt-containing feed water is desalted and purified by a physical method without phase change at room temperature.At present, a single reverse osmosis membrane element is as high as 98%, and can remove colloid, organic matter, bacteria, viruses and the like in water at the same time.

Maintance

During operation, some faults may occur occasionally due to various reasons. When problems occur, the operation records shall be checked in detail and the causes of the faults shall be analyzed.If the water yield of the reverse osmosis equipment is gradually reduced by 15% due to factors other than temperature and pressure, or the water quality is gradually reduced and exceeds the standard, it indicates that the reverse osmosis membrane needs chemical cleaning.

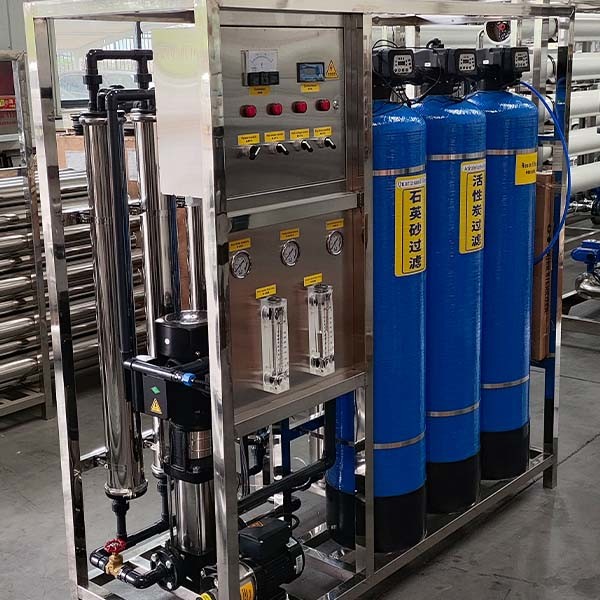

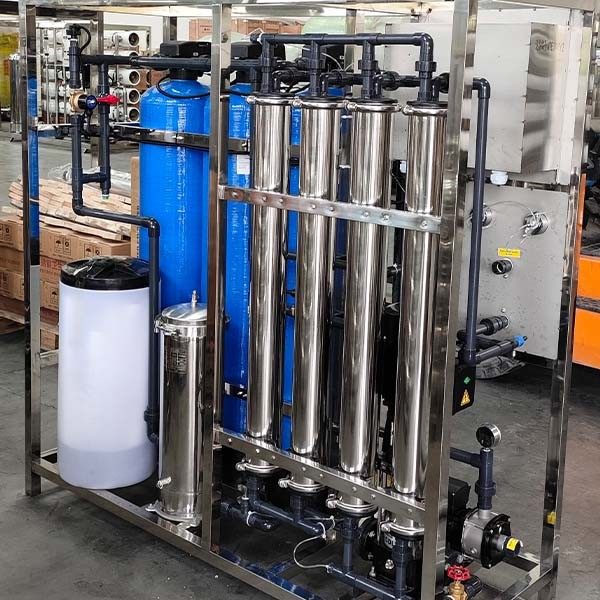

Product Display

1500mm Industrial RO Pure Water Equipment With Stainless Steel FRP Vessel1500mm Industrial RO Pure Water Equipment With Stainless Steel FRP Vessel
