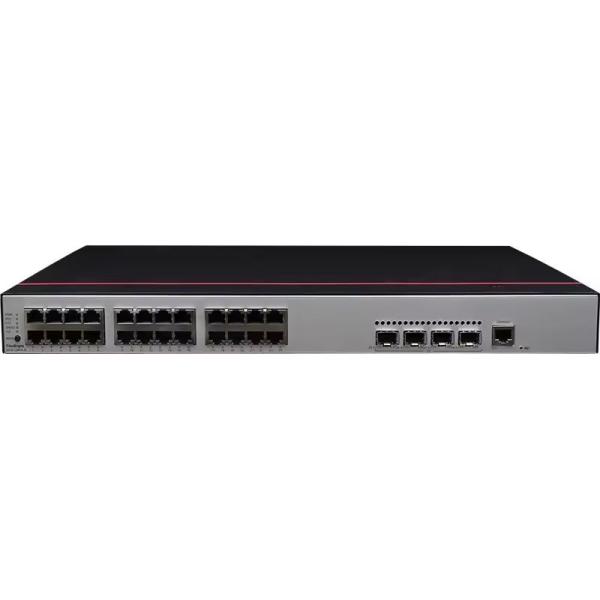

24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
Specifications
private mold :
NO
products status :
Stock
ports :
24
transmission rate :
10/100/1000Mbps
function :
LACP, POE, QoS, SNMP
communication mode :
Full-Duplex & Half-Duplex
switch capacity :
/
brand name :
/
model number :
S 5735-L24P4S-A1
place of origin :
Shanghai, China
Size :
Customized Size
Color :
Customizable
Suitable for :
Workstation, Laptop, Desktop
Price :
CN¥2,478.32/pieces 1-1 pieces
Description
Product Description
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
24 Ports Gigabit Switch Poe Enterprise-class S5 735 Series Network Switch Full-Duplex Half-Duplex Communication Mode
Dimensions with packaging (H x W x D) [mm(in.)]
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]
1 U
Typical power consumption [W]
41.7 W
Typical heat dissipation [BTU/hour]
142.29 BTU/hour
Maximum power consumption [W]
Not providing the PoE function: 53.2 W
100% PoE loads: 433.2 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour]
Not providing the PoE function: 181.52
MTBF [year]
55.72 year
MTTR [hour]
2 hour
Availability
>0.99999
Noise at normal temperature (acoustic power) [dB(A)]
50 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]
38.2 dB(A)
Storage temperature [°C(°F)]
-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]
5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]
0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]
0-5000 m (0-16404 ft.)
Power supply mode
AC built-in
Rated input voltage [V]
AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
Input voltage range [V]
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
Memory
512 MB
Flash memory
512 MB
Console port
RJ45
Eth Management port
Not supported
USB
Not supported
RTC
Not supported
RPS input
Not supported
Service port surge protection [kV]
Common mode: ±7 kV
Power supply surge protection [kV]
±6 kV in differential mode, ±6 kV in common mode
Types of fans
Built-in
Heat dissipation mode
Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction
Air intake from left and front, air exhaustion from right
PoE
Supported
Specification
