General Information

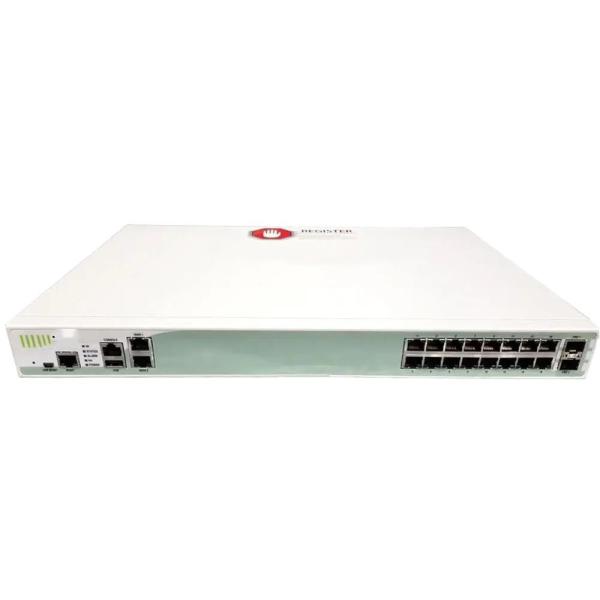

• Product Model: FG-200F
• Product Type: Next Generation Firewall (NGFW).

Hardware Specifications

• Processor: Forti ASIC CP9/NP6 XLite.
• Memory: N/A
• Network Interfaces:
  • RJ45 Ports: 18 x GE RJ45, including 1 x management port, 1 x high availability (HA) port, 16 x switch ports.
  • SFP Slots: 8 x GE SFP slots, 4 x 10GE SFP slots.

Performance Specifications

• NGFW Throughput: 3.5 Gbps.
• Firewall Throughput:
  • 64-byte UDP: 11 Gbps.
  • 512-byte UDP: 27 Gbps.
  • 1518-byte UDP: 27 Gbps.
  • Firewall Latency (64-byte UDP): 4.78 µs.
• Threat Protection Throughput: 3 Gbps.
• IPS Throughput: 5 Gbps.
• VPN Throughput:
  • 512-bit IPsec: 13 Gbps.
  • SSL: 2 Gbps.
• SSL Inspection Throughput: 4 Gbps.
• Capwap Throughput: 20 Gbps.
• Application Control Throughput: 13 Gbps.

Capacity Specifications

• Maximum Virtual Domains: 10.
• Number of FortiToken Devices: 5000.
• Concurrent SSL VPN Users: 500.
• Client to Gateway IPsec VPN Tunnels: 16000.
• Firewall Policies: 10000.
• SSL Inspection Concurrent Sessions: 300000.
• Gateway to Gateway IPsec VPN Tunnels: 2500.
• SSL Inspection CPS: 3500.
• Number of FortiAP Devices (Tunnel): 128.
• Number of FortiSwitches: 64.
• Concurrent TCP Sessions: 3000000.
• Number of FortiAP Devices: 256.
• New TCP Sessions per Second: 280000.

Physical Characteristics

• Dimensions: Width: 17 inch, Depth: 13.5 inch, Height: 1.7 inch.
• Weight: 9.92 lbs.

Power Specifications

• Power Supply: AC 120/230 V, 50/60 Hz, internal power supply, power redundancy optional, max supported quantity 2.
• Power Consumption Operational: 101.92 watt.

Environmental Parameters

• Operating Temperature: 32°F - 104°F.
• Humidity Range Operating: 20% - 90% (non-condensing).

Compliance and Certification

• Compliant Standards: UL, ICSA SSL-VPN, VCCI, BSMI, RCM, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA IPS, ICSA IPv6, CUL, ICSA Firewall Certified, ICSA IPsec Certified.

Other Features

• Status Indicators: Status, Alarm, Power, HA.
• Features: Trusted Platform Module (TPM), SD-WAN support, VPN support.
• OS Provided: FortiOS.
