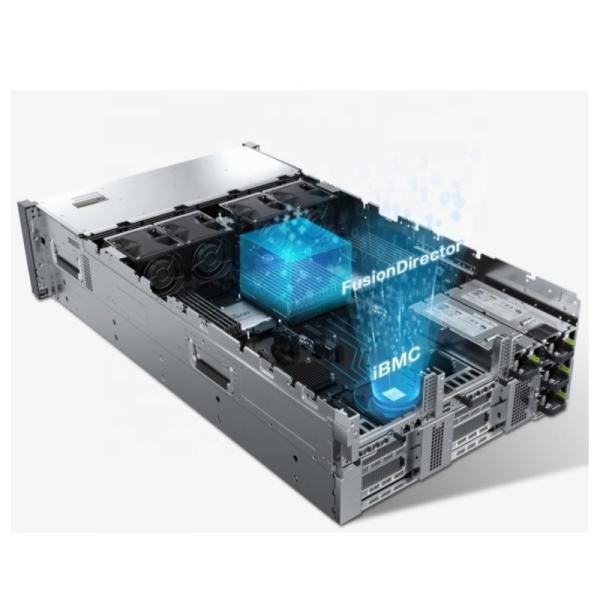

4U AI server

4th or 5th Gen Intel^® Xeon^® Scalable processors with 350 W TDP per processor

Emmitsburg PCH

32 x DDR5 DIMMs, with up to 5600 MT/s speed

Hot-swappable drives in the following configurations:
• Up to 28 x 3.5 SAS/SATA drives
• Up to 4 x NVMe SSDs
Flash storage:
• 2 x M.2 SSDs

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

4 x dual-width or 10 x single-width GPU cards

Multiple network expansion capabilities

2 x OCP 3.0 NICs, which can be configured as required and supports orderly hot swap and PCIe 5.0

Up to 10 x standard PCIe slots; supporting PCIe 5.0

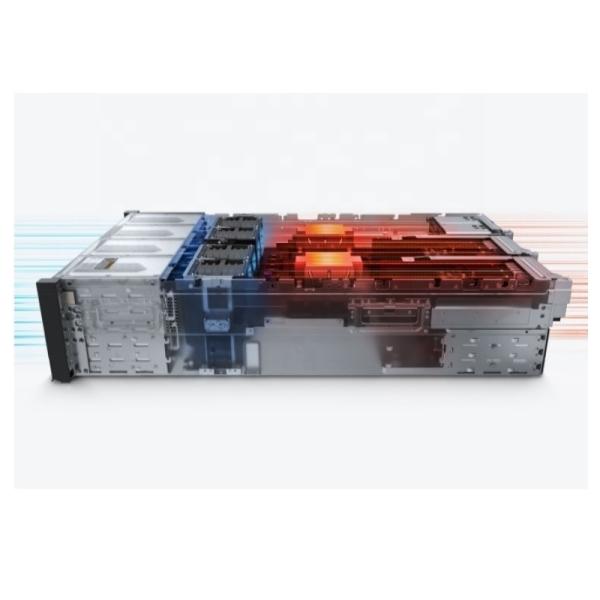

8 x hot-swappable counter-rotating fan modules in N+1 redundancy

4 x 1500 W Platinum, or 2000 W Platinum/Titanium hot-swappable PSUs with PSU1 and PSU2 in 1+1 redundancy and PSU3 and PSU4 in 1+1 redundancy

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management

• Can be configured with the FusionDirector management software to provide advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management through the lifecycle

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler . For more, click here

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection

5°C to 35°C (41°F to 95°F) (compliant with ASHRAE Class A1/A2)

CE, UL, CCC, FCC, VCCI, and RoHS

L-shaped guide rails, adjustable guide rails, and holding rails

175 mm x 447 mm x 798 mm (6.89 in. x 17.60 in. x 31.42 in.)
