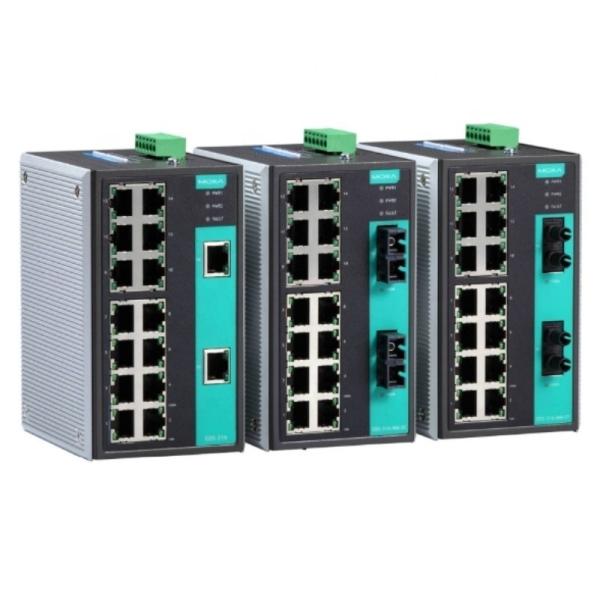

Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch
Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch
Specifications
MOQ :
2 pieces
Price :
CN¥930.91/pieces >=2 pieces
private mold :
NO
products status :
Stock
ports :
16
transmission rate :
10/100/1000Mbps
function :
POE
communication mode :
Full-Duplex & Half-Duplex
switch capacity :
/
brand name :
/
model number :
EDS-316 Series
place of origin :
Shanghai, China
Product Name :
Switch
Condition :
100% Orginal
MOQ :
1pc
Warranty :
5 Years
Description
New Original EDS-316 Series 16-port unmanaged Ethernet switches
Product Description

Features and Benefits
Relay output warning for power failure and port break alarm
Broadcast storm protection
-40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) EDS-316 models: 16
EDS-316-MM-SC/MM-ST/MS-SC/SS-SC models: 14
EDS-316-SS-SC-80 models: 14
EDS-316-M-SC/M-ST/S-SC models: 15

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector) EDS-316-M-SC models: 1
EDS-316-MM-SC models: 2
EDS-316-MS-SC models: 1
100BaseFX Ports (multi-mode ST connector) EDS-316-M-ST models: 1
EDS-316-MM-ST models: 2
100BaseFX Ports (single-mode SC connector) EDS-316-MS-SC models: 1
EDS-316-S-SC models: 1
EDS-316-SS-SC models: 2
100BaseFX Ports (single-mode SC connector, 80 km) EDS-316-SS-SC-80 models: 2
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Switch properties
Packet Buffer Size 1.25 Mbits
MAC Table Size 4 K
Processing Type Store and Forward
Power Parameters
Input Voltage 12/24/48 VDC
Redundant dual inputs
Input Current 0.34 A (EDS-316) @ 24 VDC
0.35 A (EDS-316-S-SC) @ 24 VDC
0.35 A (EDS-316-M-SC, EDS-316-M-ST) @ 24 VDC
0.40 A (EDS-316-SS-SC) @ 24 VDC
0.39 A (EDS-316-MM-SC, EDS-316-MM-ST) @ 24 VDC
Connection 1 removable 6-contact terminal block(s)
Operating Voltage 9.6 to 60 VDC
Reverse Polarity Protection Supported
Overload Current Protection Supported
Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Weight 1140 g (2.52 lb)
Installation DIN-rail mounting
Wall mounting (with optional kit)

Original EDS-316 Series Networking Switch 16 Port Unmanaged Ethernet Switch
