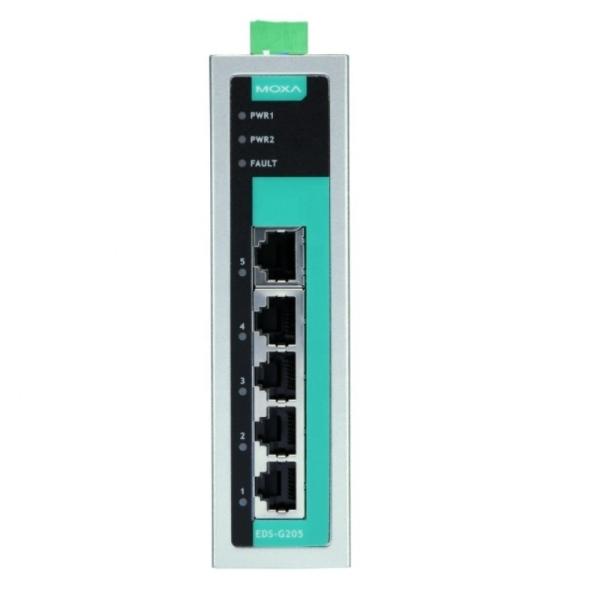

5G Port EDS-G205 Full Gigabit Switch Unmanaged Network Switch
5G Port EDS-G205 Full Gigabit Switch Unmanaged Network Switch
Specifications
MOQ :
2 pieces
Price :
CN¥960.00/pieces >=2 pieces
private mold :
NO
products status :
Stock
ports :
≤ 8
transmission rate :
10/100/1000Mbps
function :
POE
communication mode :
Full-Duplex & Half-Duplex
switch capacity :
/
brand name :
/
model number :
EDS-G205 Series
place of origin :
Shanghai, China
Product Name :
Switch
Condition :
100% Orginal
MOQ :
1pc
Warranty :
5 Years
Description

New Original EDS-G205 Series 5G-port full Gigabit unmanaged Ethernet switches

Product Description

Features and Benefits
Fiber-optic options for extending distance and improving electrical noise immunity
Redundant dual 12/24/48 VDC power inputs
Supports 10 KB jumbo frames
Relay output warning for power failure and port break alarm
Broadcast storm protection
-40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector) 4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) 1
Standards IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseX
IEEE 802.3az for Energy-Efficient Ethernet
Switch properties
MAC Table Size 8 K
Packet Buffer Size 1 Mbits
Jumbo Frame Size 10 KB
Processing Type Store and Forward
Power Parameters
Connection 1 removable 6-contact terminal block(s)
Input Voltage 12/24/48 VDC
Redundant dual inputs
Operating Voltage 9.6 to 60 VDC
Reverse Polarity Protection Supported
Input Current 380 mA
Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
Weight 290 g (0.64 lb)
Installation DIN-rail mounting
Wall mounting (with optional kit)

5G Port EDS-G205 Full Gigabit Switch Unmanaged Network Switch
