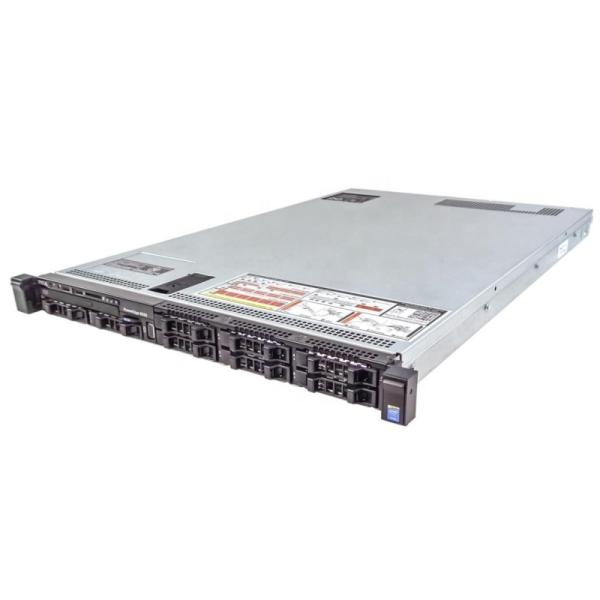

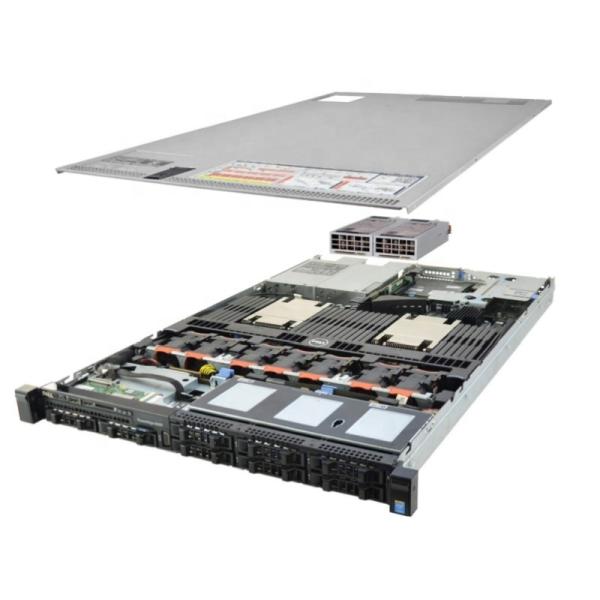

PowerEdge R630 Server 2X 2.4GHz Xeon 16 Cores 64GB RAM
PowerEdge R630 Server 2X 2.4GHz Xeon 16 Cores 64GB RAM
PowerEdge R630 Server 2X 2.4GHz Xeon 16 Cores 64GB RAM
PowerEdge R630 Server 2X 2.4GHz Xeon 16 Cores 64GB RAM
PowerEdge R630 Server 2X 2.4GHz Xeon 16 Cores 64GB RAM
PowerEdge R630 Server 2X 2.4GHz Xeon 16 Cores 64GB RAM
PowerEdge R630 Server 2X 2.4GHz Xeon 16 Cores 64GB RAM
PowerEdge R630 Server 2X 2.4GHz Xeon 16 Cores 64GB RAM
Specifications
Model Number :
R630
Place of Origin :
Shanghai, China
MOQ :
1
Price :
$1,825
Form factor :
1U rack server
Dimensions :
H: 4.28 cm (1.68 in), W: 48.23 cm (18.98 in), D: 75.51 cm (29.72 in) or 70.05 cm (27.57 in)
Processor type :
Intel® Xeon® E5-2600 v4
Processor sockets :
2
Cache :
2.5MB per core
Chipset :
Intel C610 series
Memory capacity :
Up to 1.5TB (24 DIMM slots)
Memory speed :
Up to 2400MT/s
PCIe slots :
3 x PCIe 3.0 plus dedicated PERC slot
RAID controllers :
PERC S130, H330, H730, H730P, H830
Drive bays :
Up to 24 x 1.8" or 10 x 2.5" or 8 x 2.5"
Max storage :
Up to 23TB (1.8" SSD) or 18TB (2.5" HDD)
Embedded NIC :
4 x 1Gb or 2 x 1Gb + 2 x 10Gb or 4 x 10Gb
Power supplies :
750W AC, 1100W DC, 495W/750W/1100W Platinum
Processor frequency :
2.4GHz
Description
Product Description

R630

Form factor 1U rack server
Dimensions 24 x 1.8" and 10 x 2.5" drive configuration: H: 4.28 cm (1.68 in), W: 48.23 cm (18.98 in), D: 75.51 cm (29.72 in)
8 x 2.5" drive configuration: H: 4.28 cm (1.68 in), W: 48.23 cm (18.98 in), D: 70.05 cm (27.57 in)
Processor Intel® Xeon® processor E5-2600 v4 product family
Processor sockets 2
Cache 2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22
Chipset Intel C610 series chipset
Memory Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
I/O slots Up to 3 x PCIe 3.0 slots plus dedicated PERC slot
RAID controllers Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA
Drive bays Internal hard drive bay and hot-plug backplane:
Up to 24 x 1.8" SATA SSD
Up to 10 x 2.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe
Up to 8 x 2.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Maximum internal storage HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, NVMe PCIe
24 x 1.8" SSD – up to 23TB via 0.96 TB hot-plug SATA SSD
10 x 2.5" – up to 18TB via 1.8TB hot-plug SAS HDD
8 x 2.5" – up to 14TB via 1.8TB hot-plug SAS HDD
Embedded NIC 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb
Power supplies Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W
Availability ECC memory, hot-plug hard drives, hot-plug redundant cooling, hot-plug redundant power, internal dual SD module, single
device data correction (SDDC), spare rank, support for high availability clustering and virtualization, proactive systems
management alerts
