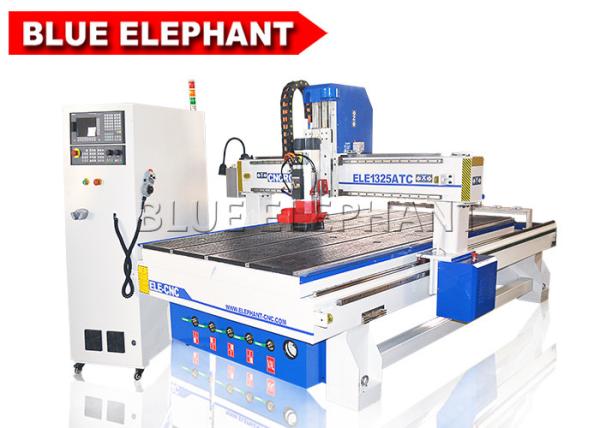

Auto tool change ATC CNC Router 1325 woodworking router machine for door
Auto tool change ATC CNC Router 1325 woodworking router machine for door
Auto tool change ATC CNC Router 1325 woodworking router machine for door
Auto tool change ATC CNC Router 1325 woodworking router machine for door
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO, SGS, BV, TUV
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $18,000 - 22,000 / Set
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
15-20 working days
Packaging Details :
Standard marine export plywood case
Voltage :
400V, 3Phase, 50Hz
Control system :
Germany SIEMENS 808D Control System
Spindle :
Italy HSD Spindle
Motor :
SIEMENS Servo Motor
Driver :
SIEMENS Servo Driver
Inverter :
11kw Taiwan Delta Inverter
Description

Auto tool change cnc router , cnc router 1325 woodworking router machine for door

Advantages of auto tool change cnc router:

  • German SIEMENS controller and servo,with high precision and best quality.
  • Oil mist cooling,Help to improve the effect of metal processing.
  • The working voltage can be in 400V, 380v or 220V, European technology standards.
  • Italy HSD automatic tool changing spindle,the max pwer can be in 9KW.

Parameters of auto tool change cnc router:

Description Parameters
Modle ELE1325ATC
Working size 1300*2500*200mm
Color Customizable
Working Voltage 400V, 3Phase, 50Hz
Control system Germany SIEMENS 808D Control System
Spindle 9kw HSD ATC air cooling spindle
Inverter 11kw Delta Inverter
Motor & Driver SIEMENS Servo Motor & Driver
Traveling speed 45m/min
Working speed 25m/min
Auto tool changer magazine Linear
Tool slots 8
Table surface T-slot and vacuum working table with 4 zone
Lubrication system Automatic lubrication system
Gantry structure Gantry moving
Structure New type thicker and bigger heavy duty welded frame and gantry
Transmission X,Y rack and pinion drive, Z Taiwan TBI ball screw
Rail Taiwan HIWIN Linear square guide #25
Vacuum pump 5.5kw air type vacuum pump (380V, 3Phase, 50Hz)
Dust collector 1.5kw new type double packet dust collector (380V, 3Phase, 50Hz)
Tool sensor Automatic tool sensor calibration

PS:All the working area and specifications can be customized according to your requests.

Features of auto tool change cnc router:

  • Effective working area: 1300*2500mm*200mm
  • Linear type automatic tool changer
  • 9kw Italy HSD ATC air cooling spindle
  • 11kw Taiwan Delta inverter
  • German SIEMENS control system
  • German SIEMENS 1kw servo system
  • 5.5KW air type vacuum pump
  • New type 1.5kw Dust collector system with two bag
  • Helical rack
  • Oil mist cooling
  • Taiwan TBI ball screw
  • Taiwan HIWIN square linear guide way for 25mm
  • Automatic Tool sensor calibration
  • Automatic oil lubrication system
  • Vacuum & T-slot working table
  • Japan Omron limit switch
  • France Schneider safety switch
  • MPG hand wheel

Applications:

  • Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials. Including marble, brass, steel, and other metallic material.
  • Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
  • Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
  • Architectural models: engraving fine window, fencing and wall patterns, etc.
  • Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
  • Label: engraving character, number, and other pattern on label for products and on product directly.
  • Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.

Product details of auto tool change cnc router:

Auto tool change ATC CNC Router 1325 woodworking router machine for door
