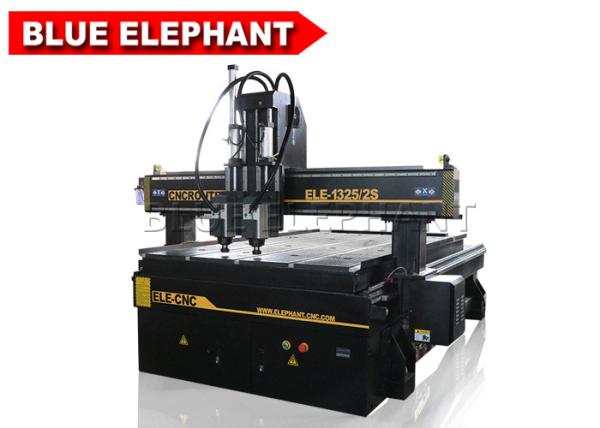

1325 2 Heads cnc router , furniture making machinery , router cnc woodworking with air cylinder
1325 2 Heads cnc router , furniture making machinery , router cnc woodworking with air cylinder
1325 2 Heads cnc router , furniture making machinery , router cnc woodworking with air cylinder
1325 2 Heads cnc router , furniture making machinery , router cnc woodworking with air cylinder
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO, SGS, BV, TUV
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $8,000 - 10,000 / Set
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
15-20 working days
Packaging Details :
Standard marine export plywood case
Voltage :
220V, 3Phase, 60Hz
Control system :
DSP A123 Control System
Spindle :
2 sets Italy HSD Air Cooling Spindle
Motor :
FL118 stepper motor
Driver :
Yako 2811 big driver
Inverter :
5.5kw Delta Inverter
Description

1325 2 heads cnc router , furniture making machinery , router cnc woodworking with air cylinder


Advantages of 2 heads cnc router:

  • heavy duty frame and gantry , very durable
  • original Italy HSD spindle 4.5KW, 2pcs, top brand in the world, best quality .
  • The machine has two spindles, they do different works, the two spindles work one by one, it is a simple automatic tool changer machine.


Parameters of 2 heads cnc router:

Descriptions Parameters
Modle ELE1325-2S
Working area 1300*2500*200mm
Control system Richauto DSP A123 control system
Working Voltage 220V, 3Ph, 60Hz (380V for optional)
Spindle 2 sets 4.5kw Italy HSD air cooling spindle
Spindle speed 0-18000rpm
Inverter 5.5kw Delta inverter
Motor and Driver FL118 stepper motor and Yako 2811 big driver
Table surface T-slot and vacuum working table
Structure New type thicker and bigger heavy duty welded frame and gantry
Lubrication system Automatic lubrication system
Transmission

X,Y axis: rack and pinion drive
Z axis: Taiwan TBI ball screw
X,Y,Z axis: Taiwan HIWIN linear square rail #20
Vacuum pump 7.5kw air type vacuum pump, 220V, 3Ph, 60Hz
Control box Inner box
Rotary device Diameters: 160mm, length: 2000mm
Software Artcam
Others Omron limit switch

PS:All the working area and specifications can be customized according to your requests.

Features of 2 heads cnc router:

  • Effective working area 1300*2500*200 mm
  • 2*4.5KW Italy HSD spindle ,18000 rpm
  • 5.5Kw DELTA inverter
  • Stepper motors FL118 and YAKO2811 drivers
  • DSPA123 control system
  • Rotary device :160x2000mm
  • HIWIN #20 linear square guide way for X,Y,Z axis
  • Taiwan TBI ball screw for Z axis
  • Vacuum &T-slot table
  • Tool sensor calibration
  • Japan OMRON limit switch for X,Y,Z axis
  • Type3 /Artcam software
  • 220V,3phase,60HZ
  • Automatic oil distributor


Applications:

apply for the wood , MDF acrylic etc cutting and engraving

Product details of 2 heads cnc router:

1325 2 Heads cnc router , furniture making machinery , router cnc woodworking with air cylinder
