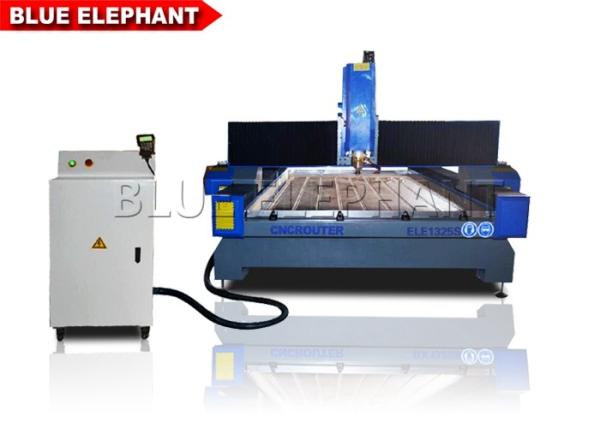

Precision Personalised 3d TombStone Engraving Machine Taiwan HIWIN Linear Rail
Precision Personalised 3d TombStone Engraving Machine Taiwan HIWIN Linear Rail
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province,China
MOQ :
1set
Price :
200sets per Month
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets per Month
Delivery Time :
6999-12999$
Packaging Details :
Standard marine export plywood case
X, Y Structure :
Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure :
Hiwin Rail Linear Bearings and Ball Screw
Spindle Power :
3KW water cooling spindle
Drive Motors :
Stepper System
Operating System :
DSP System(Options: Ncstudio/Mach3 PC Software)
Software Compatibility :
Type3/UcancameV9 Software, (Option: Artcam Software)
Description

Taiwan HIWIN linear rail , more stable and precision 3d stone cnc router / marble ,1325 stone cnc engraving machine

Why choose our product?

1 . Taiwan HIWIN linear rail,more stable and precision

2 . Japanese Omron limit switch

3 . Taiwan TBI ball screw

4 . T-slot table

5 . Configured with advanced DSP controlling system, independent power supply, rapid calculation, support transmitting files from USB flash disk directly

After-sale service:


1 , Within 7 days since your local customs clearance: if the cnc machine’s

any parts has any problems, we will change it free.
2 , Exceed 7 days since your local customs clearance but within warranty

period: if the cnc machine parts have any problems, we can change the old

machine parts to new ones free, but you should pay all the shipping cost.
3 , Exceed warranty period: if the cnc machine parts have any problems, we

can offer new machine parts with cost price and you also should pay all the shipping cost.
4 , We offer 24 hours technical support by call, email
5 , Our technician can give you remote guide online(Skype or MSN) if you have any question
6 , We can record videos of operating the laser machine
7 , Free training course in our factory
8 . Machine will be adjusted before it is delivered , operation disk/CD was included.

Parameters:

NO. Description Parameter
1 X,Y,Z Working Area 1300x2500x200mm
2 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
3 X,Y,Z Repositioning Accuracy ±0.03mm
4 Table Surface T-slot Table
5 Frame Cast steel Structure
6 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings
7 Z Structure Hiwin Rail Linear Bearings and Ball Screw
8 Max. Power Consumption 3Kw
9 Max. Rapid Travel Rate 20000mm/min
10 Max. Working Speed 10000mm/min
11 Spindle Power 3KW water cooling spindle
12 Spindle Speed 0-24000RPM
13 Drive Motors Stepper System
14 Working Voltage AC380V/50/60Hz,3PH (Option: 220V)
15 Command Language G Code
16 Operating System DSP System (Options: Ncstudio/Mach3 PC Software)
17 Computer Interface USB
18 Flash Memory 128M(U Disk)
19 Collet ER250
20 X,Y Resolution <0.01mm
21 Software Compatibility Type3/UcancameV9 Software, (Option: Artcam Software)
22 Running Environment Temperature 0 - 45 Centigrade
23 Relative Humidity

30% - 75%
