Two Stage Oilless Scroll Air Compressor , Laboratory Air Compressor
Two Stage Oilless Scroll Air Compressor , Laboratory Air Compressor
Specifications
Brand Name :
Shanghai Rotorcomp
Model Number :
RC-D42/08-S1
Certification :
ISO.TUV,CE,GS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, D/P, D/A
Supply Ability :
3,000 sets/per month
Delivery Time :
15-20 working days
Packaging Details :
Exported Wooden Package
Name :
Oilless Scroll Air Compressor
Type :
Two Stage
Capacity(m3/min) 8bar :
4.2
Power(kw) Motor :
38.5
In/outlet :
2
Noise :
78dB(A)
Dimension :
1350×1460×1660mm
Weight :
1280Kg
Usage :
Laboratory Air Compressor
Description

Two Stage Oilless Scroll Air Compressor , Laboratory Air Compressor

Oilless Scroll Air Compressor Introduction

Rotary Screw Air Compressor, screw rotor adopts a two-stage compression engine, is to use two groups of size is not consistent, reasonable distribution of pressure, lowering the pressure level at each level compression ratio. Reduce the leakage and improve the volumetric, reduce the bearing load, improve the bearing life, prolong the life of the host. The inlet of the main engine adopts the axial inlet, and the intake noise is reduced. Direct drive, high efficiency, low vibration and low noise.

Oilless Scroll Air Compressor Features

Innovative SuperSilent body housing

Consistent maintenance friendly design

Range from 3.7kW to 55 kW

Easy to move out the elements

Oilless Scroll Air Compressor Parameters

Model Capacity(m3/min) Power(kw) In/outlet Noise Dimension Weight
8bar Motor dB(A) L×W×H in mm kg
RC-D12/08-S1 1.2 11 1/2 65 1250×760×1090 440
RC-D18/08-S1 1.8 16.5 3/4 68 1250×760×1560 630
RC-D24/08-S1 2.4 22 1 70 1250×1360×1090 820
RC-D30/08-S1 3.0 27.5 1-1/2 72 1250×1360×1560 1010
RC-D36/08-S1 3.6 33 1-1/2 75 1300×1380×1660 1200
RC-D42/08-S1 4.2 38.5 2 78 1350×1460×1660 1280
RC-D48/08-S1 4.8 44 2 78 1350×1460×1660 1360
RC-D54/08-S1 5.4 49.5 2-1/2 81 1400×1520×1780 1480
RC-D60/08-S1 6.0 55 2-1/2 81 1400×1520×1780 1600

Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency converters (optional).

4. 1 year warranty, 2 years warranty for air end

Why to choose OOilless Scroll Air Compressor ?

  1. More simple structure,less wearing part
  2. lower maintenance cost and cheaper price
  3. lower noise and less vibration
  4. Gas separation system equipment(adsorption&membrance separation of oxygen and nitrogen)

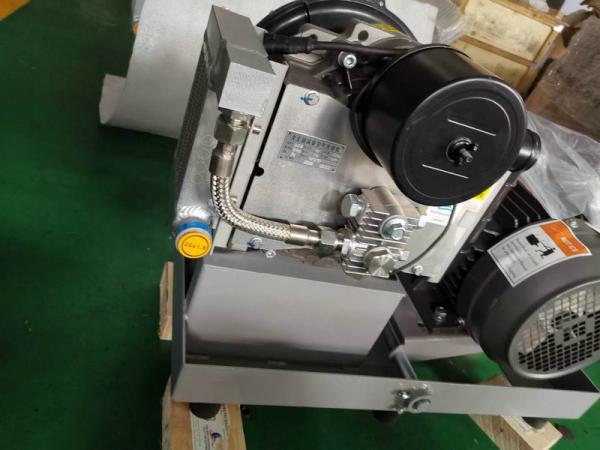

Oilless Scroll Air Compressor Details

Two Stage Oilless Scroll Air Compressor , Laboratory Air Compressor
