Specifications
Model Number :
CS-2A-3000
Heating Uniformity Advantage :
Full wrapped thermal insulation + multi-channel circulating hot air, tiny internal temperature difference to avoid uneven tank wall thickness
Certification :
CE/ISO9001
Place of Origin :
China Jiangsu
Applicable Venues :
Mass Production Of Large Hollow Plastic Storage Tanks, Thick-Wall Industrial Plastic Containers, Oversized Sanitation Equipment Housings, Large Floating Plastic Buoys, Big Hollow Plastic Engineering Parts
MOQ :
1 Acre/Acres
Packaging Details :
Wooden box
Load Bearing Advantage :
Reinforced alloy heavy arms + independent high-torque drive, support full-load heavy large tank molds for long-time operation
Supply Ability :
Can produce 3-5 machines per month
Condition :
New
Large Space Advantage :
Extra wide & long heating cabin, compatible with oversized molds that carousel machines cannot process
Price :
Advisory Service
Dimension(L*W*H) :
Consultation service
Brand :
YINGCHUANG
Delivery Time :
30--60 work days
Product Name :
Large Heating Chamber CS-2A-3000 Shuttle Rotomolder, Heavy Duty Double Arm Rotational Molding Machine For Big Plastic Tanks
Brand Name :
YingChuang
Description

Large Heating Chamber CS-2A-3000 Shuttle Rotomolder, Heavy Duty Double Arm Rotational Molding Machine For Big Plastic Tanks


Product Overview

Large Heating Chamber CS-2A-3000 Shuttle Rotomolder, Heavy Duty Double Arm Rotational Molding Machine For Big Plastic Tanks is a heavy-duty shuttle rotomolding equipment independently developed and manufactured by YINGCHUANG Rotomolding. It adopts mature double-arm shuttle circulation structure, equipped with ultra-large integrated sealed heating cabin, independent cooling station and two heavy-load mold rotating arms, specially designed for mass production of large hollow plastic products such as large plastic storage tanks, thick-wall plastic containers and oversized equipment housings.

The CS-2A-3000 shuttle rotomolder features super-large effective heating space, which can match oversized rotomolds that carousel machines cannot hold. Each rotating arm is equipped with high-torque heavy-duty drive system, with strong bearing capacity and stable rotation under full load. The heating cabin adopts full-surround high-density thermal insulation layer and optimized hot air circulating system, paired with intelligent split constant temperature PLC control system, uniform internal temperature, low temperature difference, stable molding quality for large thick-wall plastic parts. We support full customized upgrade services for arm load, heating power, air/water cooling mode, control program and overhead crane matching platform according to customer workshop layout and large tank production demands.


Key Features & Benefits

  1. Extra Large Sealed Heating Cabin, Suitable For Oversized Plastic Tank Molds

    Expanded integrated closed heating chamber with wide internal space, compatible with various large-size plastic tank molds, solving the space limitation problem of small rotomolding equipment and meeting the production demand of big capacity hollow plastic vessels.
  2. Heavy-Duty Double Arm Shuttle Circulation Structure, High Continuous Production Efficiency

    Two independent heavy-load rotating arms alternately send molds into heating and cooling areas for non-stop cyclic production. Heating and cooling processes run simultaneously without waiting downtime, effectively shortening single large tank molding cycle and lifting factory daily output of large plastic products.
  3. High-Torque Independent Drive System, Strong Bearing & Stable Full-Load Rotation

    Each rotating arm is fitted with separate heavy-duty drive motor and reinforced speed reducer, strong load capacity to bear large weight molds of big plastic tanks. Rotation runs smoothly without jitter under long-time full-load high-temperature operation, ensuring uniform melting of thick plastic raw materials.
  4. Full Insulation Hot Air Circulation Heating, Small Cabin Temperature Difference

    The heating cabin is wrapped with thick high-temperature resistant thermal insulation cotton all around, internal multi-channel hot air circulation duct design to realize all-round uniform heat radiation. Temperature difference inside cabin is controlled within a tiny range, effectively avoiding uneven wall thickness, bubbles and cold spots on large plastic tanks.
  5. Complete Safety Auxiliary Platform & Wide Customization Range

Equipped with complete multi-layer operating stair stand, safety isolation protective door and reserved overhead crane matching interface for convenient loading/unloading of heavy large molds. Machine configurations including arm bearing load, heating power, cooling mode and PLC automatic control logic can be fully customized to match diversified production demands of large plastic tank manufacturers.


Specifications:



Model No		 Floor Size Biggesttank made
L(m) W(m) H(m) Operation platform
CS-2A-1000 4 2.8 2 × 150L
CS-2A-1600 8 3.6 2.8 × 500L
CS-2A-2000 10 4.6 3.2 × 1000L
CS-2A-2500 12.5 6.2 4 √ 2500L
CS-2A-3000 14 7 4.2 √ 4500L
CS-2A-3500 16.5 8 4.5 √ 7000L
CS-2A-4000 17.5 9 5.2 √ 10000L
CS-2A-4500 19 10 5.9 √ 14000L
CS-2A-5000 21 11 6.5 √ 20000L
CS-2A-5500 23 12 7 √ 25000L
CS-2A-6000 24.5 13 7.2 √ 35000L
CS-2A-6500 27 15 8 √ 40000L
CS-2A-7500 32 17 9.5 √ 50000L

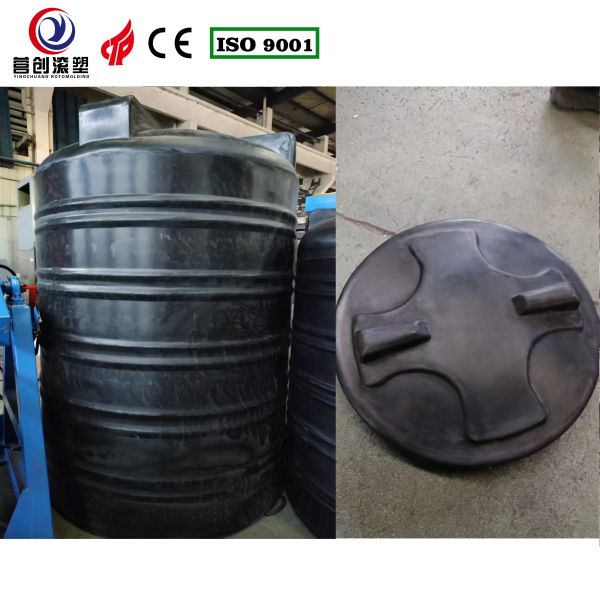

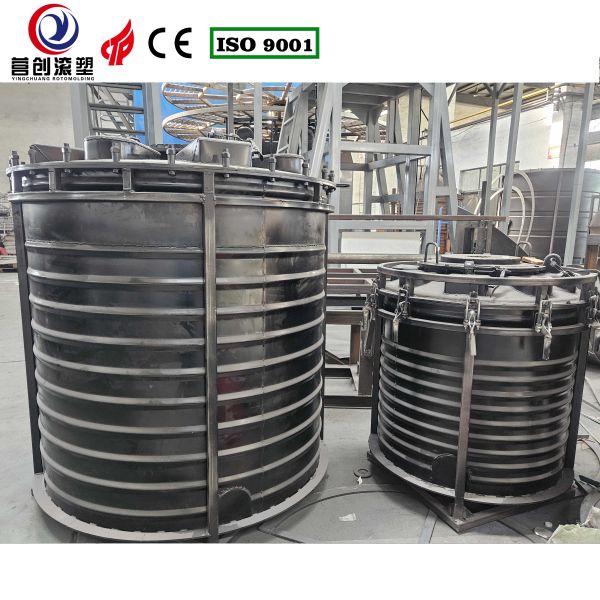

Photos for reference
