Specifications
Place of Origin :
Fujian, China
Brand Name :
other
Model Number :
a059
Power Source :
Electric
Warranty :
1 Year
After-sale Service :
Online technical support
Power Supply Mode :
Plug-in
Material :
plastic, Metal
Shelf Life :
3 years
Quality Certification :
CB
Instrument classification :
Class I
Safety standard :
None
Description
Product Description

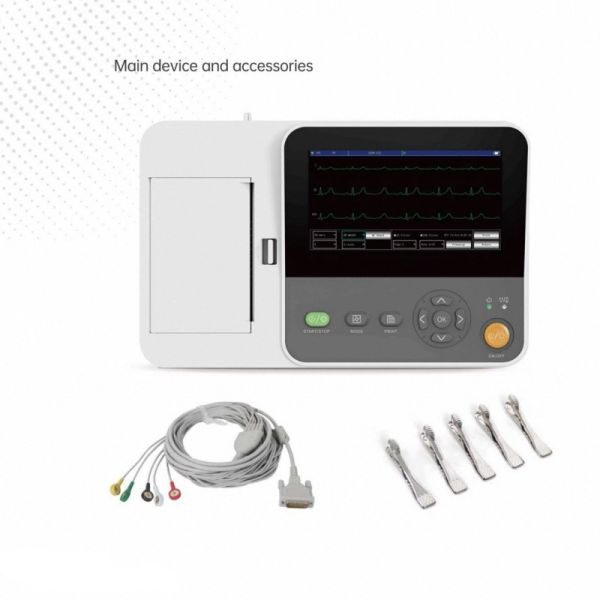

User-Friendly ECG Machine for Cardiac Screening for Community Health Centers and Veterinary Monitoring Devices
User-Friendly ECG Machine for Cardiac Screening for Community Health Centers and Veterinary Monitoring Devices
User-Friendly ECG Machine for Cardiac Screening for Community Health Centers and Veterinary Monitoring Devices
User-Friendly ECG Machine for Cardiac Screening for Community Health Centers and Veterinary Monitoring Devices
Specification
Port
Serial port/External Input & Output
×
LAN port
×
USB port
√
SD card port
×
VGA output
×
Network
Wire network
×
Wireless network
×
ECG main unit and processing
Lead
12-lead (STD)
Channel
8- CHANNEL
ECG analysis sampling rate
1k Hz
digital sampling rate
32k Hz
Acquisition/Sample mode
simultaneously 12 leads
dynamic range/measurement range
≤±5 mV pp
resolution
24 bits
frequency response
0.01Hz ~ 300Hz (-3dB)
Baseline drift filter
[0.01Hz][0.05Hz]/[0.50Hz]/[1.00Hz]/[0.15Hz]/[0.25Hz]/[0.32Hz]/[0.67Hz]
ECG Filter
EMG Filter
25Hz/35Hz/OFF
AC filter
50Hz/60Hz/OFF
Low pass filter
150Hz/100Hz/75Hz/OFF
CMRR
>123dB
Time constant
≥3.2s
AD conversion
24 bits
input impedance
≥100MΩ(1Hz)
Polarization Voltage
±950 mV ±5%
Internal noise
≤12 μVp-p
Patient leakage
NC: <10μA (AC) / <10μA (DC)/ SFC <50μA (AC) / <50μA (DC)
