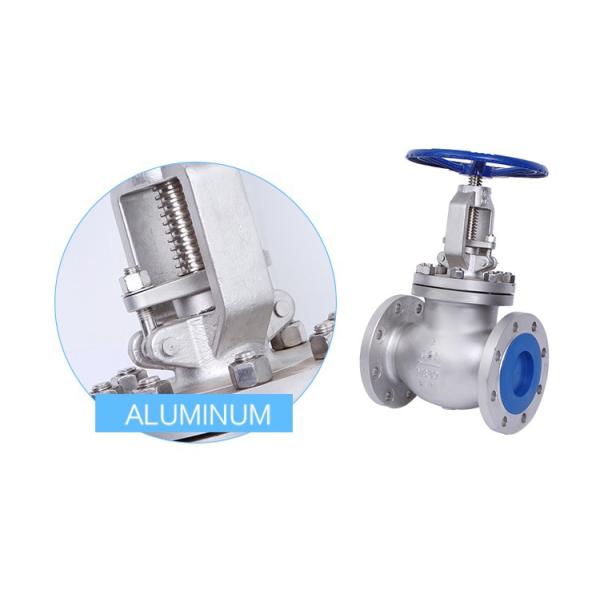

Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Durable stainless steel flanged globe valve ANSI 150LBS
Specifications
Brand Name :
Jieyi
Model Number :
JYCG201ANSI, DN100
Certification :
ISO9001 GS
Place of Origin :
Chian
MOQ :
2 pcs
Price :
USD 50 ~ 300 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs/ month
Delivery Time :
5 ~ 8 days
Packaging Details :
Carton packaging or Plywood wooden box packaging
Type :
Ball Valve, Gate Valves, Float Valves, Swing, Lift, Wafer
Application :
General
Temperature of Media :
High / Medium / Low / Normal Temperature
Power :
Manual
Media :
Water, Gas, Oil, etc
Port size :
1/2"-8"
Structure :
Lift Type
Product name :
Globe Valve
Port :
Full-port
Connection :
Flange, Welded, Wafer
Standard :
DIN, ANSI, JIS, EN
Body, Bonnet :
Carbon steel. Stainless Steel 316
Stem :
2Cr13, stainless steel
Gasket :
Stainless steel + PTFE + Flexible graphite
Packing :
PTFE
OEM :
Welcome
Standard or Nonstandard :
Standard
Description

Durable stainless steel flanged connection globe valve ANSI 150LBS

The globe valve is a tool that relies on the pressure of the valve stem to make the sealing surface of the disc and the sealing surface of the valve seat closely fit to prevent the flow of the medium. It is a forced sealing valve and is one of the most widely used valves.

According to the direction of the passage, the globe valve is divided into four types: straight-through globe valve, direct-flow globe valve, angle globe valve and plunger globe valve.

Globe Valve Features

Name Durable stainless steel flanged globe valve ANSI 150LBS
Model CG201ANSI
Material CF8M/CF8/WCB
Size 1/2`` to 12``
Pressure 150LBS
Temperature -20 ~ 200℃
Whether the standard parts yes
Characteristic features simple structure, good design and sealing, easy for maintenance. On and off of stem is of small working stroke, with short stroke time, and reliable cutting action. You don't have to remove the valve chest to replace sealing elements.
selling point Offer high cycle life

The globe valve, also called the cut-off valve, is one of the most widely used valves. The reason why it is so popular is that the friction between the sealing surfaces is small during the opening and closing process, which is relatively durable, has a low opening height and is easy to manufacture.

Data Sheet

Product Detail

Type Ball valve, Gate Valves, Float Valves, Swing, Lift, Wafer
Brand Name Jieyi
Model Number JYCG201ANSI, DN100
Application Flow system
Temperature of Media High/Low/Medium/Normal Temperature
Power Manual
Media Water, Gas, Oil,etc
Port Size 1/2'' ~ 8''
Structure Lift type
Product name Globe Valve
Connection Flange / Welded / Wafer
Standard DIN, ANSI, JIS. EN
Body, Bonnet Stainless Steel / Carbon steel
Gasket Stainless steel + PTFE + Flexible graphite
Standard or Nonstandard Standard
Port Full-port
Stem 2Cr13, stainless steel

Globe Valve properties:

Durable stainless steel flanged globe valve ANSI 150LBS

Durable stainless steel flanged globe valve ANSI 150LBS

Product Show

Durable stainless steel flanged globe valve ANSI 150LBSDurable stainless steel flanged globe valve ANSI 150LBSDurable stainless steel flanged globe valve ANSI 150LBSDurable stainless steel flanged globe valve ANSI 150LBS

Durable stainless steel flanged globe valve ANSI 150LBS

Workshop&CertificationDurable stainless steel flanged globe valve ANSI 150LBSDurable stainless steel flanged globe valve ANSI 150LBS

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.But we have our own foreign trade team!

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: General is 100%TT deposit, or 30% advance payment, balance paid before shipment.

Q: Could you specially design and produce for clients?

A: Yes,Of course! We have experienced engineers, we can produce according to your requirements or drawings!

Contact us

If you have any needs, please feel free to contact us. We can produce according to your samples or drawings, we can also customize the design drawings for you according to your requirements, and then send them to you for confirmation!

Whatsapp / Wechat: 86-183 6668 9153

Skype: jieyi2021

E-mail: jacky@tzjieyi.com

Website: http://www.tzjieyi.com
