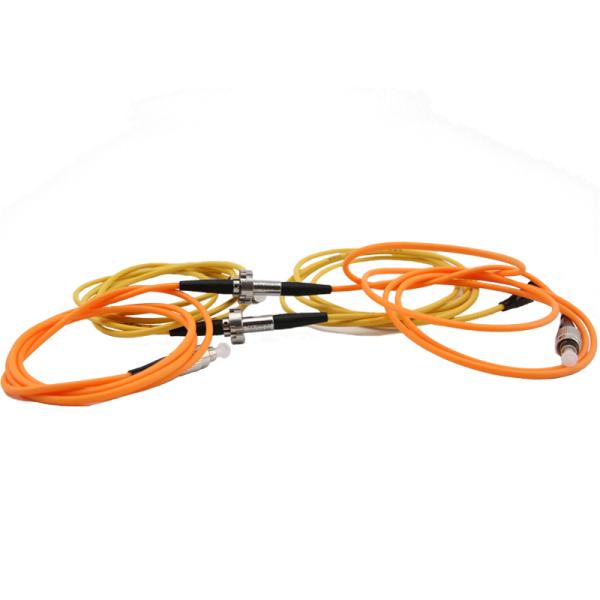

1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
Specifications
Place of Origin :
Guangdong, China
Brand Name :
JINPAT
Model Number :
LPFO-01A
MOQ :
1
Price :
$190
Fiber types :
SM or MM
Channel number :
1
Wavelength range :
SM:1270-1650nm, MM:650-1300nm
Insertion loss :
<2dB
Insertion loss ripple :
<0.5dB
Return loss :
≥40dB
Max Optical power :
23dBm
Maximum speed :
2000rpm
Working temperature :
-45～+80℃
Storage temperature :
-55~+85℃
Weight :
10g (No tail cable and connection included)
IP rating :
IP65 or IP68
Life cycle :
>200 million revolutions
Connector types :
FC/SC/ST/LC (PC or APC)
Jacket types :
0.9/2/3mm (Kevlar/PVC or Armor)
Description
Product overview

LPFO-01A fiber optic rotary joints

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.
Product description
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
LPFO-01A
Adopts optical fiber as transmission media, ensures no leakage, no electrical interference. Compact size with light weight.
No contact, no friction, super long life over 200,000,000 revolutions.
Supports hybrid transmission with eletrical slip ring. Hybrid optoelectronic transmission of power and high speed data.
With pressure compensator, intact sealing. Can work under harsh environment like 7000 meters under water or the space.
Product parameter
Specifications
Fiber types
SM or MM
Connector types
F C/SC/ST/LC(PC or APC)
Channel number
1
Estimated life cycle
＞200 million revolutions
Wavelength range
SM:1270-1650nm
MM:650-1300nm
Vibration
MIL-STD-167-1A
Insertion loss
＜2dB
Mechanical shock
MIL-STD-810G
Insertion loss ripple
＜0.5dB
IP rating
IP65 or IP68
Return loss
≥40dB
Maximum speed
2000rpm
Max Optical power
23dBm
Working temperature
-45～+80℃
Package style
Pigtails on both ends
Storage temperature
-55~+85℃
Weight, approx
10g(No tail cable andconnection included)
Jacket types
0.9/2/3mm(Kevlar/PVC or Armor)
Product outline drawing
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
Application industry
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
Sales and service network
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68
Other products
1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68

Capsule Slip Rings

1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68

through bore slip rings

1 Channel Fiber Optic Slip Ring SM MM 2000rpm IP65 IP68

fiber optic rotary joints
