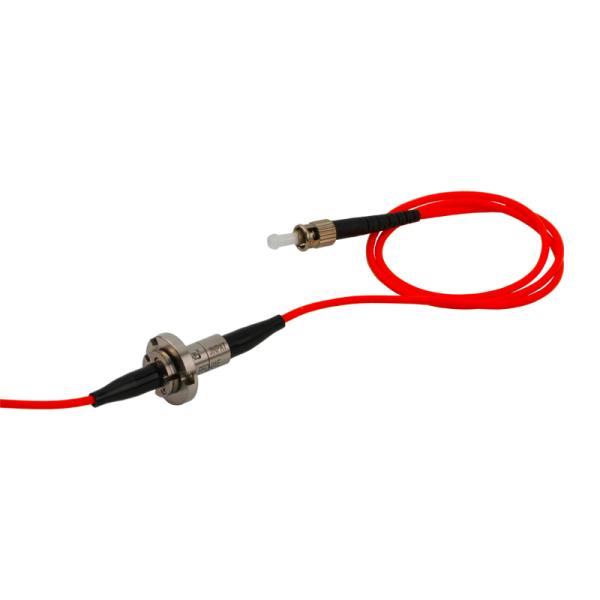

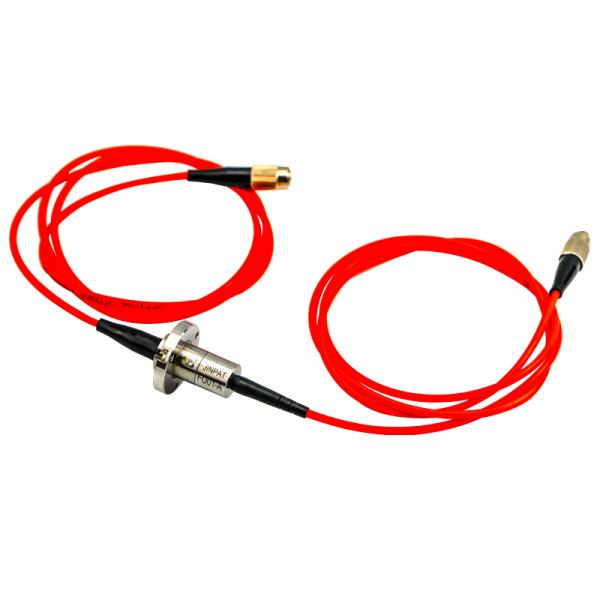

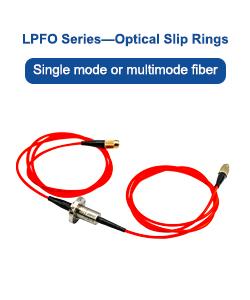

IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ
IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ
IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ
IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ
IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ
IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ
Specifications
Place of Origin :
Guangdong, China
Brand Name :
JINPAT
Model Number :
LPFO-01E
MOQ :
1
Price :
$338
Housing Material :
stainless steel
Circuits :
1
Wavelength Range :
650-1650 nm
Insertion Loss :
<2dB
Working Speed :
2000rpm
Fiber Types :
SM or MM
Connector Types :
FC/SC/ST/LC(PC or APC)
Channel Number :
1
Life Cycle :
>200 million revolutions
Insertion Loss Ripple :
<0.5dB
Weight :
40g
Return Loss :
≥40dB
Max Optical Power :
23dBm
Working Temperature :
-45~+75℃
Storage Temperature :
-55~+85℃
Description
Description

The LPFO-01E The LPFO-01E rotary joint features optic fiber as the media for data transmission. The fiber connector is designed perfectly for transmitting a large capacity of data and signal from stationary to rotating parts. It has an extremely low insertion loss but considerably large return loss. Besides, no contact or friction, it can achieve transmission in a combination of various signals with a high bandwidth, even doubled when matched with wavelength division multiplexer.

Features

  • Built-in interface supports quick plug in
  • Low insertion loss but high return loss
  • Transmission with no leakage or electromagnetic interference for a long distance
  • High transmitting bandwidth
  • No contact or friction
  • Small and light figure
  • Optional mode for multi-channel parts
  • Various package types
  • Water and dust proof, vibration and shock resistant
  • High protection level

Advantages

  • Long service life
  • Competitive cost
  • Flexible connector for fiber wire terminal
  • Rapid Delivery
  • Custom solution

Specification

Specifications
Fiber types SM or MM Connector types FC/SC/ST/LC(PC or APC)
Channel number 1 Estimated life cycle >200 million revolutions
Wavelength range SM:1270-1650nm
MM:650-1300nm		 Vibration MIL-STD-167-1A
Insertion loss <2dB Mechanical shock MIL-STD-810G
Insertion loss ripple <0.5dB IP rating IP65 or IP68
Weight, approx 40g(No tail cable andconnection included) Jacket types 0.9/2/3mm(Kevlar/TPU or Armor)
Return loss ≥40dB Maximum speed 2000rpm or More
Max Optical power 23dBm Working temperature -45~+75℃
Package style Pigtails on both ends Storage temperature -55~+85℃

IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ

Main Application

  • Robotics
  • Turrets
  • Radar System
  • Seafloor Operation System
  • Material Conveying System
Our Advantages

Welcome to JINPAT Electronics

Providing free custom slip rings solutions,creating propulsion for your technology

  • With a large plant of over 12,000 square meters and more than 500 employees.
  • The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.
  • Long-term cooperation with global famous enterprises and agents all over the world.
  • With Over 10,000 designs with success in civil, military, commercial and industrial applications.
  • Founded in 1996, with more than 20 years of production and R & D experience.
  • Providing free custom slip rings solutions,which can be suitable for a variety of equipment
  • Fast delivery

IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ

Typical Application

IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ

Company Information

IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJIP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJIP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJIP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3.What kinds of slip rings do we offer

  • Electrical Slip rings (capsule slip ring,through-hore slip ring,miniture slip ring, etc)
  • Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
