Specifications
Brand Name :
JINPAT
Model Number :
LPFO-05D
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
500 pieces / week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Specifications Channel :
CH1-CH5
Life Time,Min :
5 Million Revolutions
Body Material :
Alumillion Alloy
Case Surface Finish :
Conductive Oxidation
IP Protection Level :
IP40
IP Protection Level :
IP40
Rotational Torque :
0.1Nm
Lsolation :
55dB
Description

The LPHF-05D is a compact, high-performance RF rotary joint developed by JINPAT, designed for applications requiring stable, high-frequency signal transmission in dynamic environments. With support for up to 5.25GHz across 5 independent channels, it ensures efficient data and power transfer in space-constrained, high-reliability systems.


Built with precision-engineered materials and advanced EMI/RFI suppression, the LPHF-05D offers superior durability, low signal loss, and high integration flexibility. It also supports multiple connector types and can be customized for hybrid configurations with electrical slip rings.

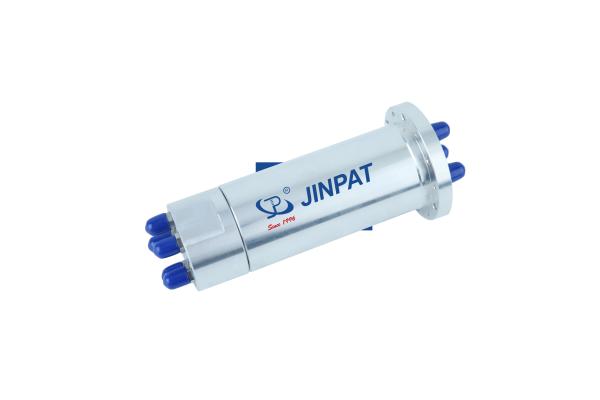

5-Channel High-Frequency Slip Ring 5.25GHz IP40 30rpm
Features:


◎ High-Frequency Support: Handles RF signal transmission up to 5.25GHz, ideal for real-
time monitoring and high-speed data exchange.
◎ EMI/RFI Protection: Advanced shielding and filtering ensure stable performance in noisy
environments.
◎ Multi-Channel Design: 5 channels for simultaneous transmission of RF signals and
power, optimizing system integration.
◎ Durable Build: Precision-machined with high-strength alloys for long-term reliability
under continuous rotation.
◎ Fast Customization: Supports 12 connector types (SMA, N, BNC, etc.) with rapid,
tailored solutions.
◎ Hybrid Integration: Can be combined with electrical slip rings for mixed signal and
power transmission needs.


Typical Applications

◎ High-Definition Video Surveillance Systems

◎ Medical Engineering Equipment

◎ Radar Systems

◎ Electronic Countermeasures Systems

◎ Satellite Communication Systems

◎ High-End Robotics

Electro-Optical Pod

For integrated solutions with electrical slip rings or additional signal transmission requirements, please contact us for a customized solution tailored to your needs.

5-Channel High-Frequency Slip Ring 5.25GHz IP40 30rpm





Specifications
Channel CH1 CH2 CH3 CH4 CH5 Starting Torque 0.3Nm
Interface Type SMA-F(50Ω) SMA-F(50Ω) SMA-F(50Ω) SMA-F(50Ω) SMA-F(50Ω) Rotational Torque 0.1Nm
Type I I I I I Rotating Speed,Max. 30 rpm
Frequency Range DC-5.25GHz DC-5.25GHz DC-5.25GHz DC-5.25GHz DC-5.25GHz Life Time,Min 5 Million Revolutions
Peak Power,Max. 200W 200W 200W 200W 200W Body Material Alumillion Alloy
Average Power 10W 10W 10W 10W 10W Case Surface Finish Conductive Oxidation
VSWR,Max 2.0 2.0 2.0 2.0 2.5 Weight,Approx 0.5 kg
VSWR WOW 0.1 0.3 0.3 0.3 0.3 IP Protection Level IP40
Insertion Loss,Max. 1.5dB 1.5dB 1.5dB 1.5dB 1.5dB Operation Temperature -40~+65°C

Insertion Loss

WOW

0.15dB 0.3dB 0.3dB 0.3dB 0.3dB Storage Temperature -50~+70°C
Lsolation 55dB
