Description

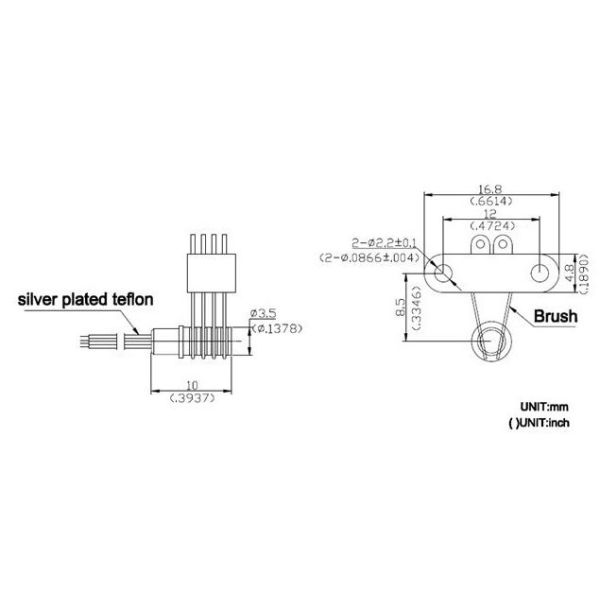

Sometimes a self-contained"capsule" slip ring is not practical due to system size constraints or cost limitations.We can provide the slip ring(rotor) and brush block(stator) as separate components to be mated by the customer in their system. The rotor is supplied in a drum configuration which features

consecutive individual rings along the axis of rotation.

The LPS-04 separate slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Quick detail

Features

• 4 circuits models
• Speed up to 200 rpm continuous
• Gold-Gold contacts
• 250mm standard lead lengths
• Compatible with data bus protocols
• Sealed units are available
• Flexible, color-coded, silver-plated, lead wires
• Precision ball bearings meet or exceed life requirements for most commercial applications

Specification

Advantage

• Low torque minimizes system torque budget
• Compact design to fit in the most demanding space.
• Smooth running
• Low electrical noise
• Quick shipment per your urgent requirement
• 360°continuous rotation
• High bandwidth transfer capability

Welcome to JINPAT Electronics

Providing free custom slip rings solutions,creating propulsion for your technology

• With a large plant of over 12,000 square meters and more than 500 employees.
• The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.
• Long-term cooperation with global famous enterprises and agents all over the world.
• With Over 10,000 designs with success in civil, military, commercial and industrial applications.
• Founded in 1996, with more than 20 years of production and R & D experience.
• Providing free custom slip rings solutions,which can be suitable for a variety of equipment
• Fast delivery

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3.What kinds of slip rings do we offer

• Electrical Slip rings (capsule slip ring,through-hore slip ring,miniture slip ring, etc)
• Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)
• Pneumatic/Hydraulic Rotary Unions
• Custom Slip Rings
• Large volume series

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
