6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment
6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment
Specifications
Place of Origin :
China
Brand Name :
JINPAT
Model Number :
LPS-06
MOQ :
10pcs
Price :
Negotiable
Certification :
ISO/CE/RoHS/UL
Circuit Number :
6
Current Rating :
2A
Voltage :
240 VAC
Working Speed :
0~300 rpm
Working Temperature :
-20~+60℃
Dielectric Strength :
500V@50Hz between circuits
Insulation :
100MΩ@500VDC
Contact Material :
Precious metal
Wire Size :
28# silver plated copper Teflon UL
Lead Wire Length :
Rotor:250±5mm
Style :
separate slip ring
Stator Connection :
Optional
Wire Type :
Color-coded lead wires
Interface Material :
Gold contacts
Installation Type :
Easy to install
Description

Bargain Price Only in Alibaba

Description

The LPS-06 separate slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPS-06 unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Features

  • Stator and rotor separate from each other
  • Transmit power, combination of weak signals
  • Optional stator connecting way and shape
  • Low resistance
  • Easy to install
  • Suitable for small space

Advantages

  • Long life span
  • Prompt Delivery
  • Flexible customization

Specification

Circuits 6
Current Rating 2A
Voltage 240 VAC
Dielectric Strength 500V@50Hz between circuits
Insulation 100MΩ@500VDC
Working Speed 0~300 RPM
Contact Precious metal
Wire Size

28# silver plated copper Teflon UL
Lead Wire Length Rotor:250±5mm
Working Temperature -20~+60℃

Main Application

  • Electric devices
  • CT machine
  • Mini robots
  • LED industry
  • Mini-type devices

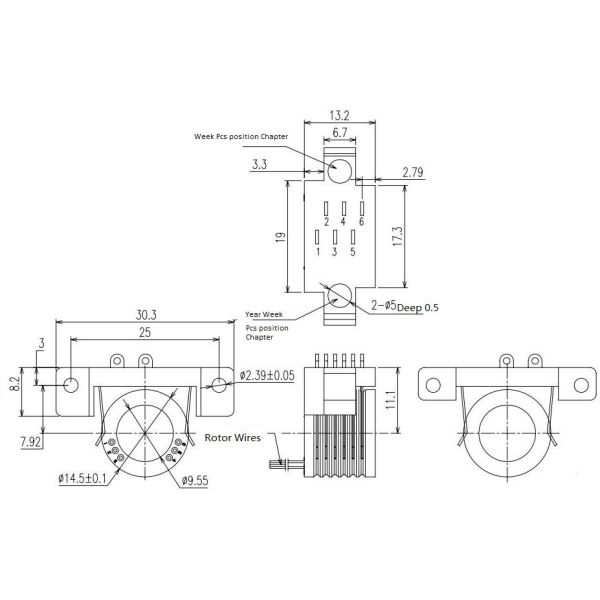

Outline Drawing

6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment

Product Display

6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment

Company Introduction

JINPAT Electronics, founded since 1996, is a leading manufacturer of slip rings, who has been committed to developing and manufacturing a large variety of industrial slip rings applied to many fields. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring are off-the-shelf units. Besides of these, customization is supported to cater to different application in that electrical rotary joints can be designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth. All the products have been secured by our quality management system, certificated by the IS09001:2008/ ISO14001:2015.

Our Advantages

Welcome to JINPAT Electronics

Providing free custom slip rings solutions,creating propulsion for your technology

  • With a large plant of over 12,000 square meters and more than 500 employees.
  • The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.
  • Long-term cooperation with global famous enterprises and agents all over the world.
  • With Over 10,000 designs with success in civil, military, commercial and industrial applications.
  • Founded in 1996, with more than 20 years of production and R & D experience.
  • Providing free custom slip rings solutions,which can be suitable for a variety of equipment
  • Fast delivery
