High Speed Capsule Slip Ring IP40 Low Electrical Noise For CCTV Equipment

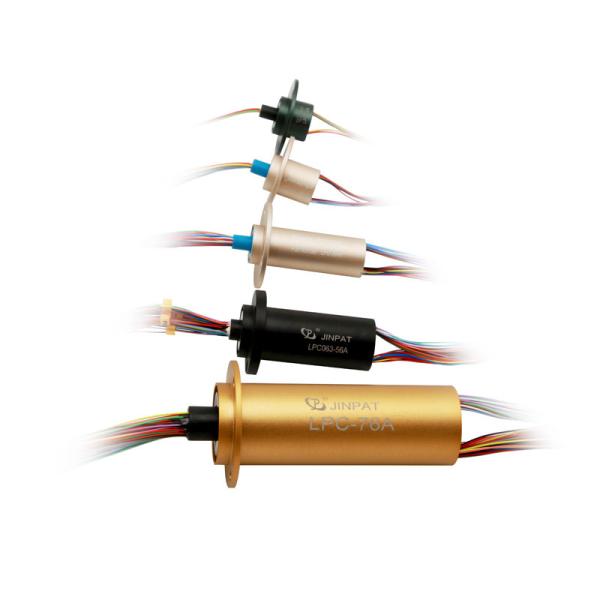

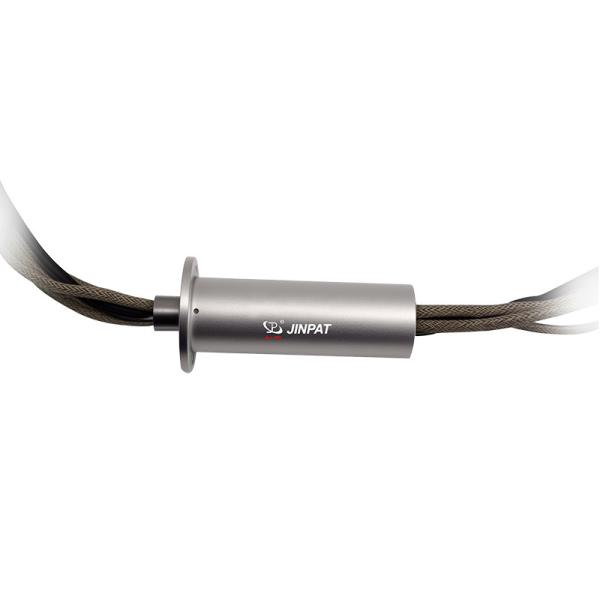

LPC-30T Capsule Slip Ring

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s a key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

Benefits:

◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth running

◆ Low electrical noise

◆ Quick shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability

Application picture

Cooperative Customer Case

Company introduction

JINPAT has 30 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.

It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.

Slip Ring FAQS

What Is a Slip Ring and How Does It Work?

A slip ring is an electromechanical device that enables the transmission of power, electrical signals, or data from a stationary structure to a rotating component. It consists of conductive rings and brushes, allowing for continuous 360° rotation without tangling wires. Slip rings are essential in systems requiring unlimited rotation while maintaining an electrical connection, such as in radar systems, rotating platforms, and robotic arms.

How Can I Choose the Right Slip Ring for My Application?

To select the right slip ring, consider the following key factors:

- Number and type of circuits (power, signal, data, fiber optic,RF, etc.)

- Current and voltage ratings

- Rotational speed and operational lifespan

- Installation requirements (through-bore, capsule, flange-mounted, etc.)

- Environmental conditions (temperature, humidity, IP rating)

For custom requirements, JINPAT offers tailored solutions based on your specific technical parameters.

Do You Offer Electrical Slip Ring and Fluid Rotary Union Combination Assemblies?

Yes. JINPAT offers integrated solutions that combine electrical slip rings with pneumatic or hydraulic rotary unions in a single assembly, allowing simultaneous transmission of power, signals, fluids, and gases. In addition to these, we also provide advanced options such as Fiber Optic Rotary Joints (FORJs) for high-speed data transmission and High Frequency Rotary Joints (HFRJs) for RF and microwave signal transfer.

We offer both standard models and fully customized assemblies tailored to your exact technical and environmental requirements.

Which Industries Typically Use JINPAT Slip Rings?

JINPAT slip rings are widely used across various industries, including:

- Aerospace & Defense (Radar Systems, antennas, targeting systems)

- Medical Equipment (CT scanners, surgical robots)

- Wind Energy (pitch control systems)

- Automation & Robotics (rotating platforms, robotic arms)

- Marine & onshore engineering machinery(cranes, excavators, oil drilling platforms)

- Broadcast & Surveillance (pan-tilt cameras, gimbals)

Our products are known for high reliability, compact design, and superior performance.

What Is the Typical Lifespan of a Slip Ring? What Factors Affect Its Longevity?

The lifespan of a slip ring can range from several million to 200 million of rotations, depending on factors such as:

- Rotational speed and duty cycle

- Electrical load and signal type

- Working environment (dust, moisture, vibration)

- Material quality and brush contact design

JINPAT slip rings are engineered for long service life and low maintenance, and we also provide long-life series for high-end industrial applications.
