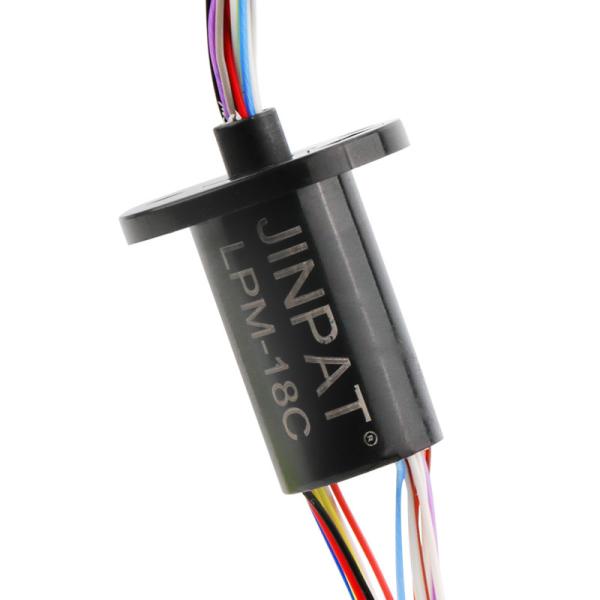

18 Circuits 250 Rpm Capsule Slip Ring with Gold to Gold Contact for Mechanical Arms and Biochemical Analyzers
18 Circuits 250 Rpm Capsule Slip Ring with Gold to Gold Contact for Mechanical Arms and Biochemical Analyzers
18 Circuits 250 Rpm Capsule Slip Ring with Gold to Gold Contact for Mechanical Arms and Biochemical Analyzers
18 Circuits 250 Rpm Capsule Slip Ring with Gold to Gold Contact for Mechanical Arms and Biochemical Analyzers
18 Circuits 250 Rpm Capsule Slip Ring with Gold to Gold Contact for Mechanical Arms and Biochemical Analyzers
18 Circuits 250 Rpm Capsule Slip Ring with Gold to Gold Contact for Mechanical Arms and Biochemical Analyzers
Specifications
Brand Name :
JINPAT
Model Number :
LPM-18C
Certification :
ISO/CE/RoHS/UL
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
50K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Operating Speed :
0-250 rpm
Total Circuits :
18
Contact Material :
Gold to Gold
Lead Length :
Standard 250 mm (9.843 inch)
Electrical Noise :
1 mΩMin
Application :
Mechanical Arms/Biochemical analyzer
Insulation Resistance :
100 MΩ @ 500 VDC
Description

18 Circuits 250 Rpm Capsule Slip Ring Custom Solutions Available, Mass Production

Bomb disposal is one of the most difficult task for human beings, which might breed many dangers. So bomb disposal robots are developed to assist human in such task. In fact, bomb disposal robot is actually a kind of unmanned vehicle that still need human to operate outside of the field. A bomb disposal robot is usually loaded with a high definition camera that helps to detect the environment. Such device should be allowed to rotate in 360-degree so as to provide a full-round view of the surroundings. And most importantly, the robot arm is the key to conduct the actual dismantling of a bomb. To enable a flexible and accurate movement of the robot arm, a slip ring is needed.

JINPAT Electronics is a slip ring manufacturer with abundant experience in producing slip rings for various purposes. As for bomb disposal robots, JINPAT also provides unique solutions.

JINPAT optoelectronic slip ring is a good choice to connect the high definition camera with the robot body. JINPAT LPT000-6402-E3-FO01 is able to transmit power and optical signals. So it is able to transmit angle signal to control the movement of the camera head while transmitting the high definition video signals back to the processor. It consists of two mules, namely the electrical module and the optical module. For the former unit, there are 64 2A power channels and 1 Gigabit Ethernet channel. As for the latter, it adopts a single mode optical rotary joint with 1 channel. With the assistance of this optoelectronic slip ring, the bomb disposal robot can capture a vivid and all-round view of the site.


Specifications
Operating Speed 0-250 rpm
Circuits 18
Voltage 240 VAC/DC
Singals 1*Gigabit Ethernet, 1*TRIG signal, 1*BUS signal, 1 *ACAP and 1 *ABUS
Temperature Range -20℃ to +60℃
Contact Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩMin


Capsule Length =L
# of Circuits L (mm) Part No
18 23.5 LPM-18C


Dimension




18 Circuits 250 Rpm Capsule Slip Ring with Gold to Gold Contact for Mechanical Arms and Biochemical Analyzers

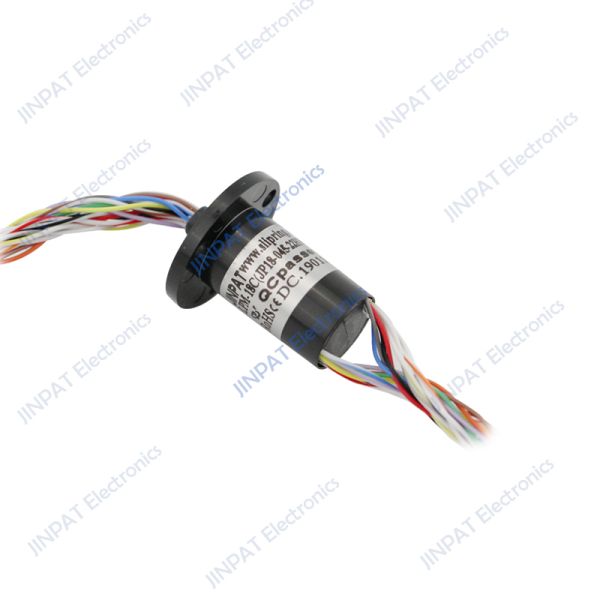

Product Display


18 Circuits 250 Rpm Capsule Slip Ring with Gold to Gold Contact for Mechanical Arms and Biochemical Analyzers
