IP44 Industrial Slip Ring Voltage 240VAC 12 Circuit 10A
IP44 Industrial Slip Ring Voltage 240VAC 12 Circuit 10A
IP44 Industrial Slip Ring Voltage 240VAC 12 Circuit 10A
IP44 Industrial Slip Ring Voltage 240VAC 12 Circuit 10A
IP44 Industrial Slip Ring Voltage 240VAC 12 Circuit 10A
IP44 Industrial Slip Ring Voltage 240VAC 12 Circuit 10A
Specifications
Brand Name :
JINPAT
Model Number :
LPT050-1210
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
100K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Circuits :
12*10A
Via diameter :
50mm
Number of ways :
12
Description

We JINPAT cable reel slip ring LPT series suit for the application of crane. Like the slip rings LPT025/LPT038/LPT050 and so on.

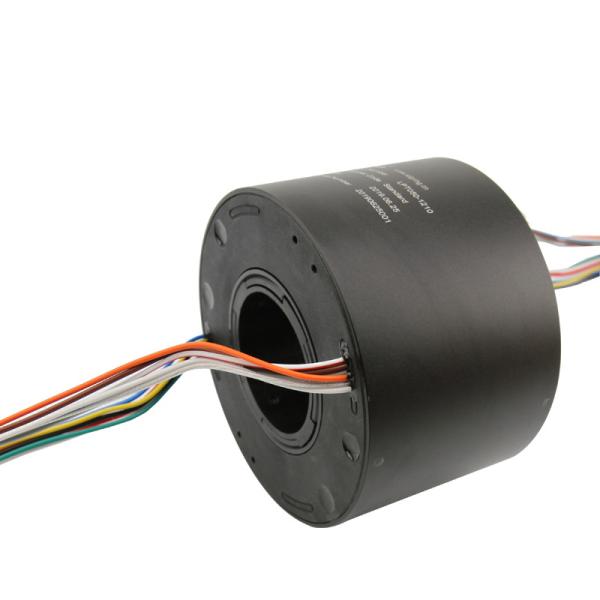

LPT050-1210 hallow shalft slip ring features 12 circuits and 10 A per circuit. It uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.

Specification
Circuits 1-24 circuits
Operating Speed 0-300rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH or higher
Electrical:
Voltage Rating 240VAC/DC or higher
Current Rating 2A/5A/10A/15A per circuit
Dielectric Strength ≥1000V@50Hz between each circuit
Insulation Resistance 50MΩ@ 500VDC
Electrical Noise 30mΩ Min
Mechanical:
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
Torque ≤9.25 g·m (for reference )
Protection IP44 or higher

Product outline drawing

Advantages

IP44 Industrial Slip Ring Voltage 240VAC 12 Circuit 10A
