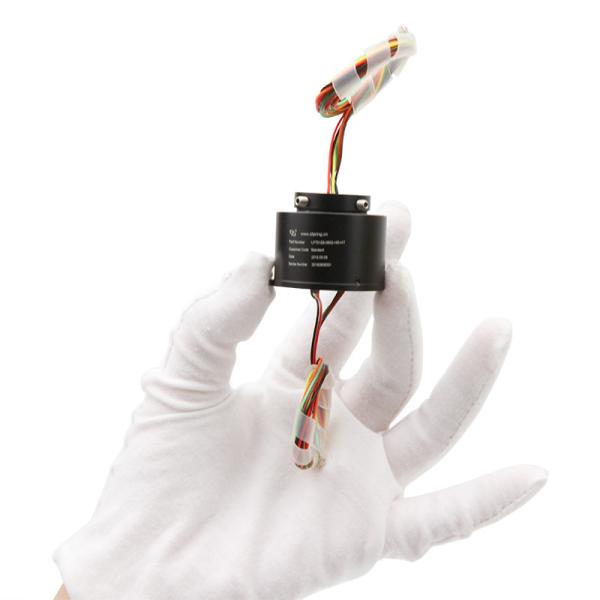

6 Circuit Through Bore Slip Ring 2000 RPM 240VAC Gold Contacts
6 Circuit Through Bore Slip Ring 2000 RPM 240VAC Gold Contacts
6 Circuit Through Bore Slip Ring 2000 RPM 240VAC Gold Contacts
6 Circuit Through Bore Slip Ring 2000 RPM 240VAC Gold Contacts
Specifications
Brand Name :
JINPAT
Model Number :
LPT012B-0602-HS-HT
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,C/C,Paypal
Supply Ability :
500 pieces / week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Total :
6CKT
Detail :
6X2A
Rating Voltage :
240VAC
Dielectric Strength :
500VAC@50Hz
Contact Material :
Gold-Gold
Working Speed :
0~2000rpm
Description

1000mm 2000 Rpm Through Bore Slip Ring Integrate High Frequency Fiber Signal


LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.


Electronic & Electruc Mechanical
Circuits Total 6CKT Working Speed 0~2000rpm
Detail 6X2A Inner Diameter Φ12.7mm
Rating Voltage 240VAC Contact Material Gold-Gold
Dielectric Strength 500VAC@50Hz Housing Material Engineering plastic
Insulation Resistance ≥300MΩ@300VDC Lead Wire Length

Stator:300mm

Rotor:300mm
Environment Remarks
Working Temperature -20°C~+125°C Application /
Working Humidity ≤60%RH Other /
IP IP50 Note:"P" stands dor power, "S" stands for signal



LPT012B-0602-HS-HT-Outline Drawing


6 Circuit Through Bore Slip Ring 2000 RPM 240VAC Gold Contacts

6 Circuit Through Bore Slip Ring 2000 RPM 240VAC Gold Contacts

6 Circuit Through Bore Slip Ring 2000 RPM 240VAC Gold Contacts


Features:

  • Transmit analog and digital signal
  • The power and signal are mixed transmitted, and the signal categories are as follows:
  • Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
  • Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
  • HD video: SDI, LVDS, etc.
  • Serial communication: RS232, RS485, RS422, etc.
  • Universal Serial Bus: USB2.0
  • Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
  • Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
  • Long service life, maintenance-free
  • Easy to install

Main Applications:

  • Industrial automation equipment
  • Medical equipment
  • Wind power equipment
  • Test equipment
  • Exhibition display equipment
  • Robots
  • Turntable equipment
  • Amusement equipment
  • High-speed railway equipment
  • Packaging machinery
  • Ship offshore equipment
  • Construction machinery
