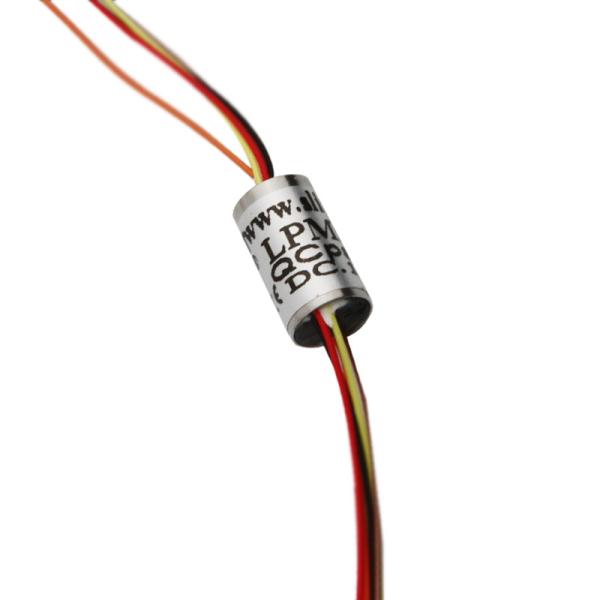

48VAC 1A 5 Circuits Miniature Slip Ring For Medical Equipments
48VAC 1A 5 Circuits Miniature Slip Ring For Medical Equipments
48VAC 1A 5 Circuits Miniature Slip Ring For Medical Equipments
48VAC 1A 5 Circuits Miniature Slip Ring For Medical Equipments
Specifications
Brand Name :
JINPAT
Model Number :
LPMS-05D
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, C/C, Paypal
Supply Ability :
500 pieces/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Dynamic Resistance Fluctuation Value :
≤35MΩ
Rating Voltage :
48VAC/DC
Rotating Speed :
0~300rpm
Description

As an important key component in the medical equipments, the slip ring ensures that the data transmission is completed under 360° uninterrupted rotation, and the integrity of the data and the speed of transmission are guaranteed.

Due to the limited internal space of some equipments and the strict requirements for the size of the slip ring, JINPAT designed LPMS super miniature slip rings with diameters of 5.5mm, length of 9.5mm.

Features and Avantages

  • Military materials and manufacturing processes
  • Stable performance, helping the equipment to transmit signals more accurately
  • Long life, high protection, slip ring maintenance free
  • Compact appearance, compact structure, light weight
  • Easy installation, smooth operation
  • Low torque, extremely low electrical noise, low resistance, and no friction

Specifications

Electrical & Electronics Mechanical
Circuits 5 circuits; 1A each circuit Rotating Speed 0~300rpm
Rating Voltage 48 VAC/DC Contact Material Gold To Gold
Housing Material Stainless Steel
Dynamic Resistance Fluctuation Value ≤35MΩ Wire Length Stator: 200mm
Rotor: 200mm
Lead Wire Size AWG 32# /
Environmental Others
Temperature -20°C~+60°C Life span Customizable
Humidity ≤60%RH Note: "P" stands for power, "S" stands for signal
Protection grade Customizable

Outline Drawing
