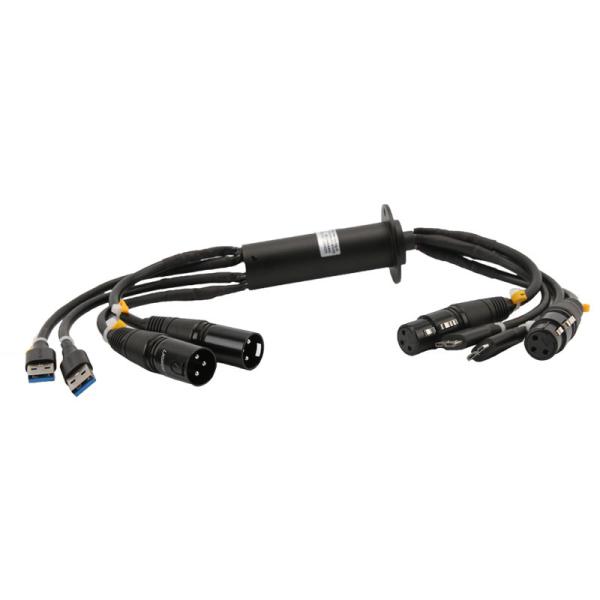

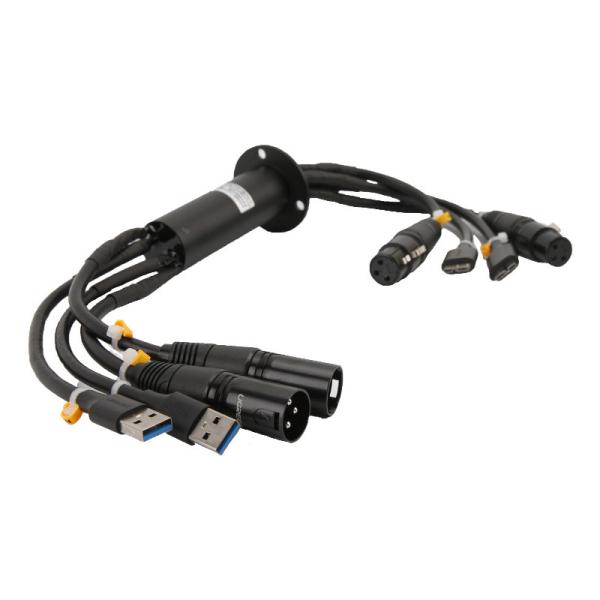

36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission
Specifications
Brand Name :
JINPAT
Model Number :
LPC-12T-02U3-HD02
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T,C/C,Paypal
Supply Ability :
500 pieces/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Circuits :
36 CKT（2 circuits*USB3.0/2 circuits video signal）
Rating Voltage :
0-5VAC/DC
Rotating Speed :
0~60rpm
Lead Wire Size :
USB 3.0/Microphone lead
Dynamic Resistance Fluctuation Value :
35MΩ
Contact Material :
Gold To Gold
Housing Material :
Aluminum Alloy
Description

LPC-12T-02U3-HD02 is a high definition signal slip ring developed by our company, which taking the lead of originality in its area with advanced design idea and manufacturing technology. It is perfectly applied to Video Surveillance field that transmits HD video signal and other signals in 360° continuous rotation. It is of high quality and reliability, certified by ISO9001:2008/ ISO14001:2015 / UL.


Features & Advantages

  • Simultaneous transmission of HD video, together with USB, power, and common signal is supported
  • Stable transmission of HDMI video signal, certified by stringent tests and acknowledged by customers
  • Light and compact
  • No interruption or data package loss in a very long-time operation
  • Water tight and vibration resistant
  • IP66 high protection level
  • Long service life

PS:JINPAT USB slip rings are specially designed for USB signal transmission. JINPAT USB slip ring features sufficient signal channels and stable signal transmission. This series includes slip rings with USB 2.0 connector and with USB 3.0 connector. JINPAT USB slip ring is an optimal solution for transmitting large volume of data at high speed between electrical components.



Electronic & Electruc Mechanical
Circuits Total 36 CKT Working Speed 0~60rpm
Detail

2 circuits*USB3.0/2 circuits video signal

 Contact Material

Gold to Gold
Rating Voltage 0-5VAC/DC Housing Material Aluminum Alloy
Dielectric Strength

≥100VAC@50Hz

 Lead Wire Length

Stator: 250士10mm

Rotor: 250士10mm
Insulation Resistance

≥10MΩ@100VDC

Dynamic Resistance

Fluctuation Balue

35MΩ
Environment Remarks
Working Temperature -20°C~+60° Application /
Working Humidity

≤60%RH

 Other /
IP
 IP40 Note:"P" stands dor power, "S" stands for signal


Outline Drawing

36 Circuit HDMI USB3.0 Slip Ring for HD Video Transmission

For more details of this slip ring product, please contact JINPAT.

We will bring you a satisfactory custom solution!

JINPAT USB Slip Rings Advantages:
High transmission, USB 3.0 theoretical transmission rate up 5.0Gbps, measured transmission rate＞2.0Gbps.
Electrical transmission and electro-optical transmission optional
Able to integrate many signal channels. Max channel capacity: 2 USB3.0 channels and 12 USB2.0 channels.
Exquisite contact materials ensure low electrical noise and super long service life.
Various kinds of connector to choose from.
