Capsule Slip Ring 125 Circuits with High-Bandwidth Transfer Capability
Capsule Slip Ring 125 Circuits with High-Bandwidth Transfer Capability
Capsule Slip Ring 125 Circuits with High-Bandwidth Transfer Capability
Capsule Slip Ring 125 Circuits with High-Bandwidth Transfer Capability
Specifications
Brand Name :
JINPAT
Model Number :
LPC-125A
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
50K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Number of Circuits :
125
Operating Speed :
0-100 rpm
Voltage :
240 VAC/DC
Current Rating :
2A
Contact Material :
Gold to Gold
Electrical Noise :
1mΩ Min
Description

125 Circuits Capsule Slip Ring with High-Bandwidth Transfer Capability

LPC-125A​ Slip Ring Description

JINPAT slip rings (electrical joints) reliably transfer data and power from stationary sources to rotating parts.

Our slip ring products are used across a wide range of industries including factory automation, heavy equipment, machine tool, packaging, medical, oil and gas, defense, and aerospace.

We offer standard electrical slip ring product lines that feature high-performance brush technology and are grouped by design type and circuit configurations.

Capsule slip rings can transmit high current and high speed with a compact design. Its low contact resistance and optimized heat dissipation structure ensure slip ring to work stably for a long time, all of this can avoid slip ring to strike fire. It uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

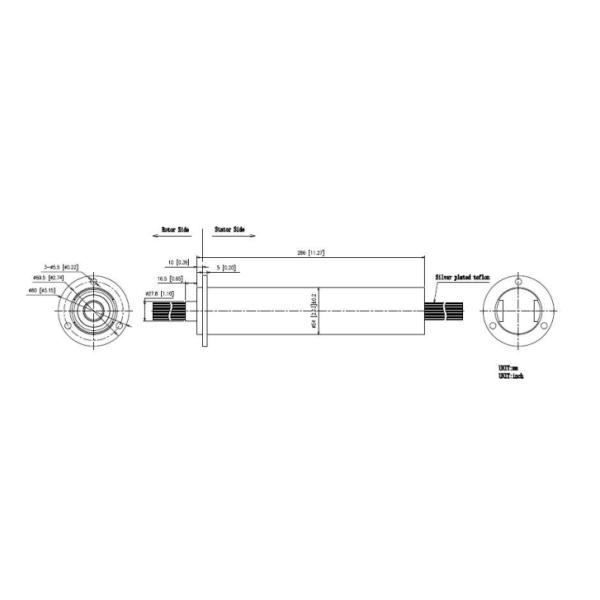

LPC-125A​ Slip Ring Outline drawing

Capsule Slip Ring 125 Circuits with High-Bandwidth Transfer Capability

Specifications
Operating Speed 0-100 rpm
Number of Circuits 125
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 28# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 1mΩ Min

Application Picture

Capsule Slip Ring 125 Circuits with High-Bandwidth Transfer Capability
