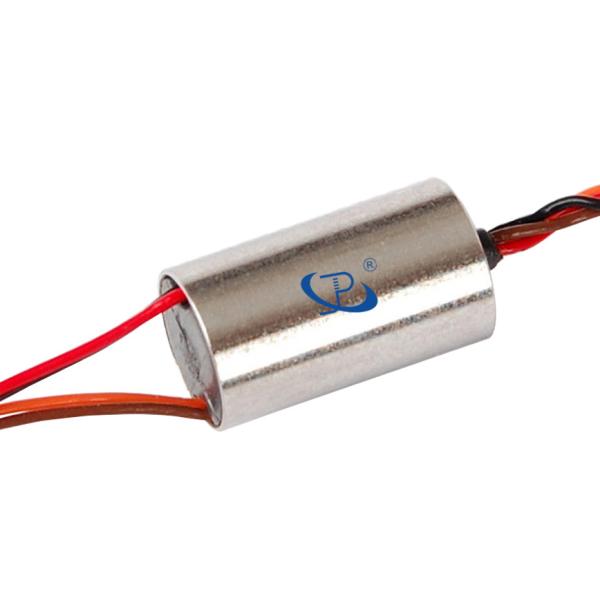

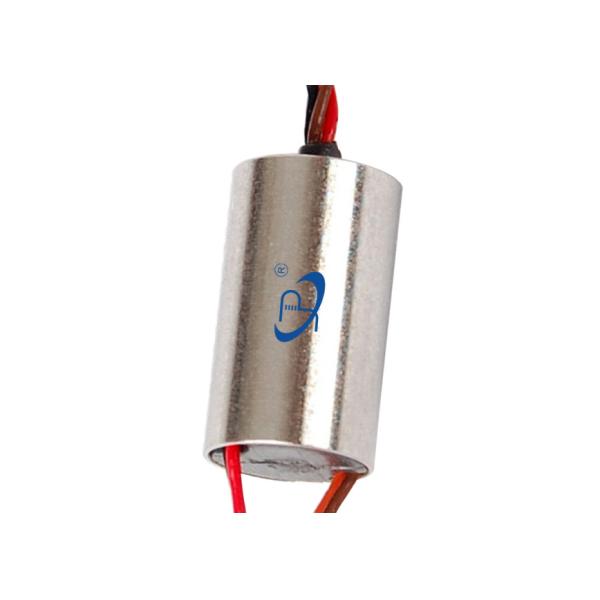

High Rotating Speed Micro Cap Slip Ring 4 Circuit
High Rotating Speed Micro Cap Slip Ring 4 Circuit
High Rotating Speed Micro Cap Slip Ring 4 Circuit
High Rotating Speed Micro Cap Slip Ring 4 Circuit
Specifications
Brand Name :
JINPAT
Model Number :
LPMS-04D
Certification :
ISO/CE/RoHS/UL
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
50K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Number of circuits :
4
Current rating :
2A per wire
Contact material :
gold to gold
IP grade :
IP51
Description

Small Capsule Slip Ring Up to 250 RPM High Rotating Speed

Description

Typically, slip ring consists of a stationary graphite or metal contact (brush) which rubs on the outside diameter of a rotating metal ring. As the metal ring turns, the electric current or signal is conducted through the stationary brush to the metal ring making the connection.

Additional ring/brush assemblies are stacked along the rotating axis if more than one electrical circuit is needed. Either the brushes or the rings are stationary and the other component rotates. This simple design has been used for decades as a rudimentary method of passing current into a rotating device.

Application Picture

High Rotating Speed Micro Cap Slip Ring 4 Circuit

Product tags

rotating electrical connector slip ring

,

power slip ring

,

high voltage slip ring
