Electrical Capsule Slip Ring 24 Circuits with High Protection
Electrical Capsule Slip Ring 24 Circuits with High Protection
Electrical Capsule Slip Ring 24 Circuits with High Protection
Electrical Capsule Slip Ring 24 Circuits with High Protection
Specifications
Brand Name :
JINPAT
Model Number :
LPC-24K
Certification :
ISO/CE/RoHS/UL
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
TT/CC/Paypal
Supply Ability :
50K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Type :
electric
Current :
2 A
Voltage :
240 V
Contact Material :
Gold to Gold
Description

Gold to Gold Contact Electricical Capsule Slip Ring of 24 Circuits with High Protection

Description

The LPC-24K slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-24T provides smoother running, lower torque and lower electrical noise than competitive slip rings.

Specifications
Operating Speed 0-200 rpm
Number of Circuits 24
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 28# silver plated copper
Lead Lengths Standard 250 mm (9.843inch)
Hole Diameter 1.5~7.0mm
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electronic Noise 1mΩ Min

The operating life of the unit depends upon temperature, rotation speed, and environment.
The operating life ≥50,000,000 runs ref.

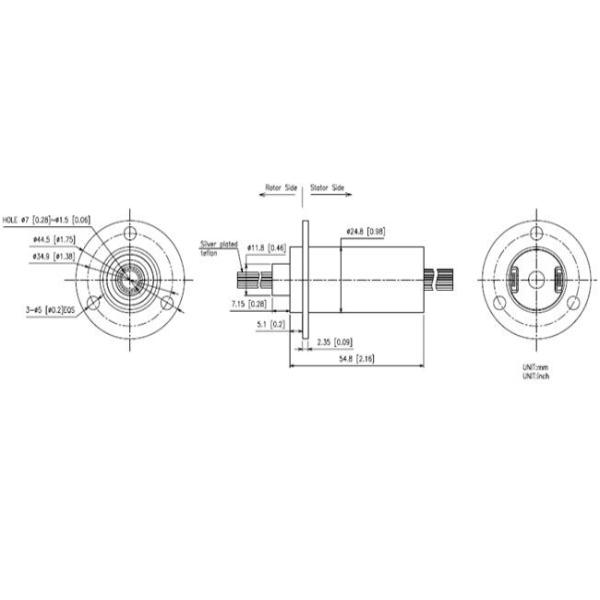

Outside of drawing

Electrical Capsule Slip Ring 24 Circuits with High Protection

Application Picture

Electrical Capsule Slip Ring 24 Circuits with High Protection

Company look

Electrical Capsule Slip Ring 24 Circuits with High Protection
