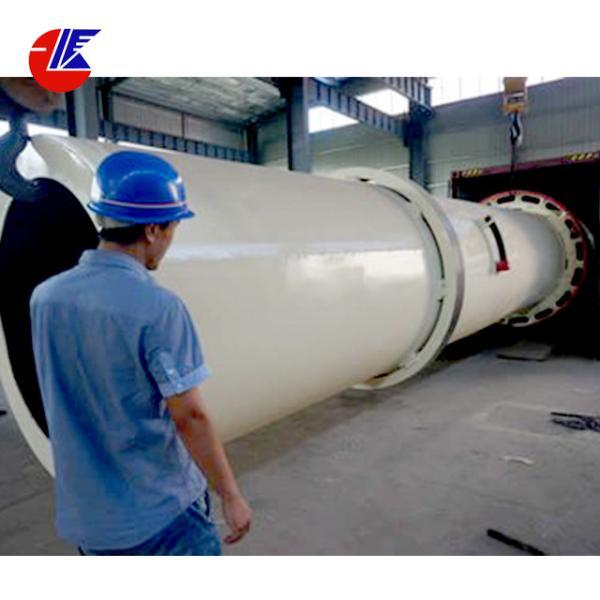

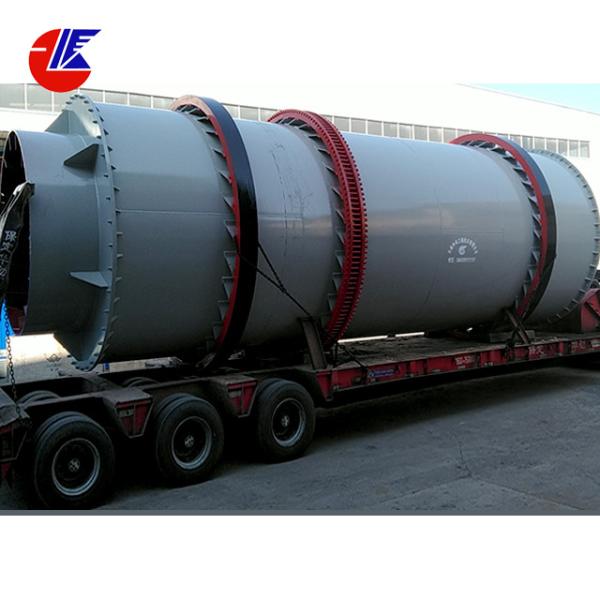

Sawdust Iron Pellets Coal Grain Industrial Rotary Dryer
Sawdust Iron Pellets Coal Grain Industrial Rotary Dryer
Sawdust Iron Pellets Coal Grain Industrial Rotary Dryer
Sawdust Iron Pellets Coal Grain Industrial Rotary Dryer
Specifications
Brand Name :
Zhongke
Certification :
CE,ISO9001,ISO14001
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Price :
USD 9000/ set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
900 set per month
Delivery Time :
15 days
Packaging Details :
Nude, ordinary package
Voltage :
380v, 415v, 440v, 460v
Capacity :
1-100 t/h
Applicable Industries :
Manufacturing Plant, Construction works , Energy & Mining
Dimension(L*W*H) :
1.8*12/14 (m) (D*L)
Name :
Industrial Rotary Dryer
Weight (KG) :
15 tons
Feature :
Great adaptability
Control :
Electric Control Cabinet
Description


Energy Saving Industrial Rotary Dryer For Sand Cement Gypsum

Working principle of rotary drier

Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.

Zhongke rotary kiln dryer

It is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and with convenient and reliable operation; Therefore, it has been widely used.

Application of rotary drier

Rotary drier is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries.

Specifications
1. Environment friendly
2. Great adaptability
3. Large capacity
4. Simple structure,etc.


Modal

 Technical parameter Power(kw)

Capacity
(t/h)

Weight
(kg)

Inside
dia.(m)

Length
(m)

Gradient
(%)

 Rotate speed(r/min)
ZT-1.2*6/8 1.2 6/8 5 5.8 5.5 8-12 9380/10200
ZT-1.5*12/15 1.5 12/15 5 4.8 15 12-16 16450/18240
ZT-1.8*12/14 1.8 12/14 5 4.5 18.5 18-20 20000/21000
ZT-2.2*12/14 2.2 12/14 5 4.3 22 22-28 37100/38830
ZT-2.4*14 2.4 14 4 3.78 30 30-35 50700
ZT-2.4*18 2.4 18 4 3.0 37 35-40 54000
ZT-2.4*22 2.4 22 3 3.0 45 38-42 57000
ZT-.2.8*20 2.8 20 4 3.7 40 45-55 71000/75000
ZT-3.0*22/25 3.0 22/25 4 3.2 75 58-70 88000/95000
ZT-3.2*25 3.2 25 4 3.0 110 75-90 166000
ZT-3.6*25

3.6

 25 4 2.7 132 95-110 188000


Technical parameters:

model cylinder diameter cylinder length inclination Rotate speed/RMP weight power Volume/CBM
φ0.6×8 φ600 8m 3-5 8 5.1 6-pole 4 2.26
φ0.8×10 φ800 10m 3-5 7.2 6.9 6-pole 4 5.02
φ1.0×10 φ1000 10m 3-5 6.73 7.5 6-pole 5.5 7.85
φ1.2×12 φ1200 12m 3-5 5.8 13.1 6-pole 11 13.31
φ1.5×12 φ1500 12m 3-5 4.8 22.3 6-pole 15 21.2
φ2.2×14 φ2200 14m 3-5 3.2 52.8 30 53.22
φ2.4×18 φ2400 18m 3-5 3 73.3 37 81.43
φ2.8×24 φ2800 24m 3-5 2.59 97 75 147.8


Scope of Application:

  • food industry: Glucose, salt, granulated sugar, vitamin malted milk, Granular sugar
  • minerals: Bentonite, Titanium concentrate, coal, manganese ore, pyrite, limestone, peat
  • chemical industry: ammonium sulfate, sodium sulphide, ammophos, ammonium nitrate, carbamide, oxalic acid, potassium dichromate, PVC, nitrophosphate fertilizer, calcium magnesium phosphate, compound fertilizer
  • Others: Iron powder, flat soybean, garbage abrasive, match sticks, wood chips, vinasse

Compared with other dryers, the rotary dryer have the following features:


1,Large production capability, continuous operation
2,Simple structure, convenient operation
3,Low malfunction, low maintenance cost
4,Wide scope of application, can be used to dry the granular materials, favorable for those materials with the big adhesion
5,Great operating flexibility, the output of the products allows a larger fluctuation range, not influencing the quality of the products

Sawdust Iron Pellets Coal Grain Industrial Rotary DryerSawdust Iron Pellets Coal Grain Industrial Rotary Dryer


Our service:

1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1>. Select equipment model;
2>. Design and manufacture products according to clients' special requirement;
3>. Train technical personnel for clients.
2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1>. Pre-check and accept products ahead of delivery;
2>. Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries.
1>. Assist clients to prepare for the first construction scheme;
2>. Install and debug the equipment;
3>. Train the first-line operators;
4>. Examine the equipment;
5>. Take initiative to eliminate the troubles rapidly;
6>. Provide perfect service;
7>. Provide technical exchanges.
