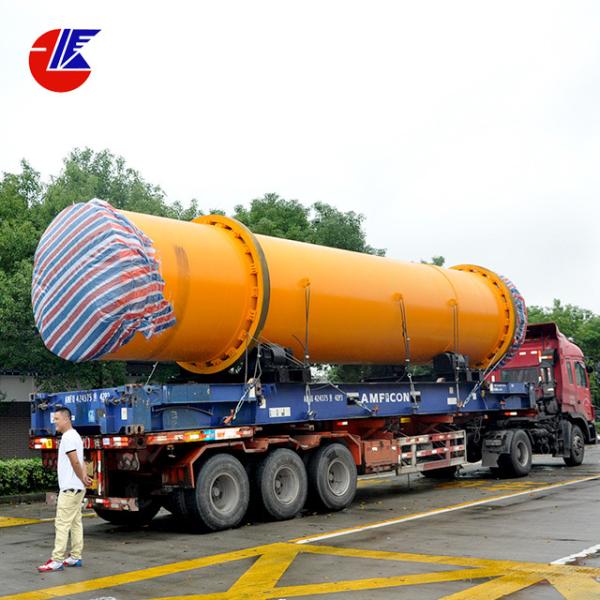

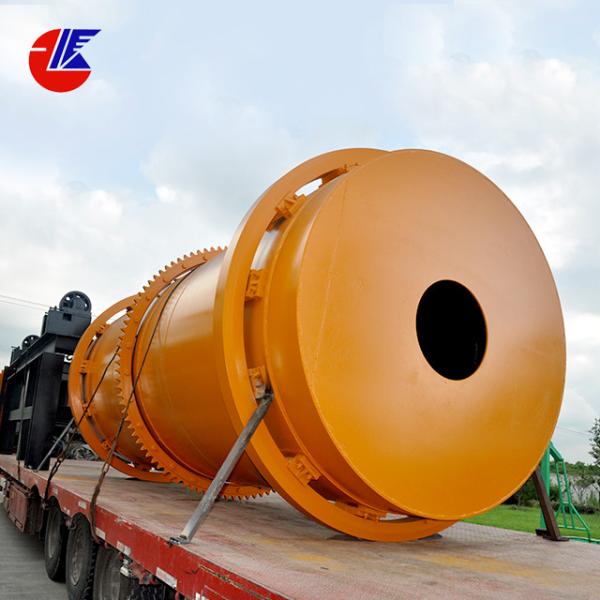

Rock Coal Lignite Sludge Industrial Rotary Dryer
Rock Coal Lignite Sludge Industrial Rotary Dryer
Rock Coal Lignite Sludge Industrial Rotary Dryer
Rock Coal Lignite Sludge Industrial Rotary Dryer
Rock Coal Lignite Sludge Industrial Rotary Dryer
Rock Coal Lignite Sludge Industrial Rotary Dryer
Specifications
Brand Name :
Zhongke
Certification :
CE,ISO9001,ISO14001
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Price :
USD 9000/ set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
900 set per month
Delivery Time :
15 days
Packaging Details :
Nude, ordinary package
Color :
As customer required
Applicable Industries :
Manufacturing Plant, Construction works , Energy & Mining
Control :
Electric Control Cabinet
Capacity :
1-100 t/h
Voltage :
380v, 415v, 440v, 460v
Application :
dry slag, clay, limestone
Rotary drier :
Great adaptability
Warranty :
One year
Description

Energy Saving Industrial Rotary Dryer For Sand Cement Gypsum

Rotary drier :
1. Environment friendly
2. Great adaptability
3. Large capacity
4. Simple structure,etc.

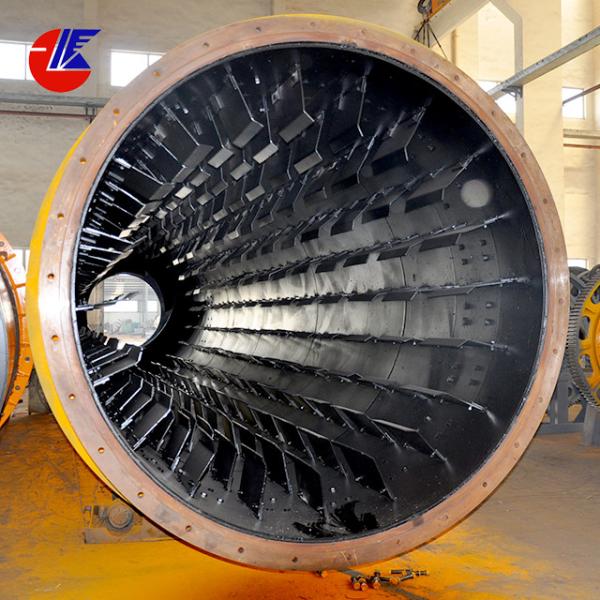

Structure of rotary drier
Drier also named as Drying Machine and Rotary Drier.Drier is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc

Application of rotary drier
Rotary drier is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries.

Working principle of rotary drier
Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.


Modal

 Technical parameter Power(kw)

Capacity
(t/h)

Weight
(kg)

Inside
dia.(m)

Length
(m)

Gradient
(%)

 Rotate speed(r/min)
ZT-1.2*6/8 1.2 6/8 5 5.8 5.5 8-12 9380/10200
ZT-1.5*12/15 1.5 12/15 5 4.8 15 12-16 16450/18240
ZT-1.8*12/14 1.8 12/14 5 4.5 18.5 18-20 20000/21000
ZT-2.2*12/14 2.2 12/14 5 4.3 22 22-28 37100/38830
ZT-2.4*14 2.4 14 4 3.78 30 30-35 50700
ZT-2.4*18 2.4 18 4 3.0 37 35-40 54000
ZT-2.4*22 2.4 22 3 3.0 45 38-42 57000
ZT-.2.8*20 2.8 20 4 3.7 40 45-55 71000/75000
ZT-3.0*22/25 3.0 22/25 4 3.2 75 58-70 88000/95000
ZT-3.2*25 3.2 25 4 3.0 110 75-90 166000
ZT-3.6*25

3.6

 25 4 2.7 132 95-110 188000


Technical parameters:

model cylinder diameter cylinder length inclination Rotate speed/RMP weight power Volume/CBM
φ0.6×8 φ600 8m 3-5 8 5.1 6-pole 4 2.26
φ0.8×10 φ800 10m 3-5 7.2 6.9 6-pole 4 5.02
φ1.0×10 φ1000 10m 3-5 6.73 7.5 6-pole 5.5 7.85
φ1.2×12 φ1200 12m 3-5 5.8 13.1 6-pole 11 13.31
φ1.5×12 φ1500 12m 3-5 4.8 22.3 6-pole 15 21.2
φ2.2×14 φ2200 14m 3-5 3.2 52.8 30 53.22
φ2.4×18 φ2400 18m 3-5 3 73.3 37 81.43
φ2.8×24 φ2800 24m 3-5 2.59 97 75 147.8


Zhongke rotary kiln dryer
It is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and with convenient and reliable operation; Therefore, it has been widely used.

rotary dryer Detail

Our products have the following six major features,so that we can lead other manufacturers at home and abroad

Rock Coal Lignite Sludge Industrial Rotary DryerRock Coal Lignite Sludge Industrial Rotary Dryer

Our service:

1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1>. Select equipment model;
2>. Design and manufacture products according to clients' special requirement;
3>. Train technical personnel for clients.
2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1>. Pre-check and accept products ahead of delivery;
2>. Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries.
1>. Assist clients to prepare for the first construction scheme;
2>. Install and debug the equipment;
3>. Train the first-line operators;
4>. Examine the equipment;
5>. Take initiative to eliminate the troubles rapidly;
6>. Provide perfect service;
7>. Provide technical exchanges.
About Us

Henan Zhongke Engineering & Technology Co., Ltd. is an import and export company, which is specialized in mining machinery, metallurgical machinery and building materials equipment manufacturing. The head quarter located in Zhengzhou High-Tech zone.The company business scope include: jaw crusher, impact crusher, hammer crusher, cone crusher, ball mill, rod mill, ceramic ball mill, vibrating feeder, vibrating screen, belt conveyor, mineral ore separating machine, magnetic separator, flotation machine, classifier, spiral chute, rotary dryer, rotary kiln. We also can offer sand and stone production line, crushing and grinding plant, ore beneficiation line, A A C (aerated concrete block) production plant, small cement plant, active lime production line and so on.
