Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Specifications
Brand Name :
FANBAO
Model Number :
S/sa/saf/saz/sf37
Certification :
CE. ISO9001
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
8-15work days
Packaging Details :
standard export wooden case
Output Torque :
10-4890(N.M)
Input Speed :
1450rpm
Output Speed :
0.12-397(rpm)
Warranty :
1 year
Color :
customer Requirement
Efficiency :
94%~98%(depends on the transmission stage)
Mounting Position :
Foot,flange,torque,arm,hollow/s
Gearing Arrangement :
Worm
Lubricating oil :
GB L-CKC220-460,Shell Omala220-460
Description

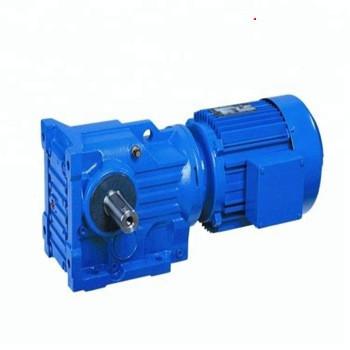

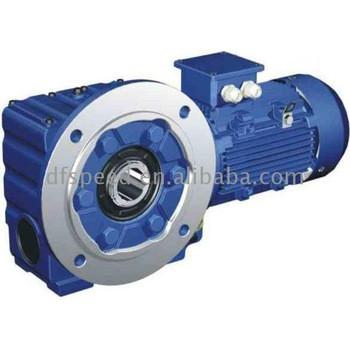

S Series Solid Shaft Helical Gearmotor Worm Gearbox 22kw Marine Transmission Speed Reducer Motor

Description :

The S series gear reducer is tailored for use in diverse machine and plant applications. This helical-worm gear unit offers impressive torque capacities of up to 10,000Nm, power capabilities reaching 60kW, and ratios extending up to 250:1 in two stages and up to 60,000:1 in combined configurations.

Key Features:

  • Efficient Design: The helical-worm gear units exhibit a simple yet highly efficient design, ensuring cost-effectiveness in operations.
  • Customizable Performance: Individual torque and speed adjustments facilitate space-efficient installations, adapting to specific requirements seamlessly.
  • Versatile Configurations: Available as double, triple, quadruple, and quintuple reduction units, suitable for foot, flange, or shaft mounting options.
  • Model Selection: With power capacities up to 60kW, these units cover a wide range of drive requirements. They offer ratios up to 250:1 in two stages and up to 60,000:1 in combined forms, ensuring a broad speed spectrum.
  • Robust Construction: Featuring output torque capabilities up to 10,000Nm, these gear units provide a cost-effective solution per Nm, supported by an oil-tight gear head design to prevent oil spills during motor replacements.
  • Ease of Replacement: Interchangeable Euro dimensions facilitate swift and hassle-free replacements, while compatibility with standard motors ensures quick and economical motor swaps.
  • Durable Build: Constructed with a cast iron case and epoxy-polyester powder-coated finish, these gear units boast strength and durability for long-lasting performance in demanding industrial environments.

Specification :

Gear material 20CrMnTi alloy steel

Surface hardness of gears
HRC58°~62°
Gear core hardness HRC33~40

Input/Output shaft material
42CrMo alloy steel
Input /Output shaft hardness
HRC25~30

Machining precision of gears		 Accurate grinding,6~5 Grade

Lubricating oil		 GB L-CKC220-460,Shell Omala220-460
Heat treatment
Tempering,cementiting,quenching,etc.

Eficiency		 94%~96%(depends on the trans mis sion stage)
Noise (MAX) 60~68dB

Temp.rise(MAX)		 40℃

Temp.rise (Oil)(MAX)		 50°℃

Vibration
s20μm
Backlash
s20Arcmin

Brand of bearings
China top brand bearing,or other brands requested
SIZE Shaft Dia. (mm) Center
Height		 Output Flange
Dia. (mm)		 Power
(kw)		 Ratio Permissible
Torque(N.m)		 Weight
(kgs)

Solid Hallow
37 φ20k6 φ20h7 82 φ120/160 0.18-0.75 10.27-165.71 90 7
47 φ25k6 φ25h7 100 φ160 0.18-1.50 11.46-244.74 170 10
57 φ30k6 φ30h7/35h7 180 φ200 0.18-3.0 10.78-196.21 300 14
67 φ35k6 φ40h7/45h7 140 φ200 0.25-5.50 11.55-227.20 520 26
77 φ45k6 φ50h7/60h7 180 φ250 0.55-7.50 9.96-241.09 1270 50
87 φ60m6 φ60h7/70h7 225 φ350 0.75-15.0 11.83-223.26 2280 100
97 φ70m6 φ70h7/90h7 280 φ450 1.50-22.0 12.5-230.48 4000 170
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine TransmissionSolid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission

Why choose us :

Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine TransmissionSolid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine TransmissionSolid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission

Reducer process :
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Packing and shipping way :
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
FAQ
Q1 : What should I provide when I choose gearbox/speed reducer?
A1: The best way is to provide the motor drawing with parameter.
Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q2: Are you a manufacturer?
Send your message to this supplier
Send Now

Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission

Ask Latest Price
Product Detail
Brand Name :
FANBAO
Model Number :
S/sa/saf/saz/sf37
Certification :
CE. ISO9001
Place of Origin :
china
MOQ :
1
Price :
negotiation
Contact Supplier
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission
Solid Shaft Worm Helical Gear Reducer Gearmotor 22kw for Marine Transmission

Shanghai Fanbao Industrial Co., Ltd

Active Member
2 Years
shanghai, shanghai
Since 2009
Business Type :
Manufacturer, Trading Company
Main Products :
Mixing Tank, R Series Gear Reducer, Agitator Mixer
Total Annual :
1000000-10000000
Employee Number :
30~50
Certification Level :
Active Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products S Series Gear Reducer
MachineU China Products Machinery Machinery Accessories Gears Worm Gears
Contact Supplier
Submit Requirement
