Specifications
Description

Description :

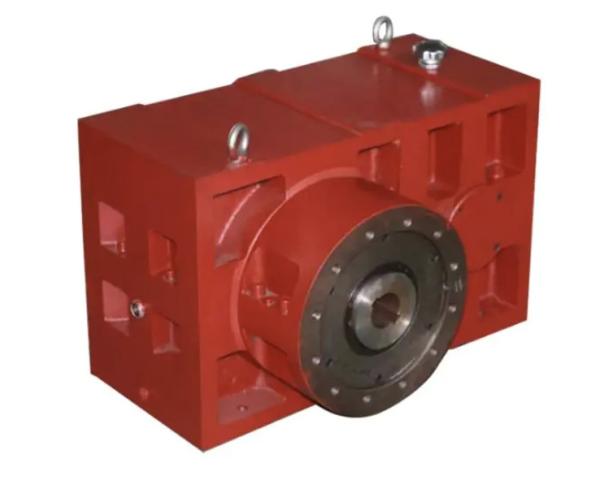

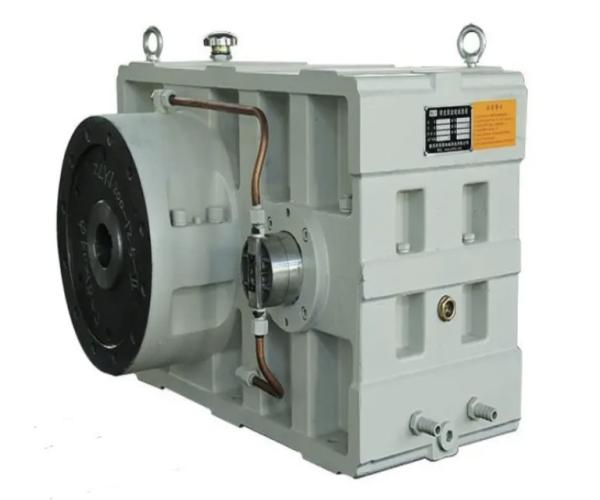

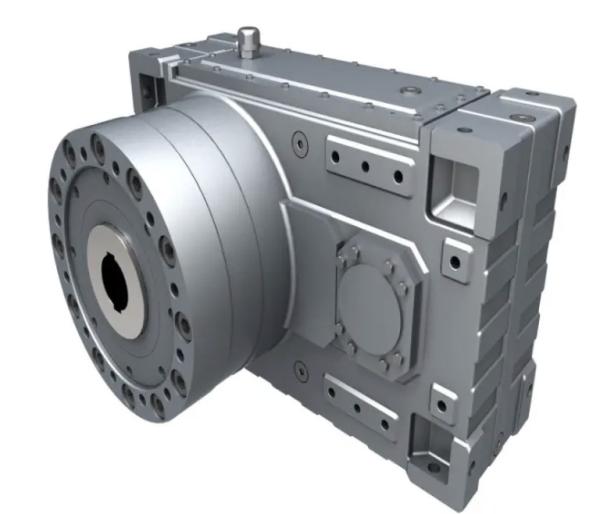

The ZLYJ series reduction gearbox serves as a precision transmission component specifically designed for plastic screw extruders, featuring a high-precision hard gear surface and a thrust block.

This product conforms to all standards outlined in ZBJ19009-88, with gear and axis components crafted from high-strength alloy steel.
Gears undergo a meticulous process involving carburization, quenching, and tooth grinding.
Gear precision meets Grade 6 standards as specified in GB1009588.
Gear surfaces exhibit a hardness ranging from HRC54 to HRC62. Additionally, a sizable thrust bearing is situated at the front end of the hollow input axis to withstand axial thrust forces during screw operation.
The entire unit is characterized by its compact design, high bearing capacity, stable transmission, low noise levels, and high efficiency.

20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer

20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer

Specification :

Type Model RatioRange AxialThrust ScrewDiameter NetWeight
(KN) (mm) (KG)
20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer

ZLYJ112 8/10/12.5 41 35 95
ZLYJ 133 8/10/12.5/14/16/18/20 54 50 144
ZLYJ 146 8/10/12.5/14/16/18/20 60 55 205
ZLYJ 173 8/10/12.5/14/16/18/20 153 65 256
ZLYJ 200 8/10/12.5/14/16/18/20 187 75 500
ZLYJ 225 8/10/12.5/14/16/18/20 250 90 650
ZLYJ 250 8/10/12.5/14/16/18/20 268 100 815
ZLYJ 280 8/10/12.5/14/16/18/20 356 105,110 1020
ZLYJ 315 8/10/12.5/14/16/18/20 403 120 1410
ZLYJ 330 8/10/12.5/14/16/18/20 448 130,150 1520
ZLYJ 375 8/10/12.5/14/16/18/20 495 150,160 1800
ZLYJ 420 8/10/12.5/14/16/18/20 545 165 2750
ZLYJ 450 8/10/12.5/14/16/18/20 590 165 3560

20 Hp ZLYJ Double Reduction Gearbox Right Angle Worm reducer

Application:

This ZLYJ gearbox are mainly used in Plastic Extruding Machine, like EPS, PE....
