Three Phase High Frequency Inverter VFD 200V - 240V For Industrial Automation
Three Phase High Frequency Inverter VFD 200V - 240V For Industrial Automation
Specifications
Output voltage :
Three-phase 0V ~ input voltage
Place of Origin :
CHINA
Brand Name :
Bebaios
Rated output current :
585A (160 kW), 725A (200 kW)
Input voltage :
200V-240V AC
Delivery Time :
3~4 weeks
Model Number :
MD500T-160G/MD500T-200G
Weight :
185 kg
MOQ :
1
Supply Ability :
6000 units per month
Carrier frequency :
0.8kHz~6.0kHz
Certification :
CE\NA
Packaging Details :
Wooden box
Payment Terms :
T/T,Western Union
Maximum output frequency :
500 Hz
Price :
N\A
Description
Product Overview

The Inovance MD500 series represents the pinnacle of Inovance’s drive technology. It is a high-performance vector AC drive that easily drives induction motors with high-quality, high-power density design. Whether you are looking for ease of use, maintainability, or environmental protection, the MD500 is engineered to optimize the user experience across all industrial dimensions.

Technical Specifications

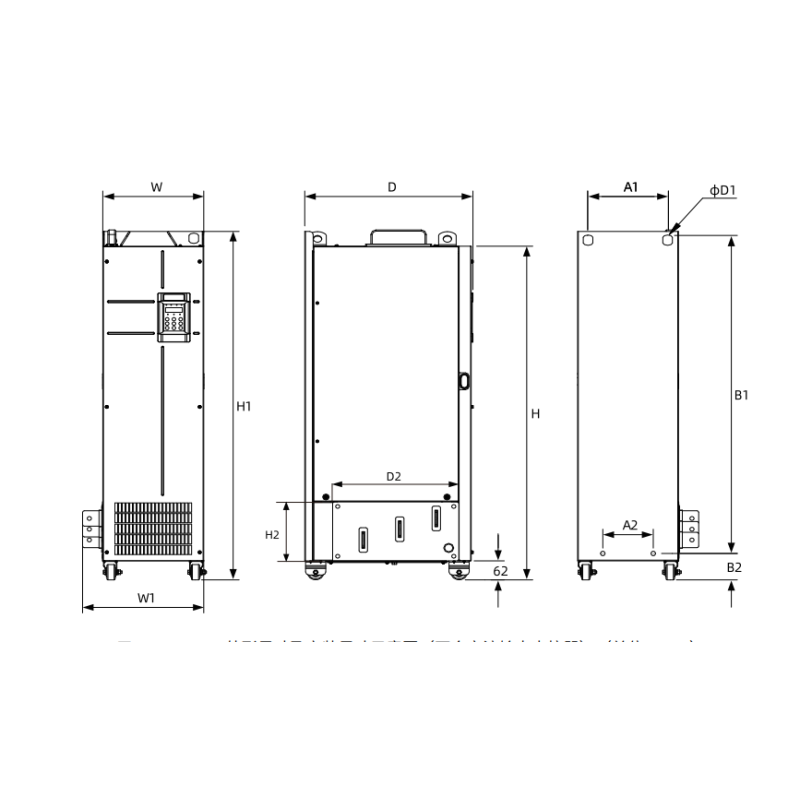

External structure T12
Item Value mm(in.)
Mounting Hole Position A1 240(9.5)
Mounting Hole Position A2 200(7.9)
Mounting Hole Position B1 1280(50.4)
Mounting Hole Position B2 101(4.0)
Overall Dimension H 1355(53.4)
Overall Dimension H1 1405(55.4)
Input Copper Bar H2 219.2
Output Copper Bar H2 290
Overall Dimension W 340(13.4)
Overall Dimension W1 400(15.8)
Overall Dimension D 545(21.5)
Mounting Hole Diameter D1 Φ16(0.6)
Overall Dimension D2 420
Weight kg(lb) 185(407.9)

Three Phase High Frequency Inverter VFD 200V - 240V For Industrial Automation

Category Item MD500-2T160G MD500-2T200G
General Power (kW) 160 200
Volume T12 T12
Output Adaptable motor capacity (kW) 160 200
Rated output current (A) 585 725
Output voltage Three-phase 0V ~ input voltage Same
Maximum output frequency 500 Hz Same
Carrier frequency 0.8kHz~6.0kHz (auto-adjustable by load characteristics) Same
Overload capability Continuous output of 150% rated current for 60s Same
Input Rated input current (A) 565 687
Rated voltage / rated frequency Three-phase 200V AC~240V AC, 50Hz/60Hz Same
Allowable voltage fluctuation range -15%~+10%, actual: 170V AC~264V AC Same
Allowable frequency fluctuation range ±5%, actual: 47.5Hz~63Hz Same
Power supply capacity (kVA) 259 315
Power grid type TN, TT, IT (Y) Same
Cooling Design Heating power consumption (kW) 5.37 6.58
Air flow (CFM) 645 860
Safety & Rating Overvoltage category OVC III Same
Pollution degree PD2 Same
Protection degree IP20 (open type, applicable to IEC products) Same
Protection class Class I Same
Technical Superiority

  • Compact & Space-Saving: Refined design reduces the physical footprint by up to 30% compared to previous generations.

  • Rugged Reliability: Features an independent cooling air duct design to resist harsh, polluted industrial environments.

  • Certified Quality: Fully compliant with CE, UL, cUL, and RoHS standards for high-end export markets.

  • Built-in DC Reactor: Standard internal H-class insulation DC reactor for models above 30kW to suppress harmonics.

Applications
  • Textile Industry: Precise tension and speed control.
  • Air Compressors: Energy-efficient operation and stable pressure maintenance.
  • Plastic & Rubber: High-speed response for injection molding machines.
About Bebaios

Shenzhen Bebaios Machinery Co., Ltd. specializes in manufacturing industrial air compressors and pneumatic equipment. Located in Shenzhen, one of the world’s leading high-tech manufacturing hubs, we take full advantage of local industrial resources to provide reliable, energy-saving air solutions to global clients.

Quality Assurance:Stable performance and strict compliance with international quality standards.

Complete Service System:24/7 after-sales service and a professional support team ensure fast, efficient responses to customer needs.

FAQs
Q1: What is the warranty period for your air compressors?

A: All our compressors come with a 12-month warranty for complete peace of mind and technical support.

Q2: What is the mode of transport?

A: Sea freight

Q3: How do I place an order for an air compressor?

A: Simply provide us with your requirements or application, and we'll send a quote based on your needs. Once you confirm and place a deposit, production will begin.

Q4: What payment terms do you accept?

A: Telegraphic Transfer (T/T)

Q5: What is the monthly production volume?

A: 6000 units
