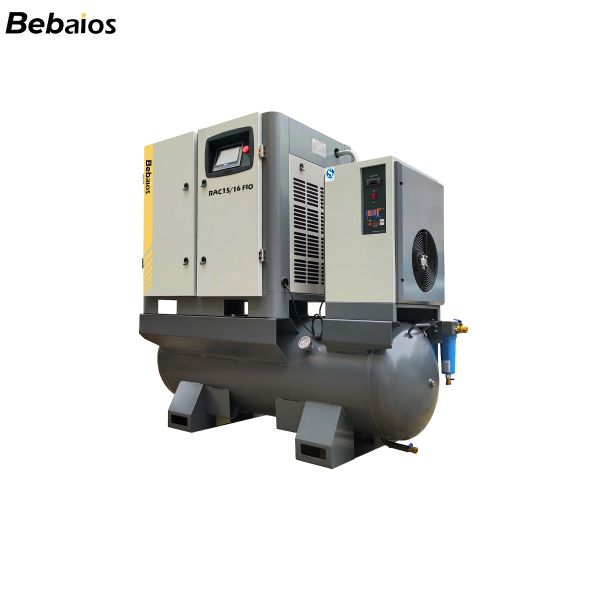

This Bebaios RAC series integrated screw air compressor is a professional all-in-one air supply solution specially designed for laser cutting, CNC machining, metal processing and other industrial applications. It integrates screw main unit, air storage tank, refrigerated air dryer and multi-stage precision filters into one compact structure, realizing truly plug-and-play operation without complicated on-site installation and pipeline connection. It provides stable, dry and clean compressed air to ensure high-efficiency, high-quality and long-term stable operation of laser cutting equipment.

• All-in-One Integrated Laser Cutting Design: The RAC series integrates screw air end, air receiver, refrigerated air dryer and multi-stage precision filters into one complete unit. No extra assembly, piping or external processing equipment needed.
• 16Bar High Pressure Stable Output: Specially designed for fiber laser cutting machines, the unit provides stable working pressure up to 16Bar for consistent metal cutting performance.
• Permanent Magnet Variable Frequency Drive: Equipped with high-efficiency permanent magnet synchronous motor and professional VFD controller for outstanding energy saving performance.
• Integrated Shaft Connection Air End: Direct-coupled structure eliminates mechanical clearance, vibration and failure points for high efficiency and long service life.
• High Efficiency Refrigerated Air Dryer System: Built-in high-performance freeze dryer delivers stable pressure dew point as low as 3-5℃ for ultra-dry compressed air.
• Multi-Stage High Precision Filtration: Combined multi-stage filtration system effectively removes oil, dust and solid particles.
• Wide Voltage Adaptation: Supports wide voltage input from 361V to 418V for stable operation in unstable power grid environments.
• Intelligent PLC Control & IoT Monitoring: Intelligent PLC control system with optional IoT remote monitoring for real-time status check.
• Independent Dual Cooling System: Independent air duct design and large-area radiator provide excellent heat dissipation for continuous operation.

• Fiber laser cutting machines (medium & high power)
• Metal fabrication and sheet metal processing
• CNC machining centers and pneumatic equipment
• Automobile manufacturing and parts processing
• Hardware production and stamping plants
• Electronics, aerospace and precision machinery
• Steel, metallurgy and mold manufacturing industries
• Industrial automation production lines

• Truly Plug-and-Play Installation: 4-in-1 integrated structure eliminates separate components and complex piping for immediate production startup.
• Ultra-High Energy Saving Efficiency: Permanent magnet VFD technology reduces energy consumption by 25%-35% compared to fixed-speed compressors.
• Stable 16Bar High-Pressure Performance: Optimized for laser cutting with continuous stable pressure for smooth cutting and high processing quality.
• Clean & Dry Air Output: Built-in freeze dryer and multi-stage filtration protect laser parts and extend consumable life.
• Strong Reliability & Long Service Life: Imported bearings, direct-drive structure and strict factory testing ensure stable long-term operation.
• Low Noise & Compact Structure: Low-speed operation and sound insulation design reduce noise while saving workshop space.
• Intelligent Control & Remote Monitoring: Full automation, fault alarm and optional IoT monitoring for unmanned management.
• Global Adaptability & Export-Oriented Design: Wide voltage support and standardized production for international industrial standards.
