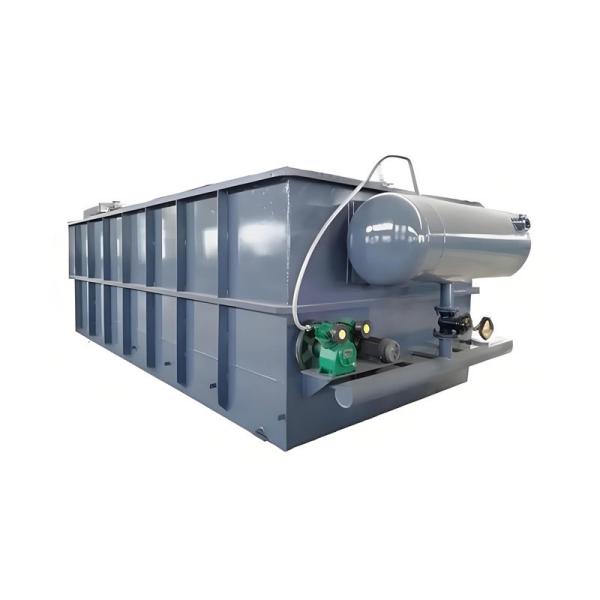

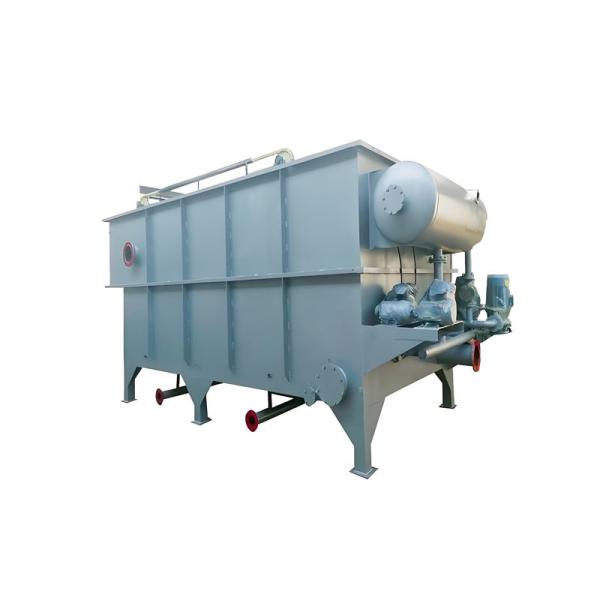

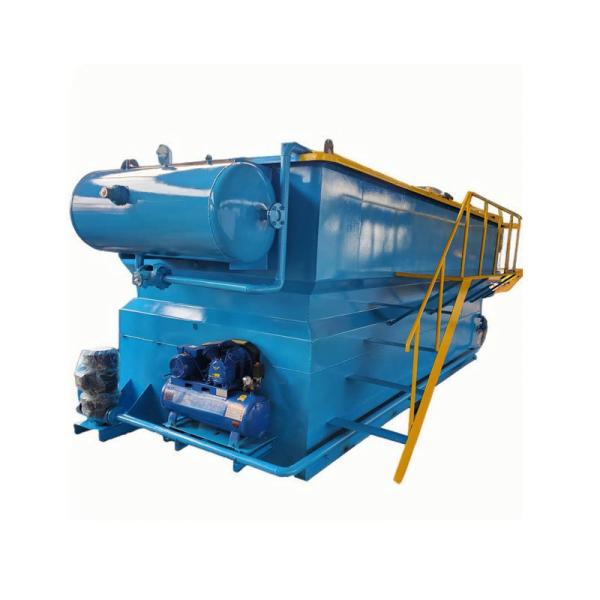

STP Manufacturer's Dissolved Air Flotation (DAF) System Oily Water Purification Machine Equipment for Wastewater Treatment Plant

Specifications

video outgoing-inspection :

Provided

machinery test report :

Provided

core components :

PLC, Pump, Pressure vessel, motor

Place of Origin :

Hebei, China

Brand Name :

HuaYU

warranty :

1 Year

productivity :

10000L/Hour

weight (kg) :

28000

Processing Type :

filtration

Dimension(L*W*H) :

10000*3200*2100mm

Power :

5KW, 10KW, 15KW, 30KW

Voltage :

380V, 220V

Description

Product Description

The dissolved air flotation machine is an efficient and stable water treatment equipment that clarifies wastewater by removing oils, greases or other solid suspended matter. Its process design is to dissolve gas into water to the maximum extent under pressure, striving to be in a supersaturated state, and then release air at atmospheric pressure in the flotation tank. The released air forms a large number of tiny bubbles, which adhere to the suspended matter in the water, causing it to float to the water surface with the bubbles, forming scum, which is then removed by a scraping device.

Working principle

Air flotation separation technology refers to dissolving air into water to the maximum extent under a certain working pressure. The next step is to release the pressure-dissolved air water, thereby generating a large number of fine bubbles, which are fully in contact with the oil and suspended flocs in the wastewater, so that they adhere to the microbubbles and float to the water surface with the bubbles to form scum. The scum is scraped off by the scraping system to achieve the effect of purifying water quality.
Heavy particles flow through the inclined plate settling zone,settling to the bottom of the sediment device,and discharged to the sludge tank through the pipeline,then do subsequent processing,and the Clarified purified water will be discharge by the equipment center tube.

Product Parameters

Our Advantages

Applications

STP Manufacturer's Dissolved Air Flotation (DAF) System Oily Water Purification Machine Equipment for Wastewater Treatment Plant

Name: STP Manufacturers Dissolved Air Flotation DAF System Oily Water Purification Machine Equipment for Wastewater Treatment Plant
Brand: HuaYU
Price: 1 USD

Ask Latest Price

Product Detail

video outgoing-inspection :

Provided

machinery test report :

Provided

core components :

PLC, Pump, Pressure vessel, motor

Place of Origin :

Hebei, China

Brand Name :

HuaYU

warranty :

1 Year

Contact Supplier

Hebei Huayu Environmental Engineering Co., Ltd.

Verified Supplier

1 Years

Main Products :

RO Reverse Osmosis System, UF Ultrafiltration System, NF Nanofiltration System

Certification Level :

Verified Supplier

Discover similar products

Integrated Dissolved Air Flotation Machine for Food Wastewater Treatment and

Contact Now
New Type Industrial Effluent DAF Flotation Machine Water Treatment Machinery

Contact Now
Dissolveds Air Flotation Machine for Food Wastewater Treatment Solid Liquid

Contact Now
Manufacturer STP Wastewater Treatment Plant Daf System Oily Water Purification

Contact Now
Industrie Dissolved Air Flotation Machine Wastewater Treatment Plant Waste Water

Contact Now
Dissolved Air Flotation Device High Efficiency DAF Oil Wastewater Separation

Contact Now
Combined Dissolved Air Flotation System for Food Wastewater Treatment and Solid

Contact Now
All-in-One DAF Unit for Food Industry Wastewater and Solid-Liquid Separation

Contact Now
Integrated DAF Machine for Treating Food Wastewater and Separating Solids

Contact Now

Find Similar Products By Category:

Supplier Homepage Products Air Flotation Machine

MachineU China Products

Model	Capacity(m²/h)	Size LBH(m)	Operating Weight(T)	Total Power(KW)
HYRQ-5T	3-5	3.5×1×1.9	8.5	5.55
HYRQ-10T	5-10	4.5×1.2×2.1	13.5	5.75
HYRQ-15T	10-15	5×1.5×2.1	17.5	7.8
HYRQ-20T	15-20	5×1.8×2.1	20.5	7.8
HYRQ-30T	20-30	6×2×2.1	27	7.8
HYRQ-40T	30-40	7×2.2×2.1	34	7.8
HYRQ-50T	40-50	7×2.7×2.1	41	10.55
HYRQ-60T	50-60	8×2.8×2.1	48	10.55
HYRQ-70T	60-70	9×3×2.1	58	15.85
HYRQ-80T	70-80	10×3.2×2.1	70	15.85
HYRQ-100T	80-100	10.5×3.6×2.1	80	19.85
HYRQ-150T	120-150	11×3.6×2.5	90	19.85
HYRQ-200T	180-200	12×3.6×2.5	118	28.65
