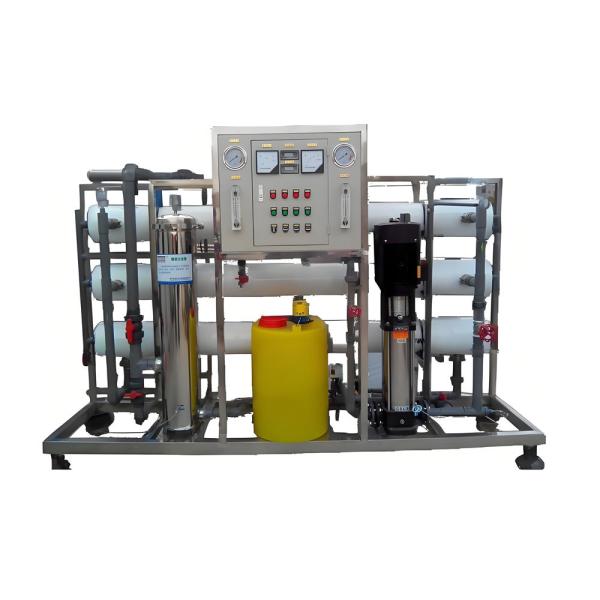

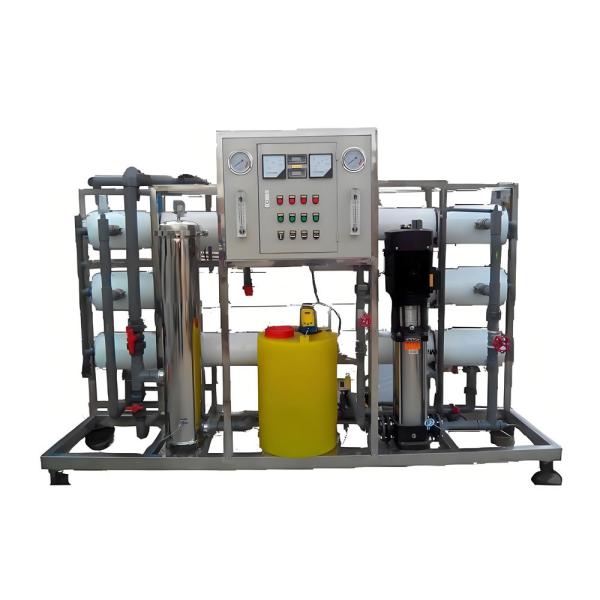

Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Specifications
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC
Place of Origin :
Hebei, China
Brand Name :
HuaYU
warranty :
1 Year
productivity :
1000L/Hour
weight (kg) :
4500
Processing Type :
filtration
Dimension(L*W*H) :
7500mm*1000mm*1950mm
Power :
10KW, 5KW, 3KW
Voltage :
380V
Description

Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant

Product Description

Working principle of reverse osmosis system:

Use a special high-pressure water pump to add 6-20 kg pressure to the raw water, so that the raw water can penetrate the reverse osmosis membrane with a pore size of only 0.0001 micron under the action of pressure. Chemical ions, bacteria, fungi, and viruses cannot pass through and are discharged with wastewater. Only water molecules with a volume of less than 0.0001 micron are allowed to pass through, thereby achieving the purpose of water desalination and purification.

Generally, the conductivity of the first-level reverse osmosis effluent is ≤10μS/CM, and the system desalination rate is ≥99%

Equipment features:

1. The raw water solenoid valve automatically controls the water inlet.

2. The pretreatment can be automatically flushed, and the RO membrane has automatic and manual flushing functions.

3. The high-pressure pump is equipped with high and low pressure protection, and the water tank liquid level control is linked with the water pump.

4. It can be equipped with real-time online monitoring of water quality and sound and light alarms, without the need for special personnel on duty.

Scope of application:

1. Water for ordinary electroplating industry (galvanizing, copper plating, nickel plating, etc.), coating industry, aluminum oxidation

2. Water for electronic power industry, boiler water replenishment.

3. Water for chemical raw material batching, cleaning water, and cleaning machine matching water.

4. Deionized water for textile printing and dyeing.

5. Purified water, direct drinking water, beverage water, etc.

Detailed Images

Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant

Our Advantages

Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Working principle

Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
Product Parameters

Parameters HYHJ-RO-10T
Machine Size(L*W*H) 7500mm*1000mm*1950mm (Can be designed according to the site)
Equipment treatment process Raw water→raw water pump→mechanical filter → activated carbon filter→add scale inhibitor→Precision filter→RO high-pressure pump→ROreverse osmosis membrane element→finished water
Control mode Fully automatic operation Device power AC/380V/50HZ
Unladen weight 4500KG Running weight 9000KG
Raw water pump Q=20m³/H H=30m High pressure pumps Q=20m³/H H=110m
Quartz sand filter φ1500×2300mm Activated carbon filter φ1500×2300mm
Precision filters 15 core 40 inches Precision filter element 40‘’5μm
Scale inhibitor dosing pump Q=2L/H H=50m Scale inhibitor dosing box 40L
Reverse osmosis membrane vessels 1 core 8 inches Reverse osmosis membrane model 8040
Applications

Industrial & Commercial Professional Design Effluent Treatment RO Industrial Filtration Plant Reverse Osmosis Purification Plant
